Hardware
Fan hardware for hanging the fan and airfoils is provided on hardware boards. Verify you have all of the following
required hardware before beginning the installation process.
Mounting Hardware Board
1
Upper Mount Hardware
• (4) 1/2-13 x 2” Bolts
• (8) 1/2” Flat Washers
• (4) 1/2-13 Nylock Nuts
Safety Cable Shackle
Extension Tube Hardware
• (2) 1/2-13 x 4-1/2” Bolts
• (4) 1/2” Flat Washers
• (2) 1/2-13 Nylock Nuts
Lower Yoke Hardware
• (2) 1/2-13 x 4-1/2” Bolts
• (4) 1/2” Flat Washers
• (2) 1/2-13 Nylock Nuts
Motor Unit Hardware
• (4) 1/2-13 x 1-3/4” Bolt
• (8) 1/2” Flat Washer
• (4) 1/2-13 Nylock Nut
Airfoil and Winglet Hardware Boards
Airfoil Hardware
• 5/16-18 x 2’’ GR 8 Bolt
• 5/16” Flat Washer
• 5/16-18 Nylock Nut
Winglet Hardware
• 10-24 x 3/4” Barrel
• 10-24 x 1/2” Bolt
Guy Wire Hardware
2
• Locking Carabiners
• 1/4” Beam Clips
• 1/4-20 x 1” Eyebolts
• 1/4-20 Hex Nuts
• Gripples
• Guy Wires
• Wire Rope Clips
1. Square washers are included and are only used if you are mounting the fan to angle irons. The number of square washers used depends on the number of angle irons used.
2. Guy wires and hardware are only included with your order if the fan’s lateral movement needs to be restrained. Big Ass Fans recommends using guy wires if the extension tube
is four feet or longer, or if the fan is exposed to high winds or similar conditions, or if the fan is near building structural components.

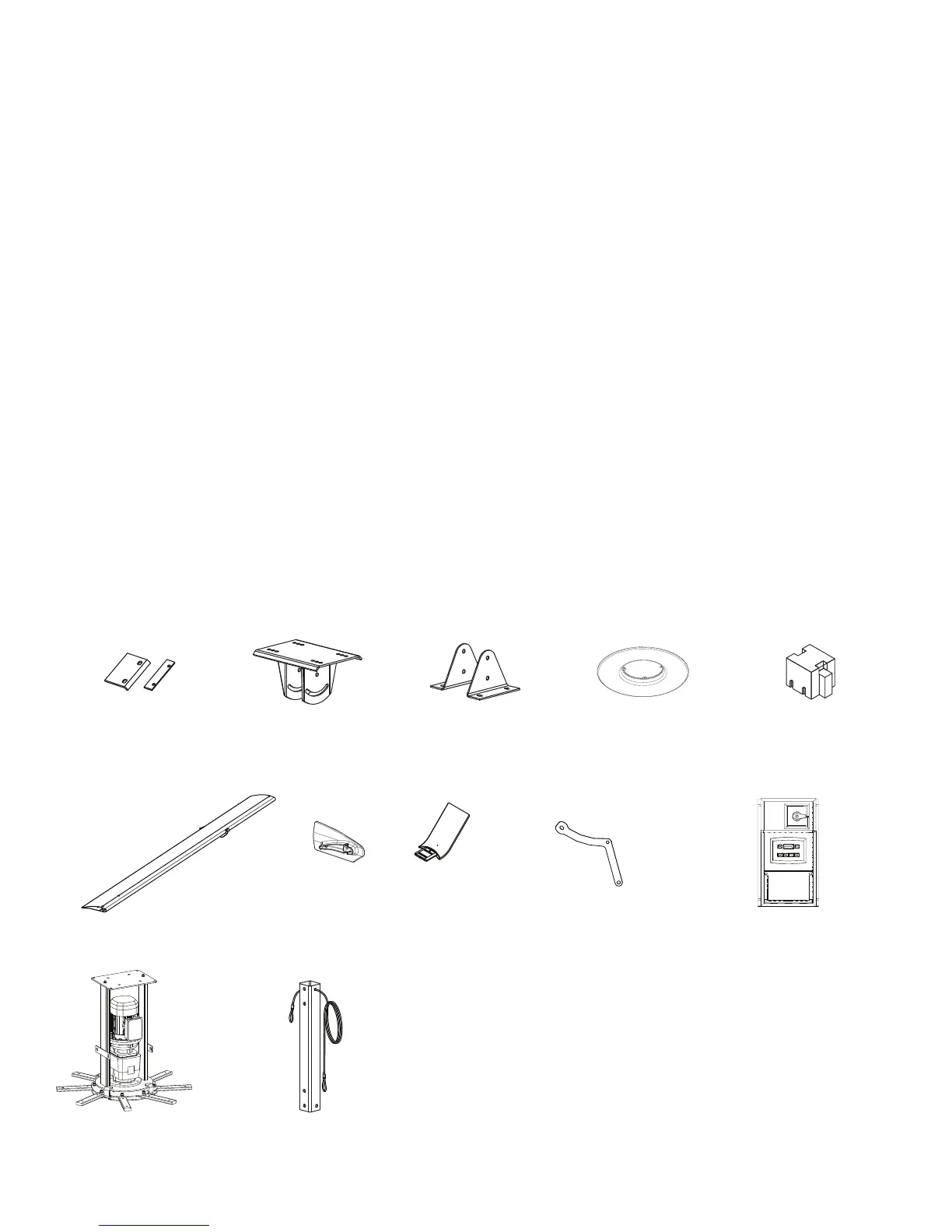

Parts
Check that the fan boxes have all the parts before beginning installation. If you ordered multiple fans, be sure
to keep the components of each fan together. The fans each have dierently rated components that are not
interchangeable. Note: Illustrations are not to scale.
(2) Beam Clip
(2) Spacer
Upper Mount
1
Lower Yoke Hub Cover
2
EPM Module &
Fire Relay
3
OR
Airfoils
4
Winglets
5
Airfoil Retainers Wall Controller
Main Fan Unit
1. The upper mount may dier from the picture. Confirm that you have the appropriate mount
for your roof pitch.
2. Powerfoil 8 and Powerfoil 8 Plus only.
3. The fire relay is not shown. If multiple fans are to be installed, make sure to install the exact
EPM included with the fan’s packaging. EPMs are not interchangeable!
4. An AirFence™ is installed on the midsection of each airfoil if you have a Powerfoil 8 fan. Check
each airfoil to ensure the AirFence is properly secured. Basic 6 fans do not include AirFences.
5. Powerfoil winglets are standard. Powerfoil Plus winglets are only available with Powerfoil
8Plus fans if ordered.
6. The safety cable is preattached to the extension tube (or packaged separately if the extension
tube was not ordered).
Extension Tube
6
