10-4 BL-E30-0515 - 03-01-2018
10-1.16.Emergency Disconnect Installation.
1. Position emergency disconnect (17, Figure 10-1)
on bracket (6) and secure with two screws (23).
2. Install the knob on the emergency disconnect (17)
3. Reconnect harness (1, Figure 10-2) to emergency
disconnect (17, Figure 10-1).
4. Install upper compartment covers as described in
paragraph 5-2.
5. Turn on the key switch (20, Figure 12-18) and
emergency disconnect (17).

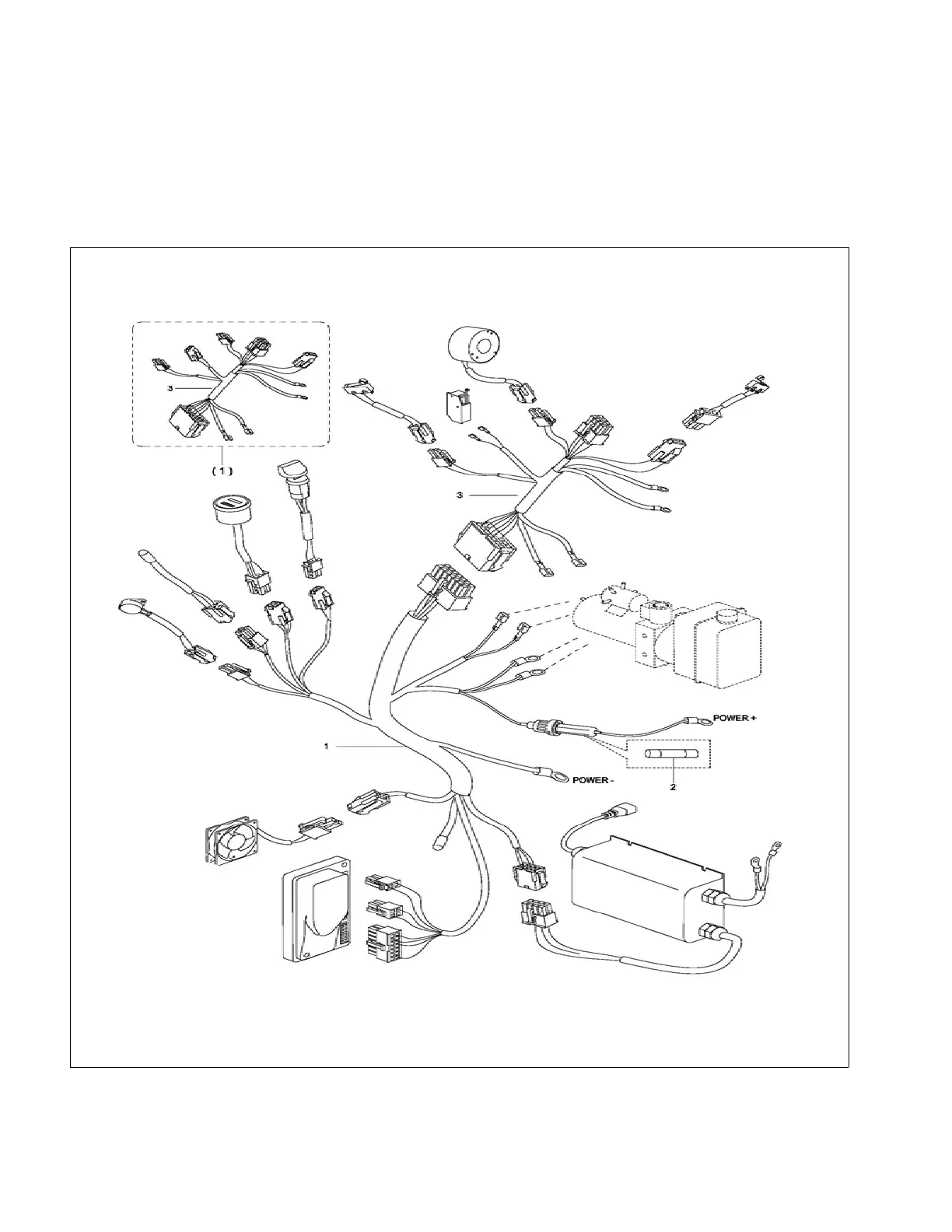

Figure 10-2 Wiring Harness
