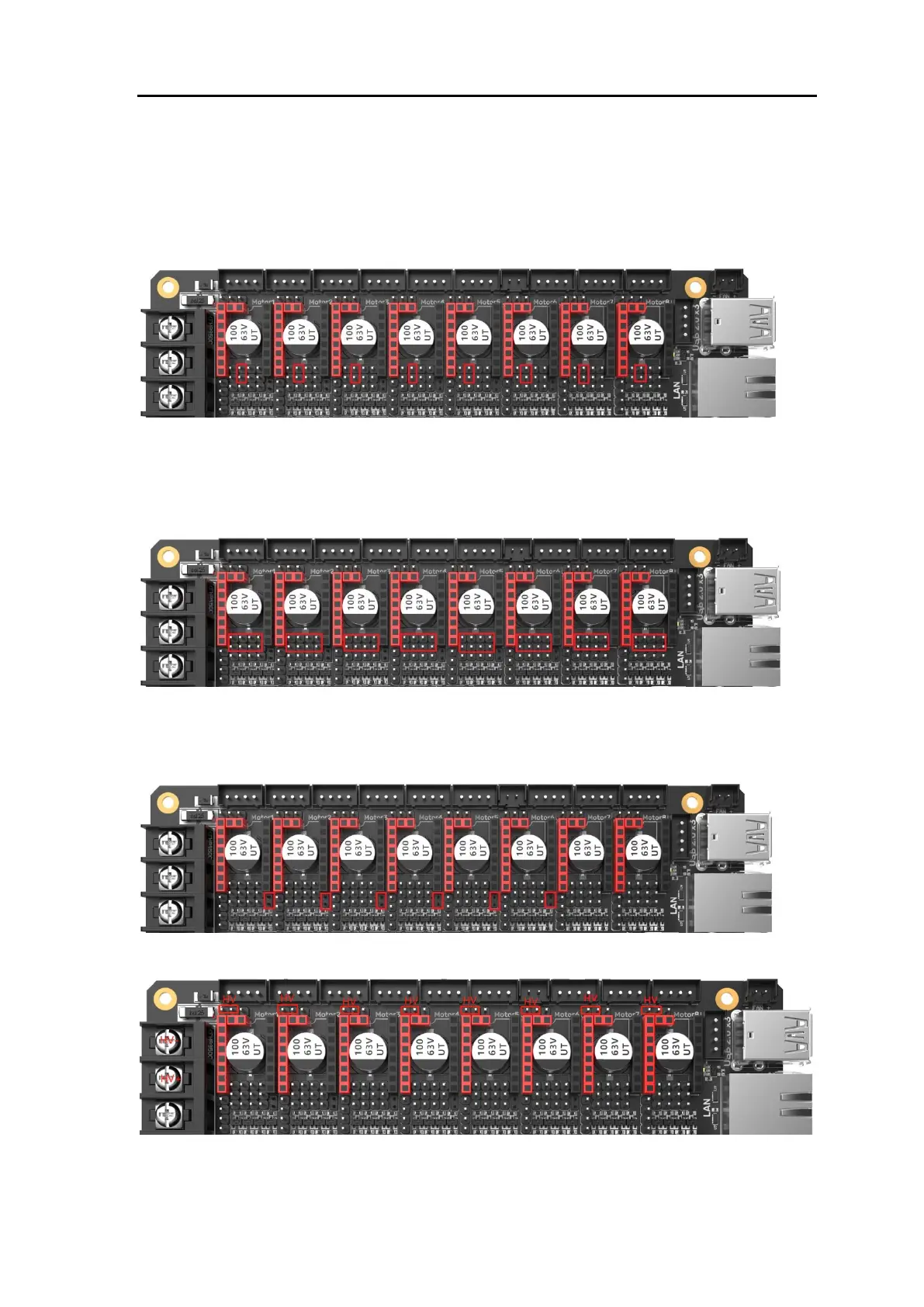

TMC Drivers - UART Mode
For TMC2208, TMC2209, TMC2225, etc, short the jumper for each as shown in
the red box. Microsteps and current are configured in firmware.
TMC Drivers - SPI Mode
For example, TMC2130, TMC5160, TMC5161, etc. Each uses four jumpers to
short the red box positions in the diagram. Micro-stepping and drive current are
set through the firmware.
TMC Drivers - DIAG (Sensorless Homing)
For sensorless homing, insert the jumper as shown. Remove when not in use - no
need to cut the DIAG pin of the driver.
