BIGTREETECH Manta M8P V2.0 User Manual
17

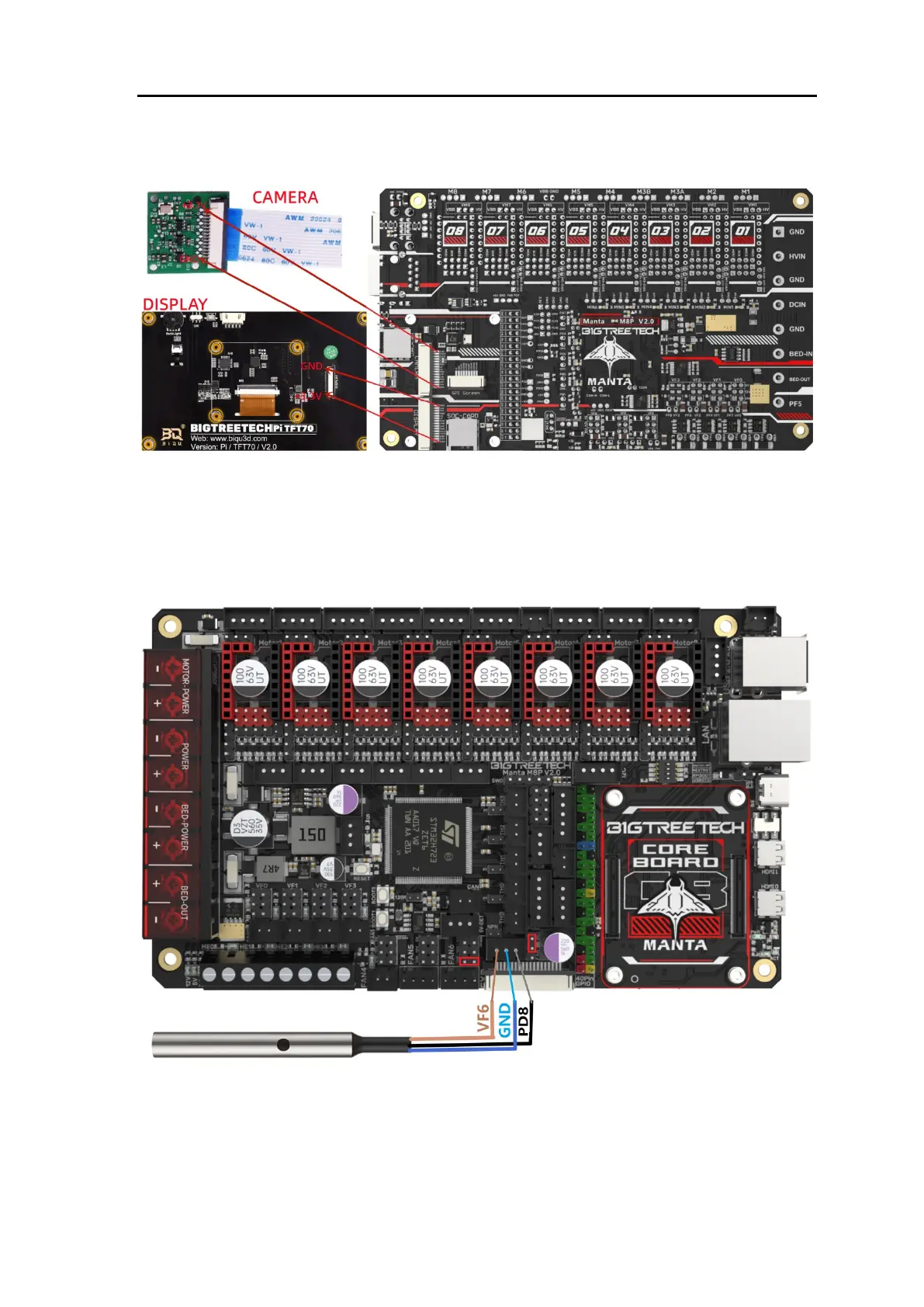

DSI and CSI Connections
Proximity Switch Wiring
Normally open (NPN), no jumper needed, e.g. 24V:
