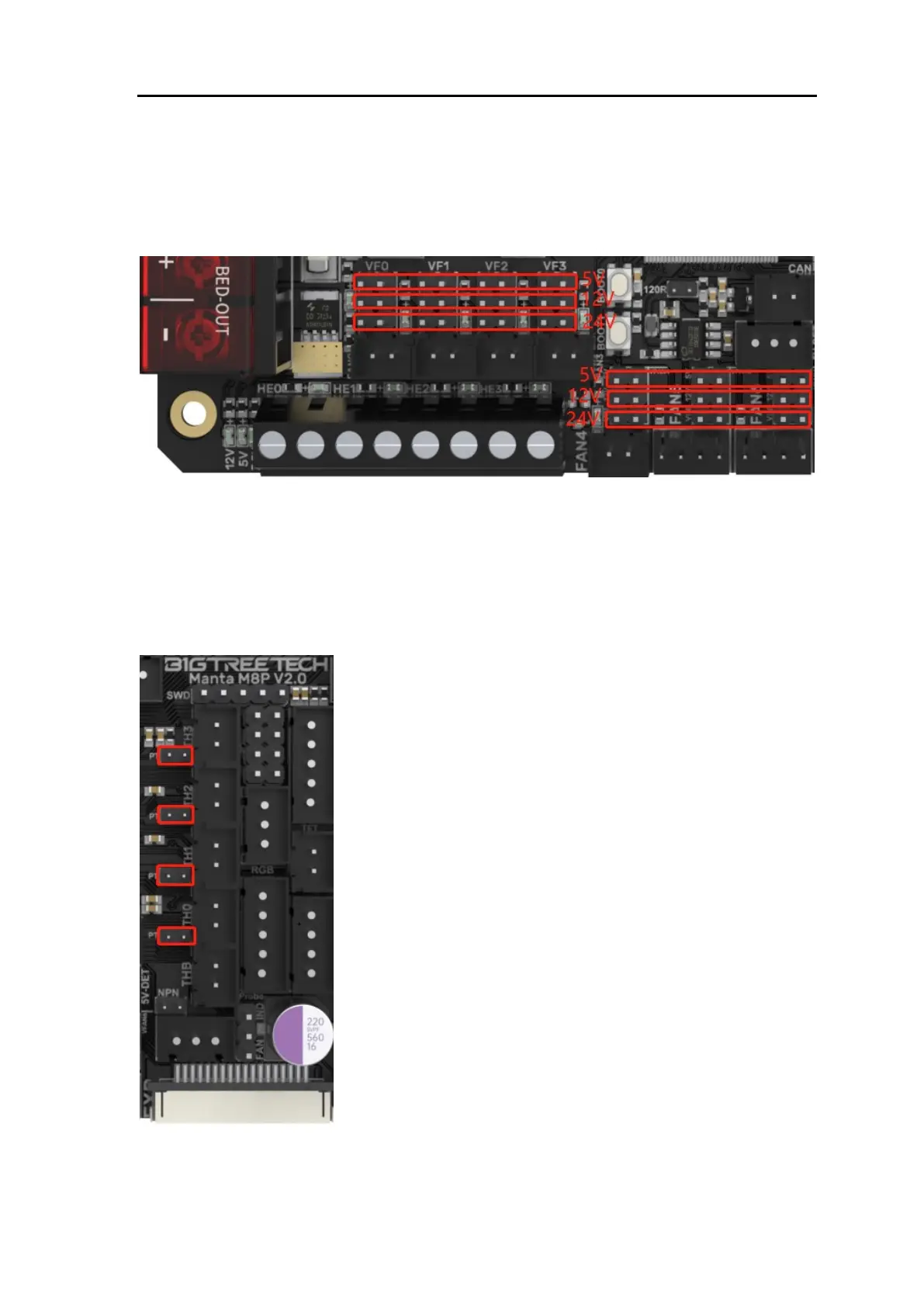

CNC Fan Voltage Selection
Set the output voltage to 5V, 12V, or 24V using jumpers. Note: Before selecting
the voltage, please make sure to confirm the supported voltage of the fan. Our
company is not responsible for fan damage caused by incorrect voltage selection.
100K NTC or PT1000 Settings
For 100K NTC thermistors, no jumper is needed. At this time, the pull-up resistor
of TH0-TH3 is 4.7K 0.1%. For PT1000, short the pins in the red box to add 4.12K
0.1% in parallel, at this time, the pull-up resistor of TH0-TH1 is 2.2K (Note: The
temperature accuracy read using this method will be lower than MAX31865.)
To Next Page
