2.4 Connections at the rear of the unit
(10) (11) (12) (13) (14) (15) (16) (9)

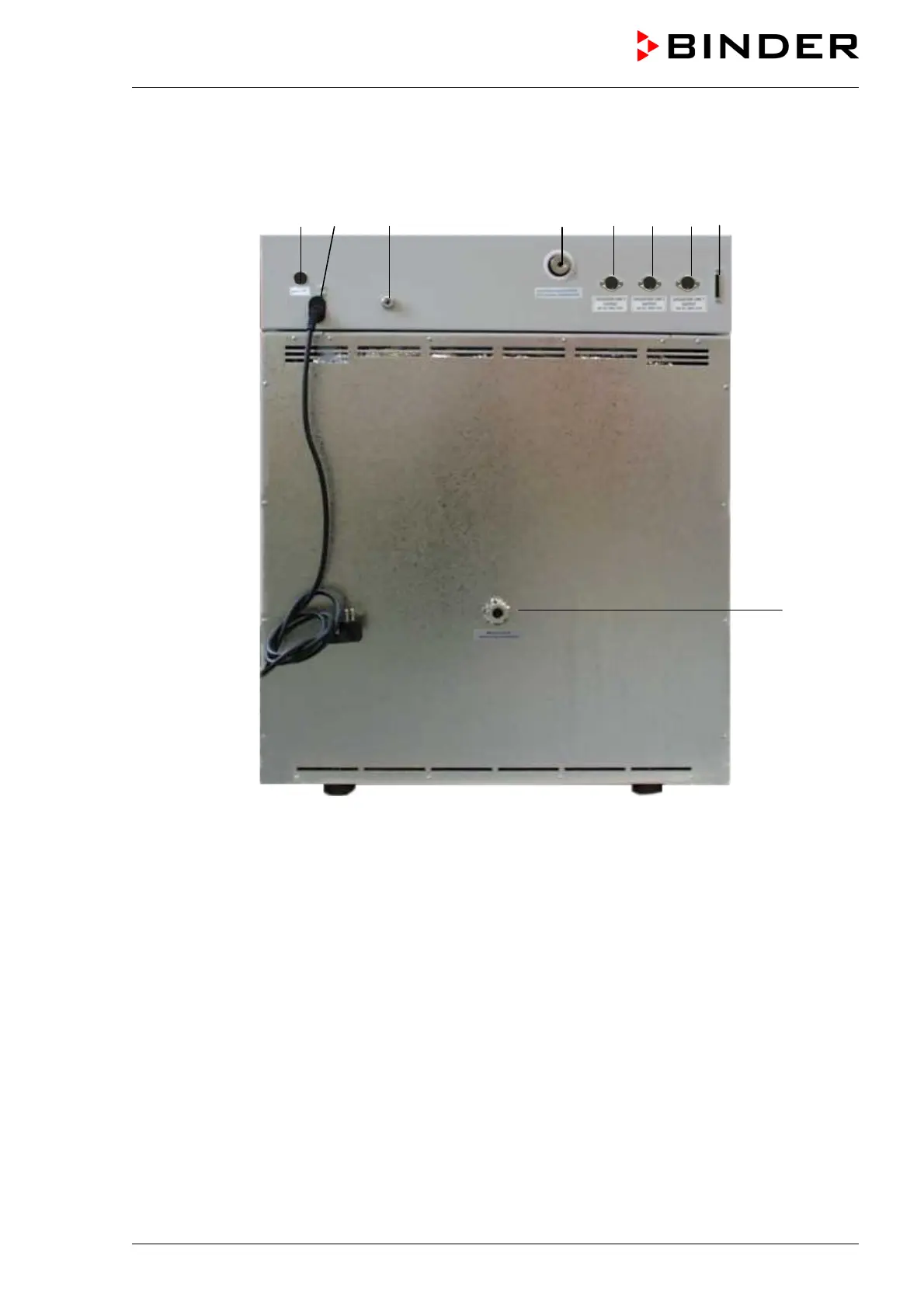

Figure 7: Rear of VD
(9) RS 422 serial interface for computer communication
(10) Miniature fuse
(11) Power connection line
(12) Inert gas connection, adapter with hose olive ∅ 8 mm / 0.31 in
(VD23: also simultaneous fresh air connection)
(13) Vacuum connection with small flange DN16
(14) DIN socket (option) for option “object temperature display”
(15) DIN socket (operation line 2) (option) for option “program controlled venting”
(16) DIN socket (operation line 1) (option) for option “vacuum module with pump”
(17) Measuring connection with small flange DN16
(17)
