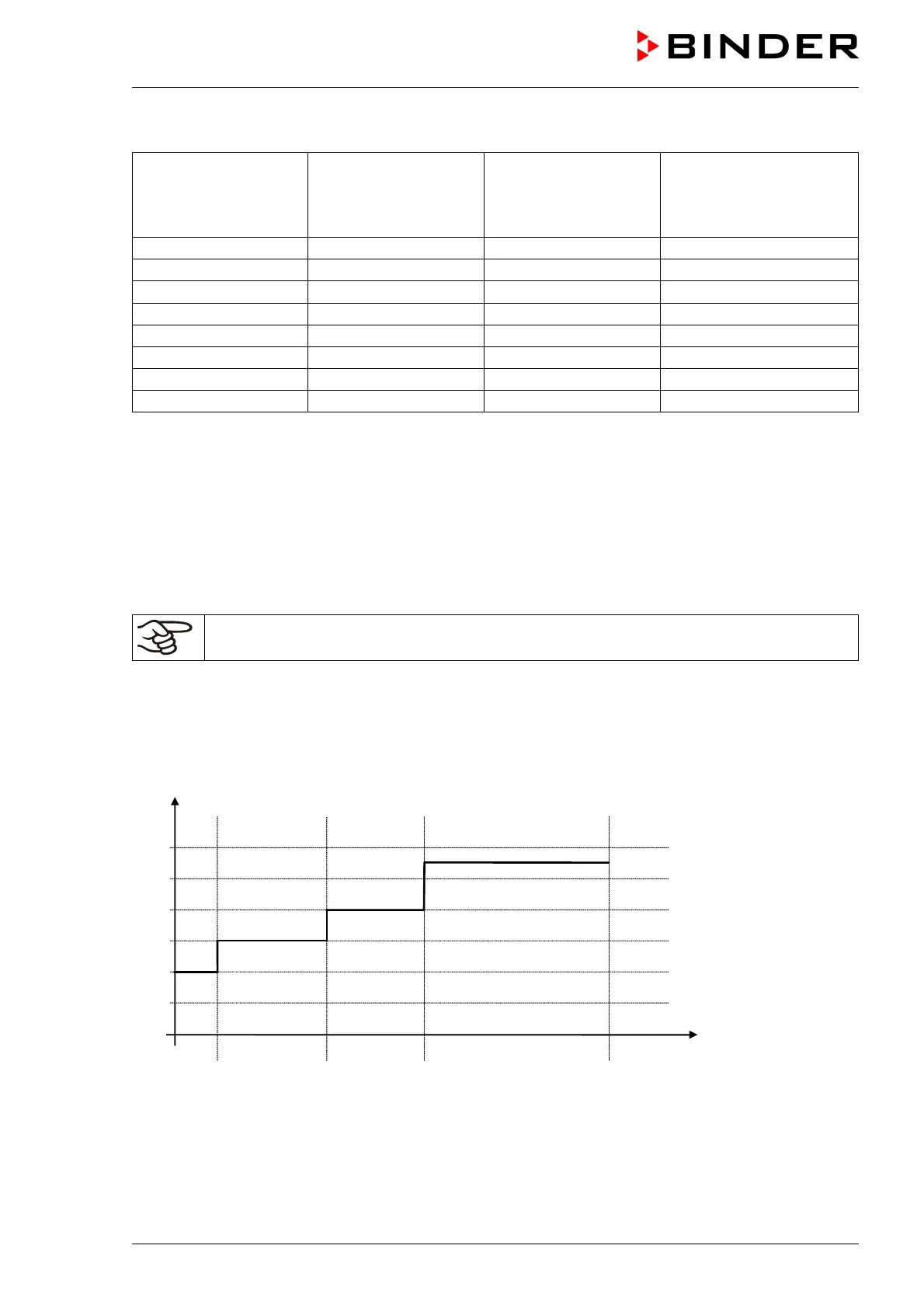

Program table corresponding to the diagram (with default setting “Ramp”):
Section
SEC
Temperature
set-point
[ °C]
TEMP
Section length
[hh.mm]
TIME
Operation lines
O.LINE
S01 40 00:30 000
S02 40 00:01 000
S03 60 01:30 000
S04 60 00:01 000
S05 80 01:00 000
S06 80 00:01 000
S07 20 03:20 000
S08 20 00:01 000
You can now enter the values of such a program table to the RD3 program controller (chap. 8.2).
Program the end point of the desired cycle with an additional section (in our examples S05 for set-point
ramp and S08 for set-point step) with a section time of at least one minute. Otherwise, the program will
stop one section too early because the program line is incomplete.
8.1.2 Programming with setting “step”
With setting “Step” selected, you don’t need to program the transition section in the Program Editor.
With setting “step” the controller will equilibrate only to constant temperatures; programming
ramps is no longer possible.
The set-points are maintained constant for the duration of a program section. At the start of each program
section, the unit heats up with the maximum speed in order to attain the entered set-point
Program entry as set-point step (example):
W/°C
t/min.
S01 S03 S05 S07
0
20
40
60
80
100
30 120 180 380
