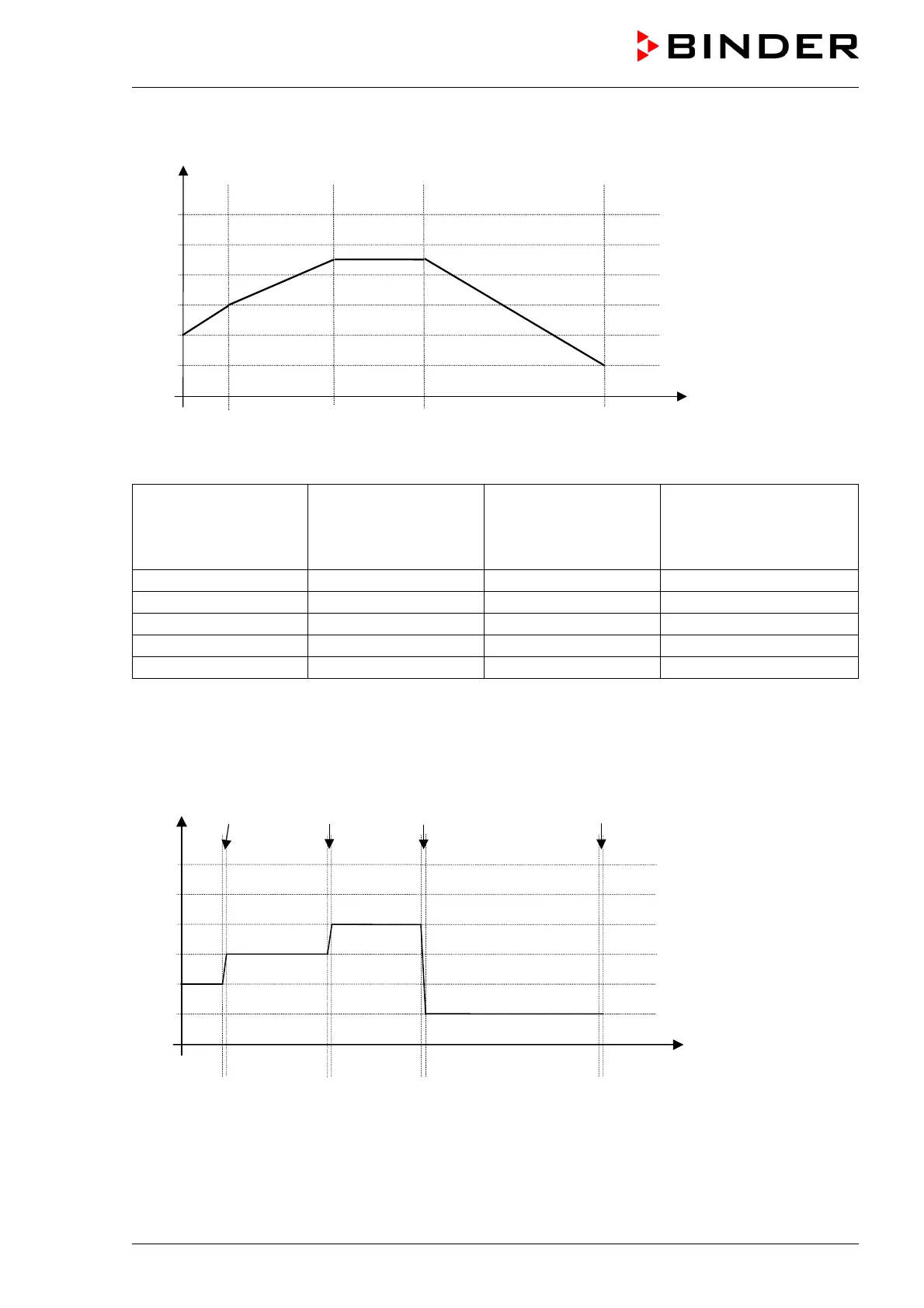

Program entry as set-point ramp (example):
W/°C
t/min.
S01 S02 S03 S04
0
20
40
60
80
100
30 120 180 380
S05
Program table corresponding to the diagram (with default setting “Ramp”):
Section
SEC
Temperature
set-point
[ °C]
TEMP
Section length
[hh.mm]
TIME
Operation lines
O.LINE
S01 40 00:30 000
S02 60 01:30 000
S03 90 01:00 000
S04 90 03:20 000
S05 20 00:01 000
You can now enter the values of such a program table to the RD3 program controller (chap. 8.2).
Program entry
as set-point step (example):
W/°C
t/min.
S01 S02 S03 S04 S05 S06 S07 S08
0
20
40
60
80
100
30 120 180 380
