VD (E2.1) 10/2011 page 57/83
16. Options
16.1 Connection kit VD (option)
The VD connection kit VD (Art. no. 8012-0146)
consists of:
• Aluminum straining ring DN10/16
• Outer centering ring DN10/16
• Small flange with hose tulles DN16/8
• 2.5 m / 98.4 in caoutchouc hose 6/12 mm
• 2 hose clamps

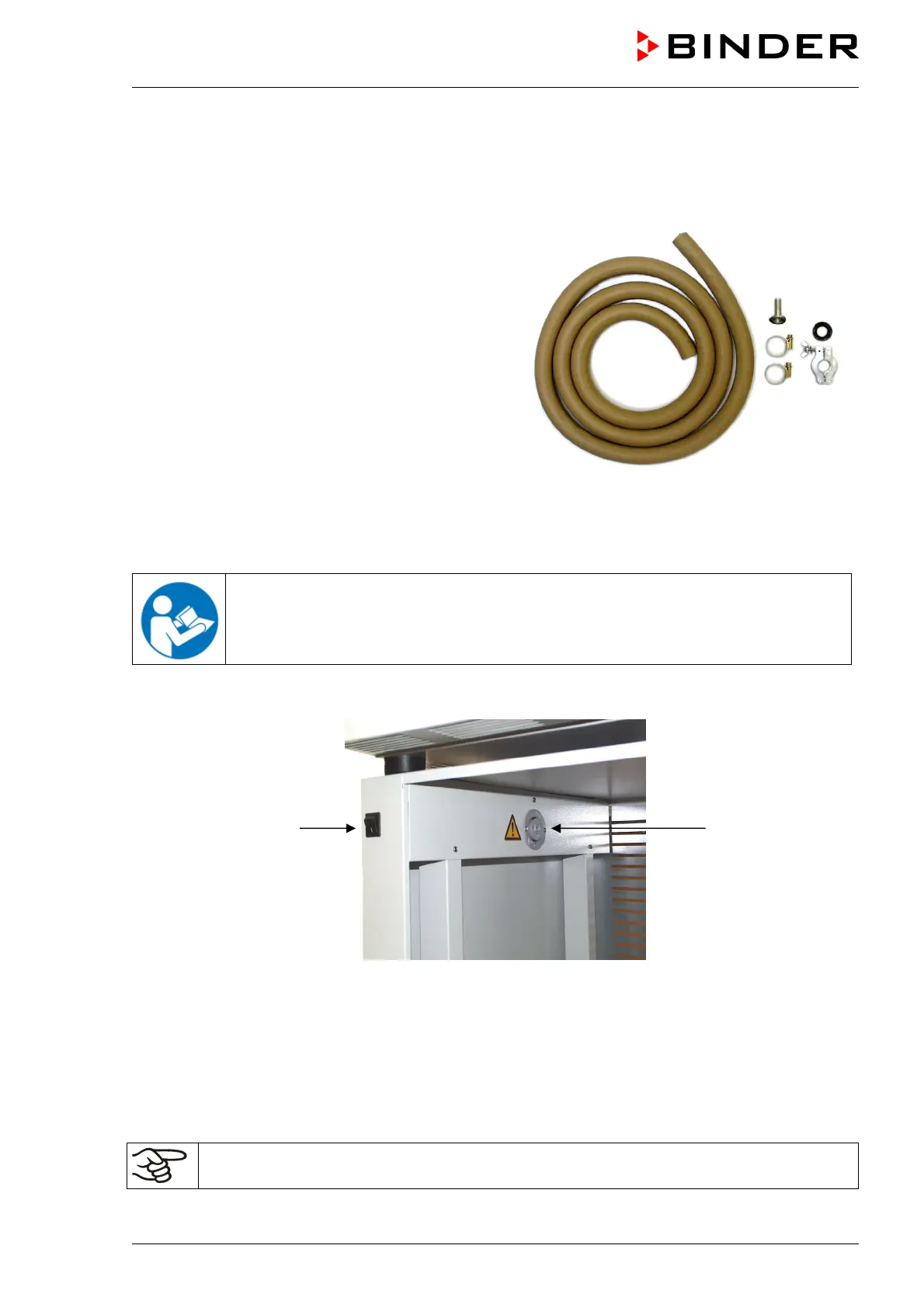

Figure 17: VD connection kit VD
16.2 Vacuum module empty (without pump) (option)
The mounting instructions Art. no. 7001-0137 supplied with the vacuum module describe
how to mount the VD vacuum drying oven onto the vacuum module and installing the
suction line into the vacuum module.
A switch (18) is located at the front of the vacuum module for switching a vacuum pump via the socket
(19) permanently fitted in the vacuum module.
Figure 18: Vacuum module with the switch and socket for the vacuum pump
(18) Switch for the vacuum pump
(19) Socket for the vacuum pump
Maximum admissible load of the socket:
Standard 230 V / 50 Hz - 16 Amp
CUL-version 120 V / 60 Hz - 13 Amp
With CUL-version, connect only a UL listed vacuum pump with ratings of 120 V AC, 60 Hz,
and less or equal 12 Amp, 0.5 HP.
(19)
(18)
