VD (E2.1) 10/2011 page 58/83
(13)
Connection to a vacuum source
Connect the vacuum connection (13) (small flange DN 16) at the
rear of the unit at the top to a vacuum pump or to a domestic
vacuum system via a vacuum hose or a fixed vacuum pipe.
When using a vacuum hose, we recommend using the BINDER
connection kit VD Art. no. 8012-0146 (chap. 16.1. The module
has an appropriate hose outlet at the back.

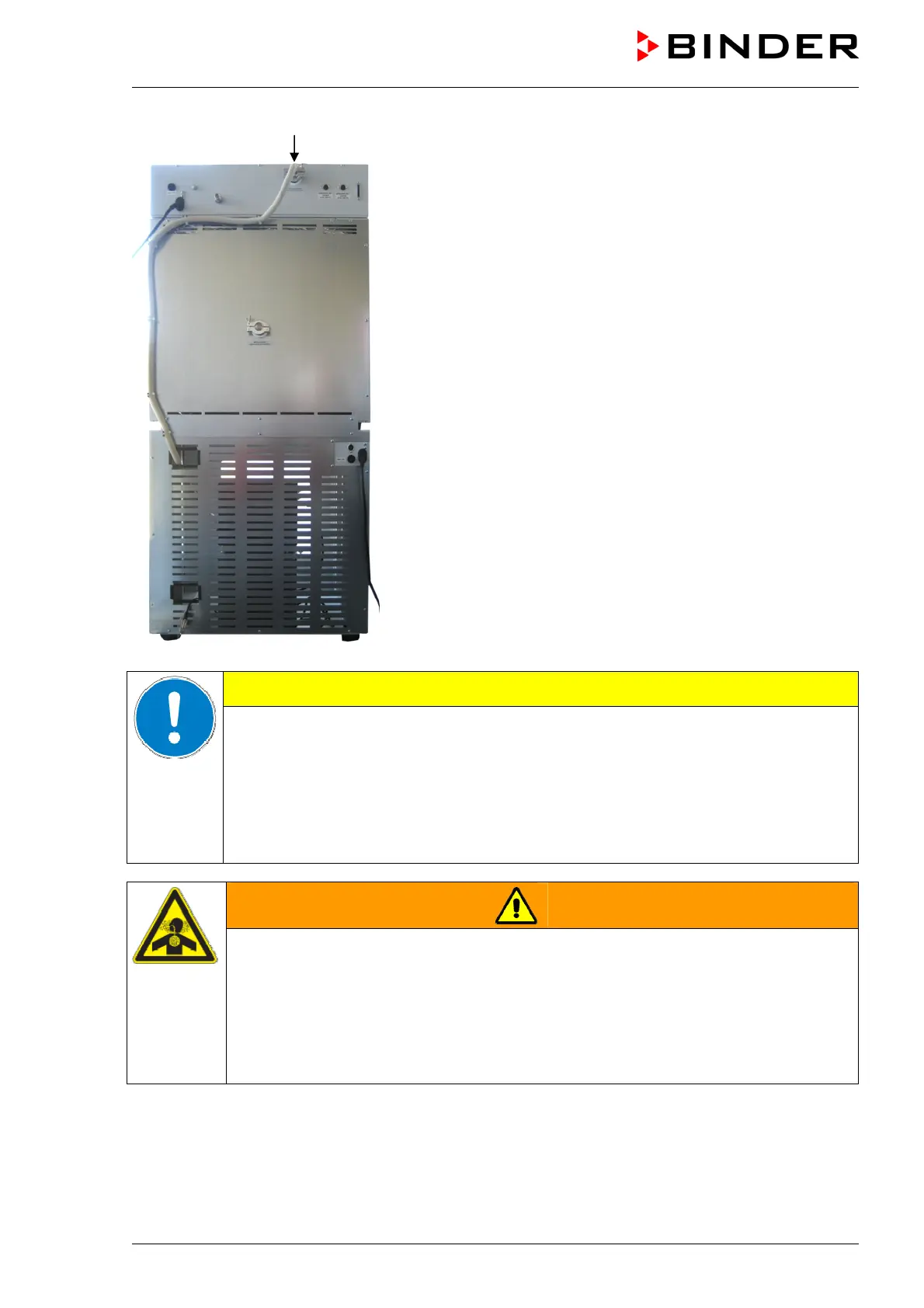

Figure
19: VD 53 with option “Vacuum module”, mounted, and
installed vacuum hose
CAUTION
Technical defects due to excessive negative pressure.
Danger of implosion.
Damage to the unit.
∅ The end vacuum must NOT fall below the permissible level of 10
-2
mbar / 0.0003 inHg.
Install the pump according to the permissible end vacuum or limit the end vacuum via a
vacuum controller.
WARNING
Release of extracted vapors.
Danger of injury.
Damage to oven and pump by corrosion.
Remove the extracted vapors from the module via a suitable hose into e.g., a fume
extractor facility.
Connect the hose to the vacuum pump outlet.
