VD (E2.1) 10/2011 page 23/83
Display 1
Display 2

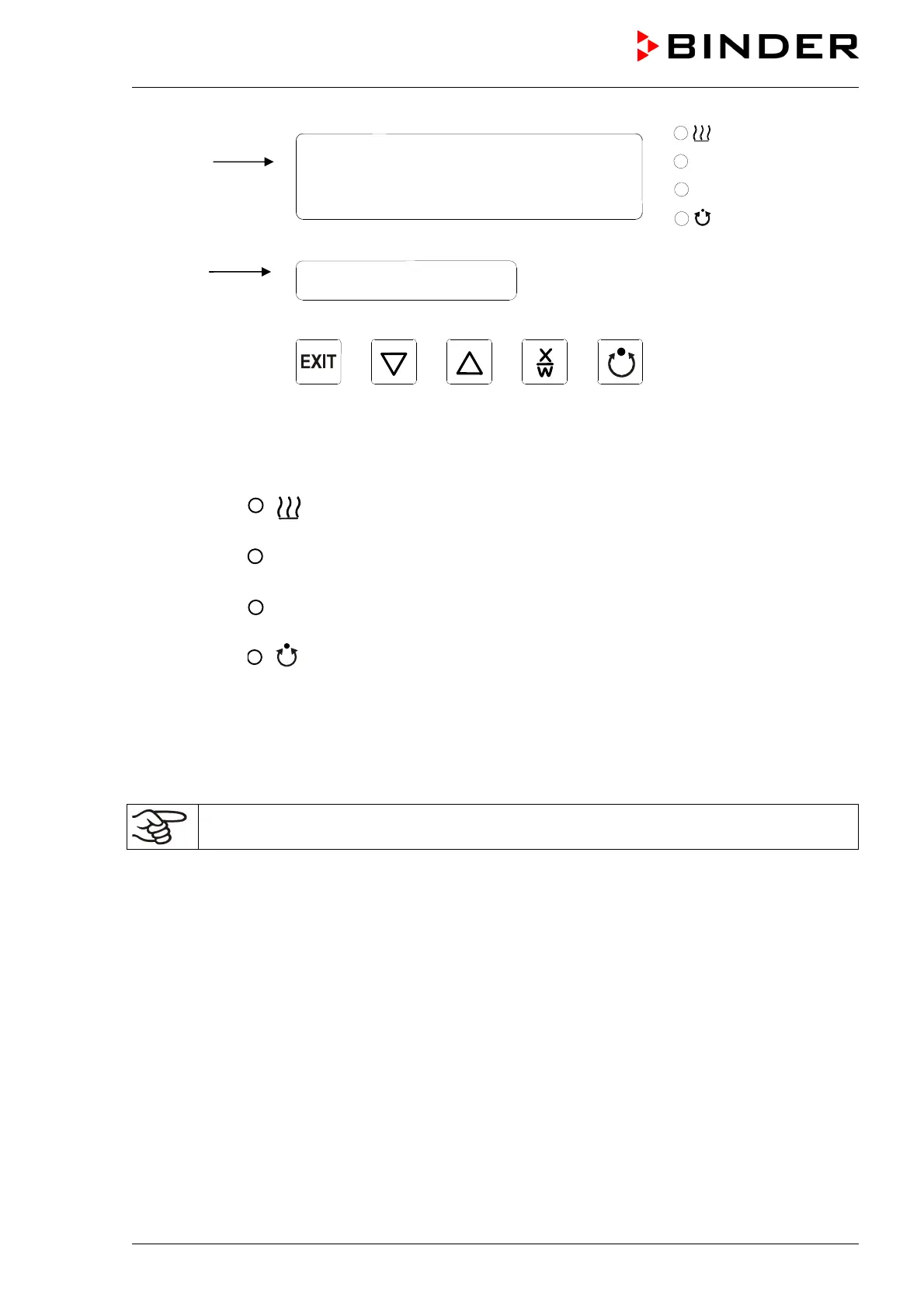

Figure 9: RD3 program controller
LED function indications and their signification:
(7a) (yellow) Heating active
(7b)
(yellow)
Operation line 1 ON
(7c)
(yellow)
Operation line 2 ON
(7d)
(green)
Illuminates: program operation
Flashes: exceeding of the tolerance limits in “Fixed value entry mode” or in
“Program operation”. In program operation: program interruption.
The program controller RD3 permits programming temperature cycles.
You can enter two programs with up to 10 sections each or one program with up to 20 sections (setting in
the user level, chap. 10).
When changing from 2 programs to 1 program or vice-versa, existing programs are deleted.
The maximum length of an individual program section can be set to either 99 h 59 min or to 999 h 59 min
(setting in the user level, chap. 10). This setting is then valid for all program sections.
Programming can be done directly through
the keypad of the controller or graphically through the
software APT-COM™ 3 DataControlSystem (option, chap. 16.8) specially developed by BINDER.
