October152009–InstallationGuideDraft–EditPurposesOnly Page48

Installation Guide – October 2009 – Edit Purposes Only

2009

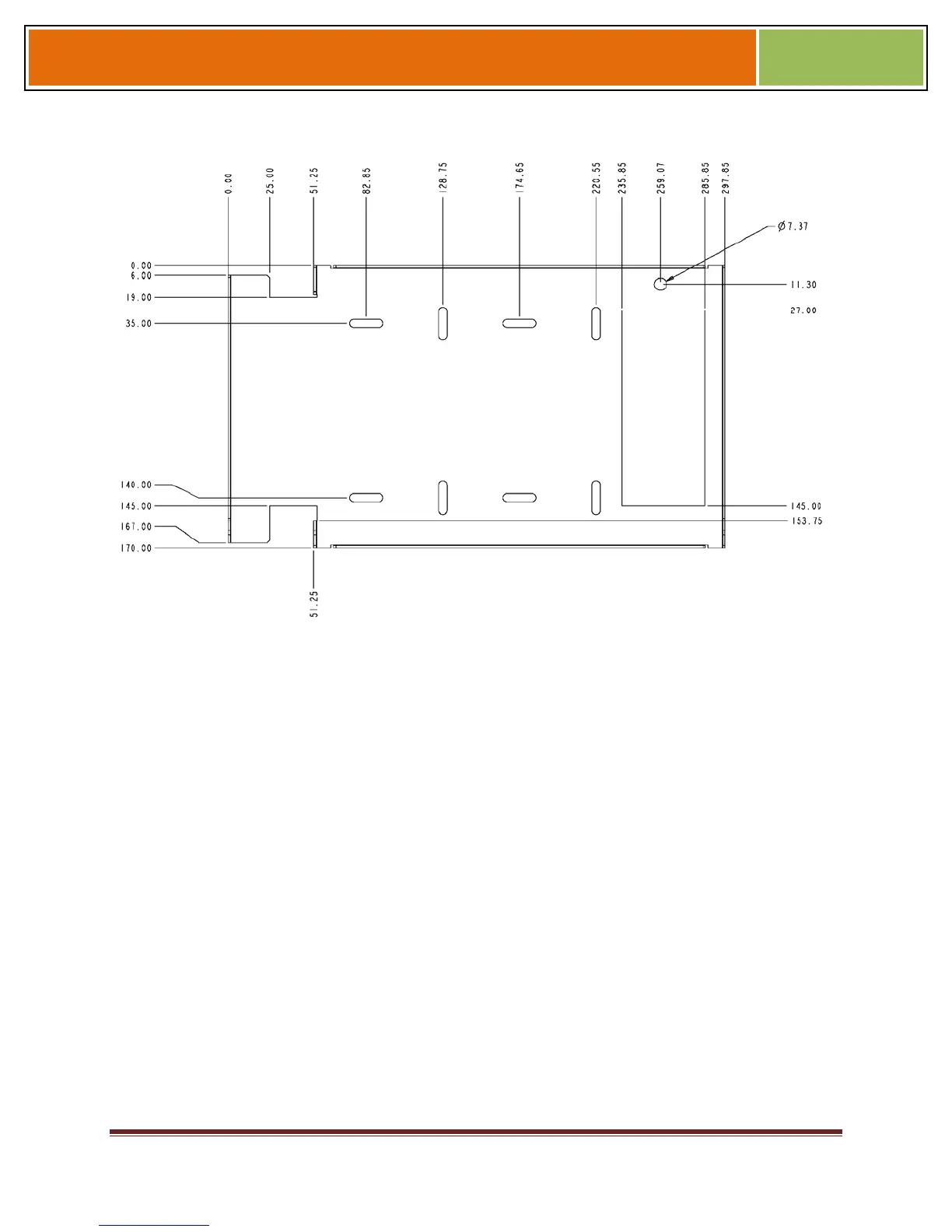

Figure 4-5 4G Extreme PIV/TWIC Mounting Plate

4.1.3 INSTALLATION HARDWARE

4.1.3.1 4G V-Station and V-Flex Indoor devices

Quantity

9 1 Wall mounting plate/mullion mounting plate

9 6 #6-32 3/4" Philips pan-head screw

9 6 #6 1" Philips pan-head self-tapping screws

9 6 #4-8 1" nylon wall anchors

The hardware shown above is provided to mount the mounting plate to the wall and the

V- Station 4G or V-Flex 4G device to the mounting plate.

4.1.3.2 4G Extreme Devices

9 1 Stainless Steel, Wall Mount Plate

9 8 wall mount anchor, conical, for #8 screws

9 6 6-32 Security Screw 1/8" pin-in-hex 3/8" length
