bioscrypt V-Flex 4G - Install Ferrite Core; Location of Aux Port (4 G Extreme); USB Memory Key View

October152009–InstallationGuideDraft–EditPurposesOnly Page58
Installation Guide – October 2009 – Edit Purposes Only
2009

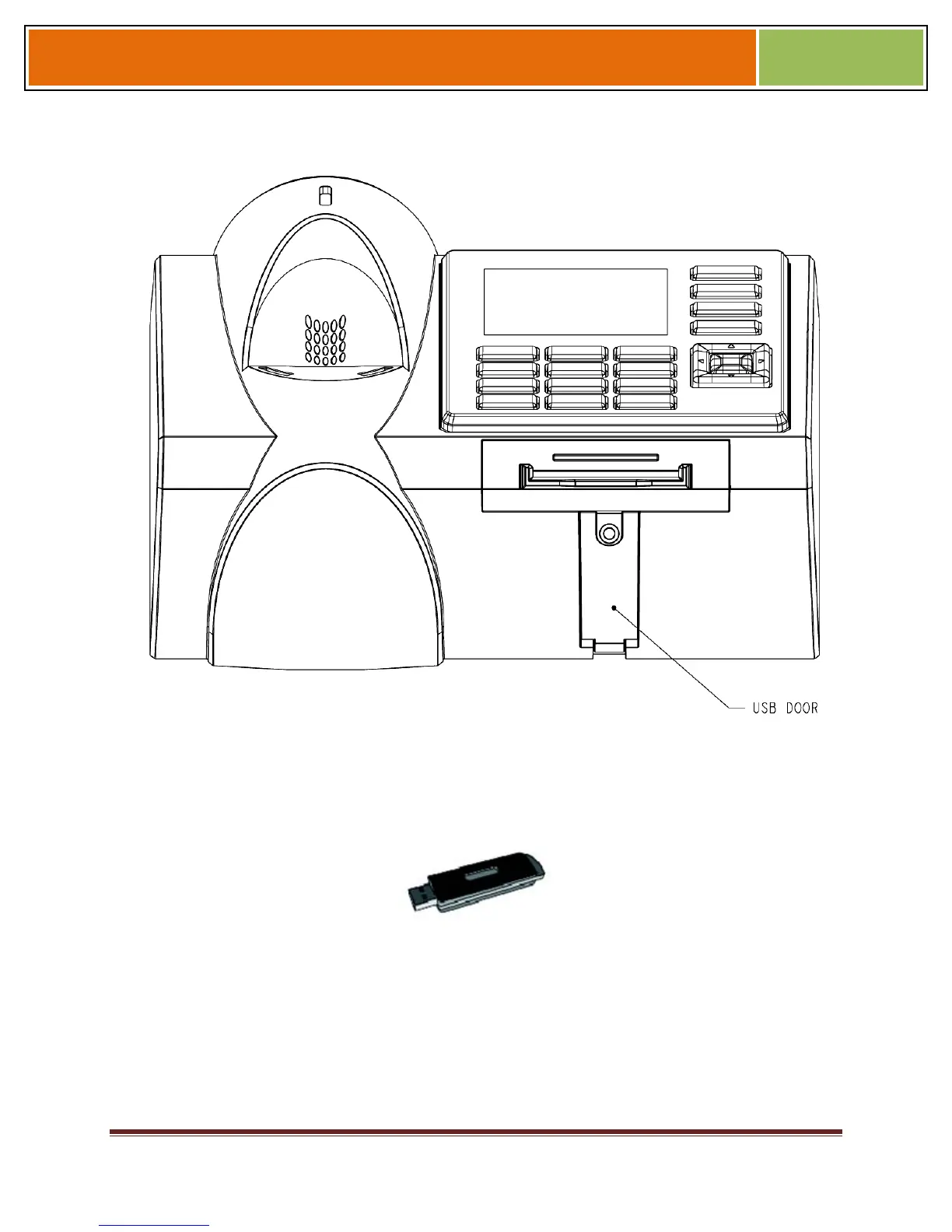

Figure 4-16 Location of Aux Port (4G Extreme)
Figure 4-16 USB Memory Key
4.1.9 INSTALL FERRITE CORE
In order for the V-Station 4G and V-Flex 4G devices to comply with FCC Class B &
CISPR 22 Class B regulations, the installer and/or end user is required to use the
supplied Ferrite Material on the Ethernet, DC, and all I/O cables exiting the rear of the
device. This ferrite material is located within the installation kit that is supplied with each
product.
