October152009–InstallationGuideDraft–EditPurposesOnly Page59

Installation Guide – October 2009 – Edit Purposes Only

2009

Ethernet Ferrite P/N: STEWARD 28A2432-0A2 DC & I/O Lines P/N: STEWARD

28A4155-0A2

Install the ferrite cores as close to the device as possible.

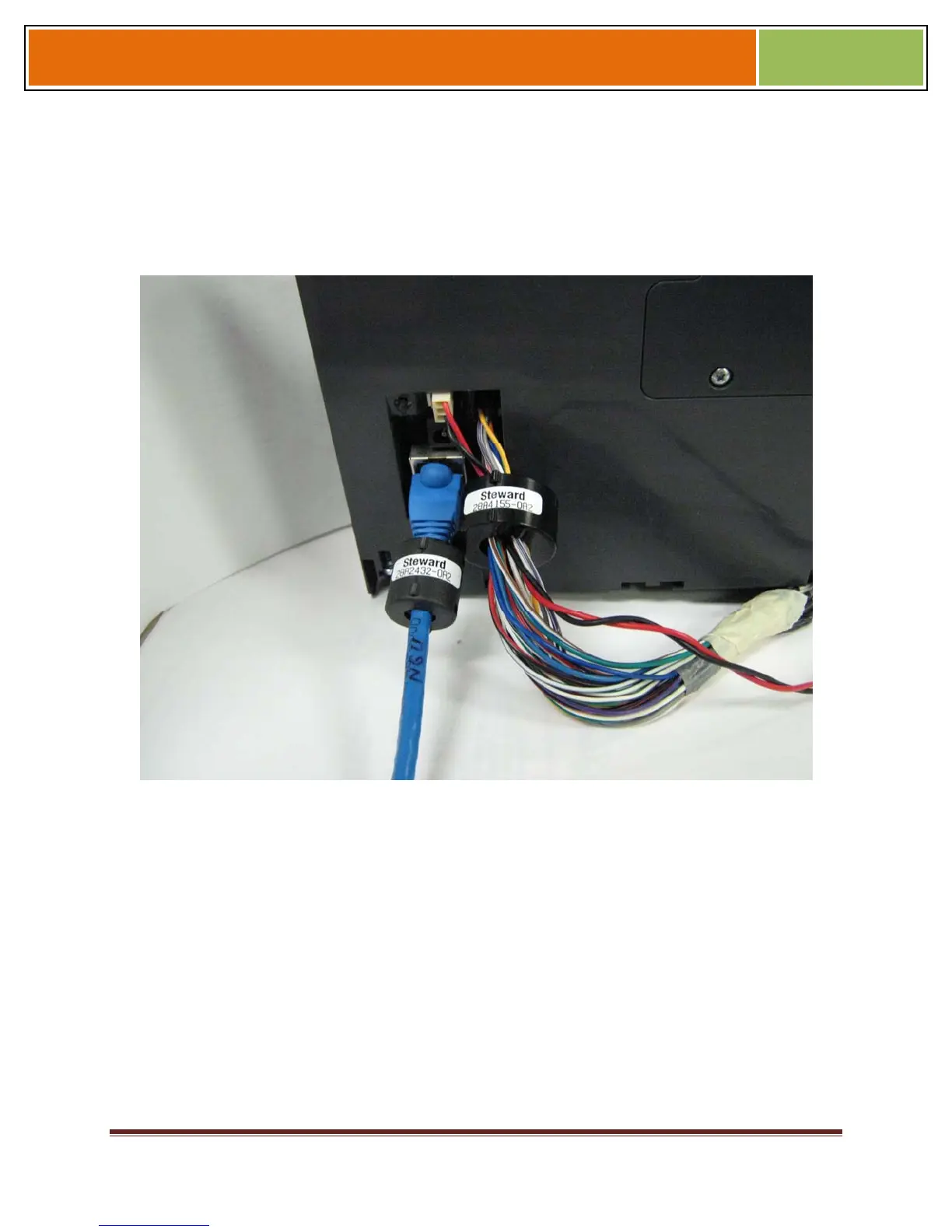

Figure 4-18 Installation of Ferrite Cores
