Operating instructions iS10 / iS20 Technical data
38019417000 en 103
13
13
Technical data
13.1 Dimensions

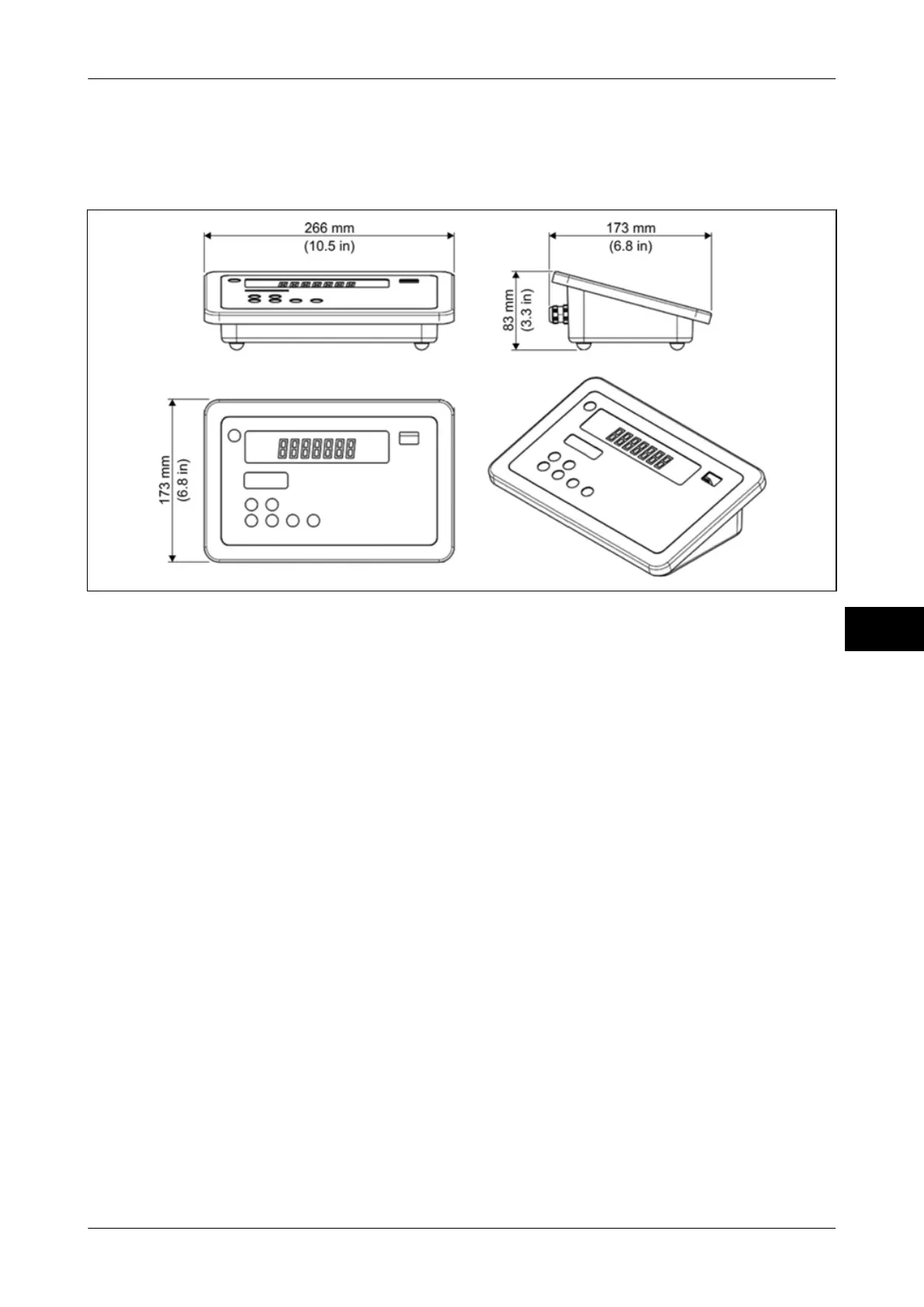

Fig. 25: Dimensions
13.2 Housing
Version: Stainless steel
Housing versions: Remote, table top display, stand, wall mounting
13.3 Display and operating unit
Keyboard: Membrane keyboard
Display: LCD display; 154 x 35 mm; monochrome display
13.4 Surrounding temperature range
Operation: -10°C up to +40°C
Storage: -20°C up to +60°C
13.5
Power supply
Supply voltage: Default:
100 – 240 V AC, 50 – 60 Hz, 0.4 – 0.2 A
Optional batter pack:
220 – 240 V AC, 50 – 60 Hz, 0.2 A
100 – 120 V AC, 50 – 60 Hz, 0.4 A
Battery pack (optional): 10.8 V / 4.4 Ah (operating time: 20 h)
Device fuse: T 1.6 A
