Bizerba iS10 - Connect Power Cable

Operating instructions iS10 / iS20 Installation
38019417000 en 21
4
4.4.1 Connect power cable
DANGER Electrical voltage on the plug-in connector with mains plug inser-
ted!
Danger to life due to electrical shock.
– Do not apply voltage to or separate removable power cable.

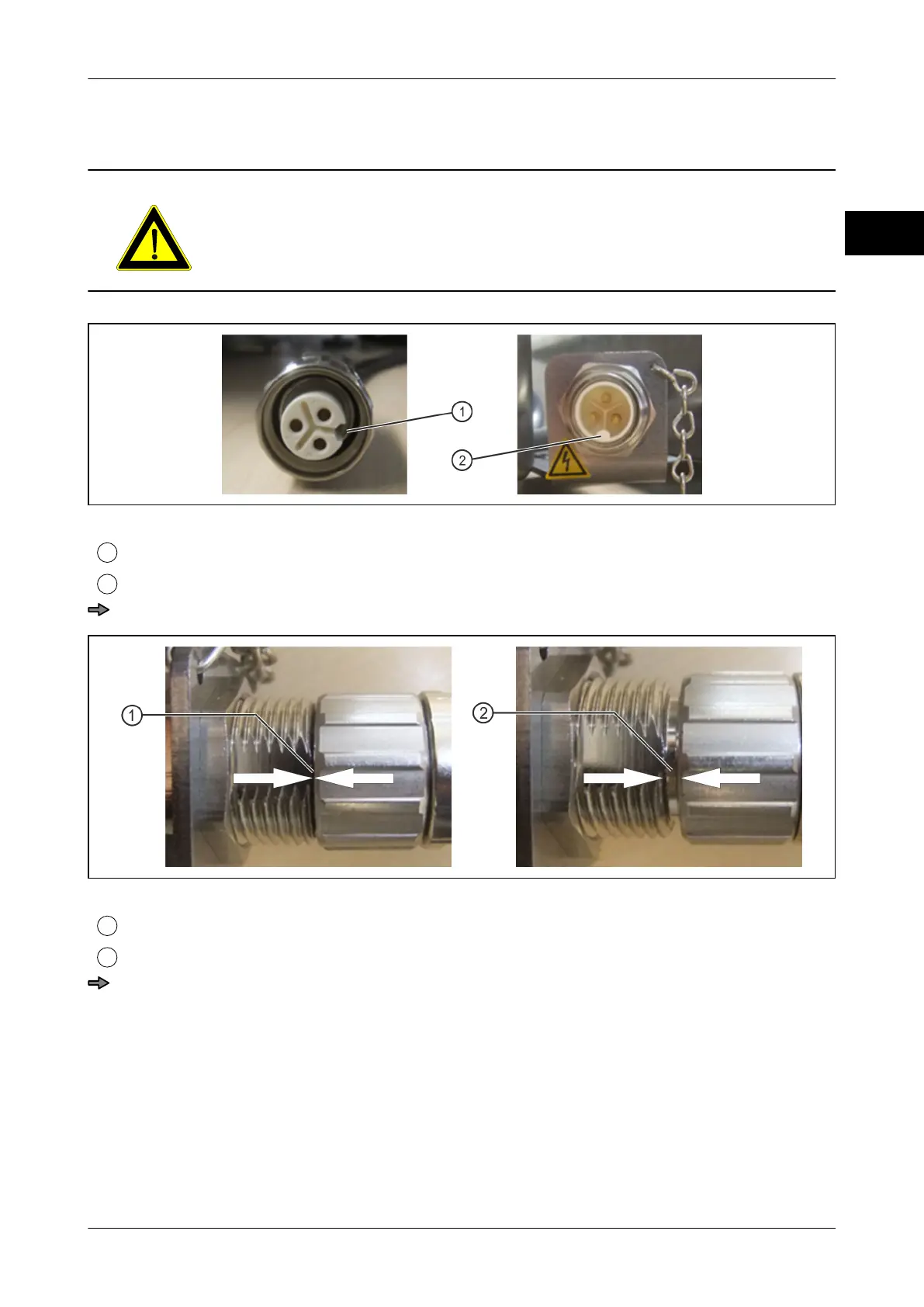

Fig. 9: Cable plug-in connector
1
Coding of cable plug-in connector
2
Coding of device plug-in connector
Attach cable plug-in connector to device plug-in connector according to coding.
Fig. 10: Screw connection
1
Secure screw connection
2
Unsecure screw connection
Firmly screw together screw connection between cable plug-in connector and device
plug-in connector.
In order to ensure a secure connection there must be no gap between the connecting
pieces.
