Operating instructions iS10 / iS20 Installation
38019417000 en 19
4
WARNING Risk of explosion due to incorrect lithium ion battery pack!
This may result in serious injuries and damage to property.
– Always use the prescribed battery type for the lithium ion battery
pack.
– Please follow manufacturer's instructions when disposing of used
batteries.
4.4 Removable power cable (optional)
The option "Removable power cable" has not been approved and can-
not be ordered for devices with UL approval.
Devices with battery pack will be supplied with a removable power cable. In order for the
screwable plug-in connection to comply with the specified IP protection type of the termi-
nal, the following requirements must be met:
– In battery operation the protective cap must be firmly screwed to the device plug-in
connector.
– In mains operation the cable plug-in connector must be firmly screwed to the device
plug-in connector.
Removable power cables must not be damaged on both ends of the
plug-in connections. Both ends of the plug-in connections must be con-
nected according to the coding.
Device plug-in connector (housing variant: table top display)
The device plug-in connector for the power
cable is located on the right side of the de-
vice between housing and load receptor.

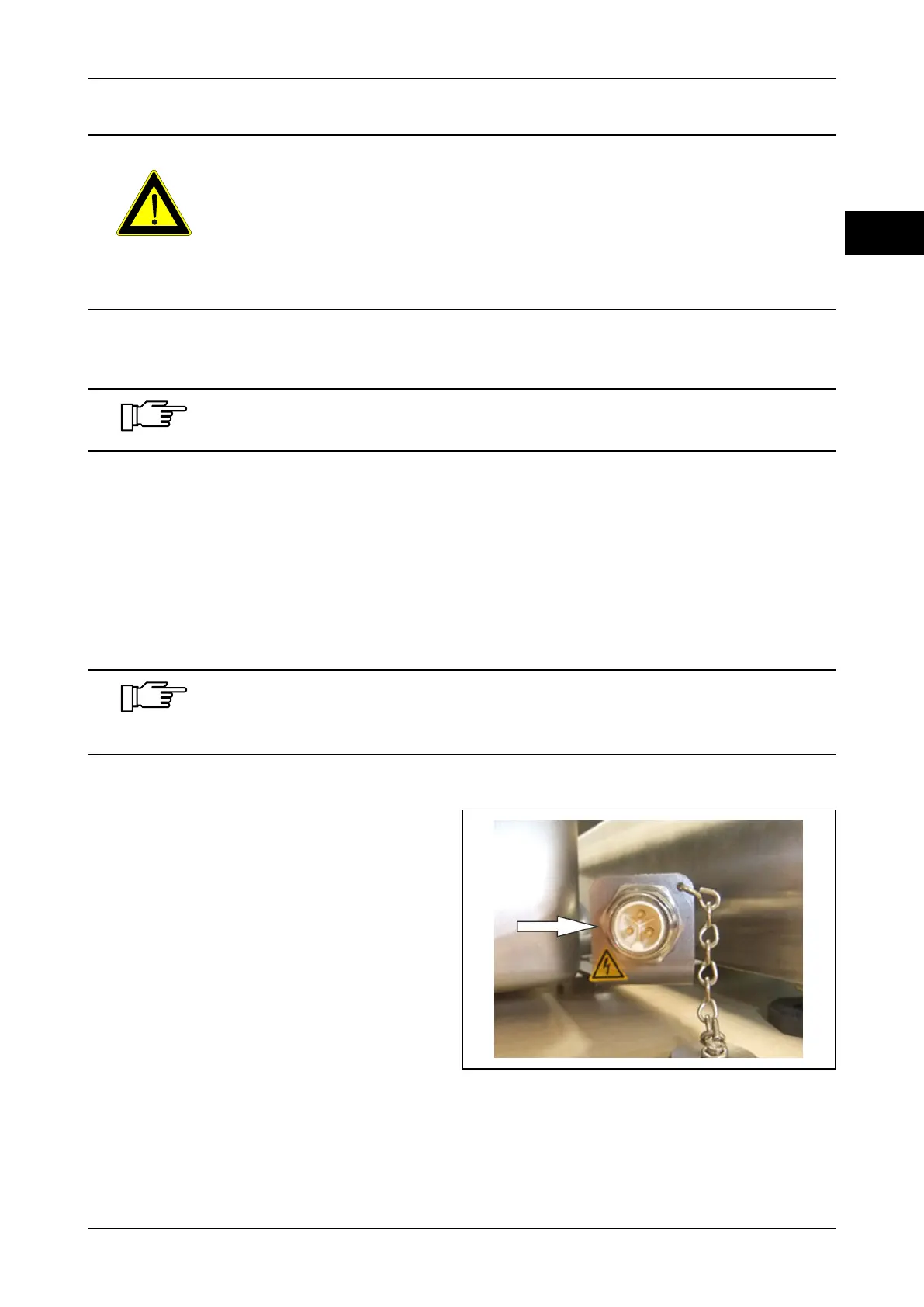

Fig. 6: Device plug-in connector
