Operation
Operating instructions iS10 / iS20
48
38019417000 en
5

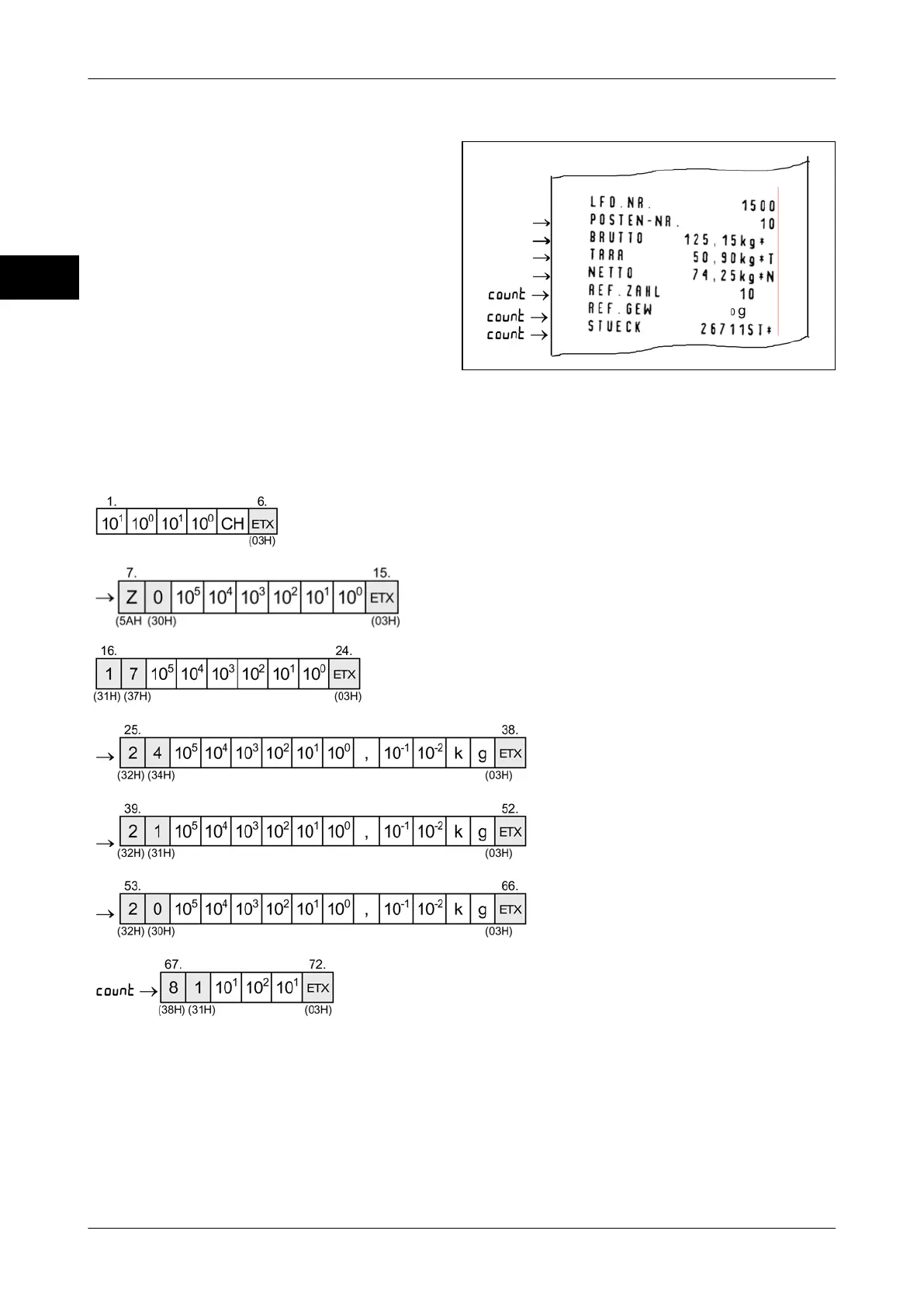

Print image CITIZEN or EPSON or compatible
Maximum possible data.
Fig. 15: print image
Data record with data groups
Maximum possible data.
Data record head
Consecutive num-
ber
Item counter with
counting as from 1
Gross weight
Tare weight
Net weight
Reference number
49
51
Table of Contents
Default Chapter
3
Table of Contents
3
About These Instructions
7
Content
7
Safe-Keeping
7
Target Group
7
Symbols Used
7
How Notes and Information Are Depicted
7
Explanation of Warnings
8
About the Device
9
Device Types
9
Scope of Delivery
9
Device View
9
Device Configuration
9
Identification Plates
11
Position of Identification Plates
12
Intended Use
12
Protective Mark Locations
12
Markings and Labels
12
Safety Plaques
12
Sight Window for Internal Safety Mark
13
Verification-Related Notes
13
Metrologically Approved Data Storage
14
Regulations of Approval for Weighing Data Memory
14
Operating Conditions
14
Software
15
Load Receptor (Optional)
15
Warranty
15
Different Warranty Conditions for Products Acquired at the Bizerba on
16
Line Shop
16
Disposal/Environmental Protection
16
Safety Instructions
17
Requirements for Operating Personnel
17
Supply Circuit Disconnect
17
Removable Power Cable (Optional)
17
System-Related Sources of Hazards
18
Mains Supply
18
Installation
19
Transport and Storage
19
Check the Electric Connection
19
Battery (Option)
20
Removable Power Cable (Optional)
21
Connect Power Cable
23
Operation
24
Display and Operating Field
24
Switch Device on / Reset
26
Switching Device off
26
Function Assignment of Key F1
27
Functions of Menu Key F2
28
Change the Tens Digit for Input of Numbers
29
Display Metrological Data
29
Call up Logbook
32
Call up Metrologically Approved Data Storage
33
Call up Tendency Control
35
Working with Tendency Control
37
Enter Target Value and Tolerance Limits
38
Battery Pack Operation (Optional)
40
Weighing Operation
41
Weight Display
41
Zero Setting of Scale
41
Net Weighing with Tare Balance
42
Deleting Tare
42
Counting Operation
42
Weight Display with Increased Resolution (Not Metrologically Approved)
44
Total Display
45
Net Weighing with Fixed Tare Value
45
Display Tare Value
46
Display Gross Weight
46
Display Supply / Battery Voltage
46
Display Tendency Control
47
Recording Operation
47
Item Recording, Adding
47
Total Recording
49
PC/EDP and Printer Interface
52
PC/EDP Interface
52
PC/EDP Standard Dialog
52
PC/EDP - Continuous Sending of Data
57
PC/EDP Interface Parameters
58
Printer Interface
63
Printer Interface Parameters
63
IXNET Dialogs
68
The Dialog Frame of the Transport Protocol
68
Data Dialog IXNET Interface
69
Device Functions
70
Ethernet Interface
77
Performance of Ethernet Interface
77
Ethernet Interface Parameters
77
Service Menu
80
General Parameters
80
Scale Parameter
85
Scale Calibration Menu
93
Switch Settings of Hardware Seal
95
Hardware Seal Settings
95
Examples of Operating Procedures
96
Weighing, Recording, Totaling
96
Counting, Recording, Totaling
98
Troubleshooting
100
Periodic Faults
100
Bring-In Service
100
Fault Descriptions
101
Maintenance
103
Cleaning
103
Display and Operating Unit
103
Stainless Steel Surfaces
103
Technical Data
105
Dimensions
105
Housing
105
Display and Operating Unit
105
Surrounding Temperature Range
105
Power Supply
105
Protection Class
106
Interfaces
106
Parallel Inputs and Outputs
106
Connections
107
Appendix
108
CE Declaration of Conformity
108
5
Based on 1 rating
