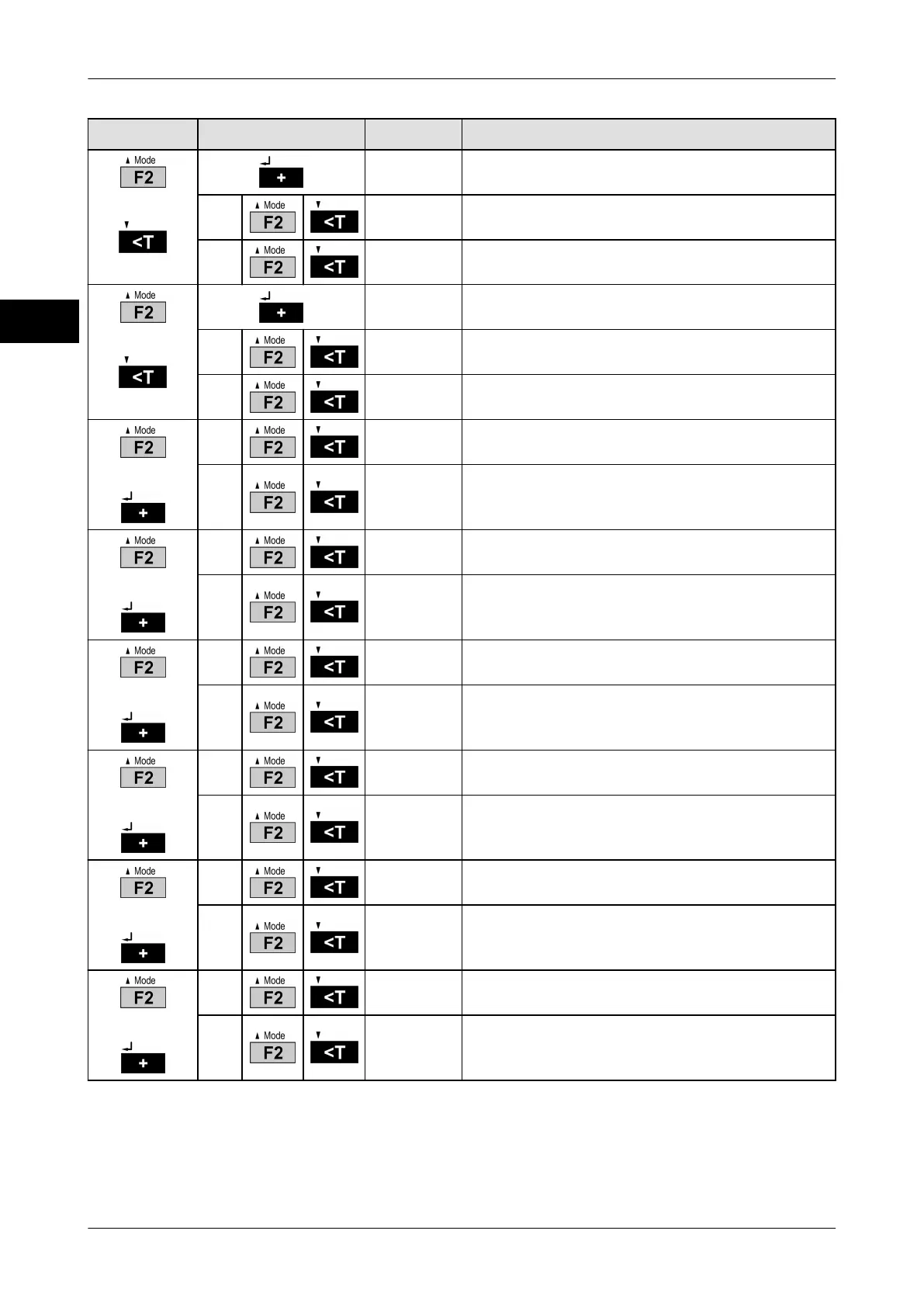

PC/EDP and printer interface
Operating instructions iS10 / iS20
58
38019417000 en
6
Selection
Subselection
Display
Explanation
or
76 0
Data set header
76 0
off
76 1
on
or
77
Item recording +
59 0
Consecutive number off
59 1
Consecutive number on
or
91 0
Item counter off (counting as from 1)
91 1
Item counter on (counting as from 1)
or
53 0
Gross weight off
53 1
Gross weight on
or
52 0
Tare weight off
52 1
Tare weight on
or
51 0
Net weight off
51 1
Net weight on
or
65 0
Reference number off
65 1
Reference number on
or
64 0
Reference weight off
64 1
Reference weight on
59
61
