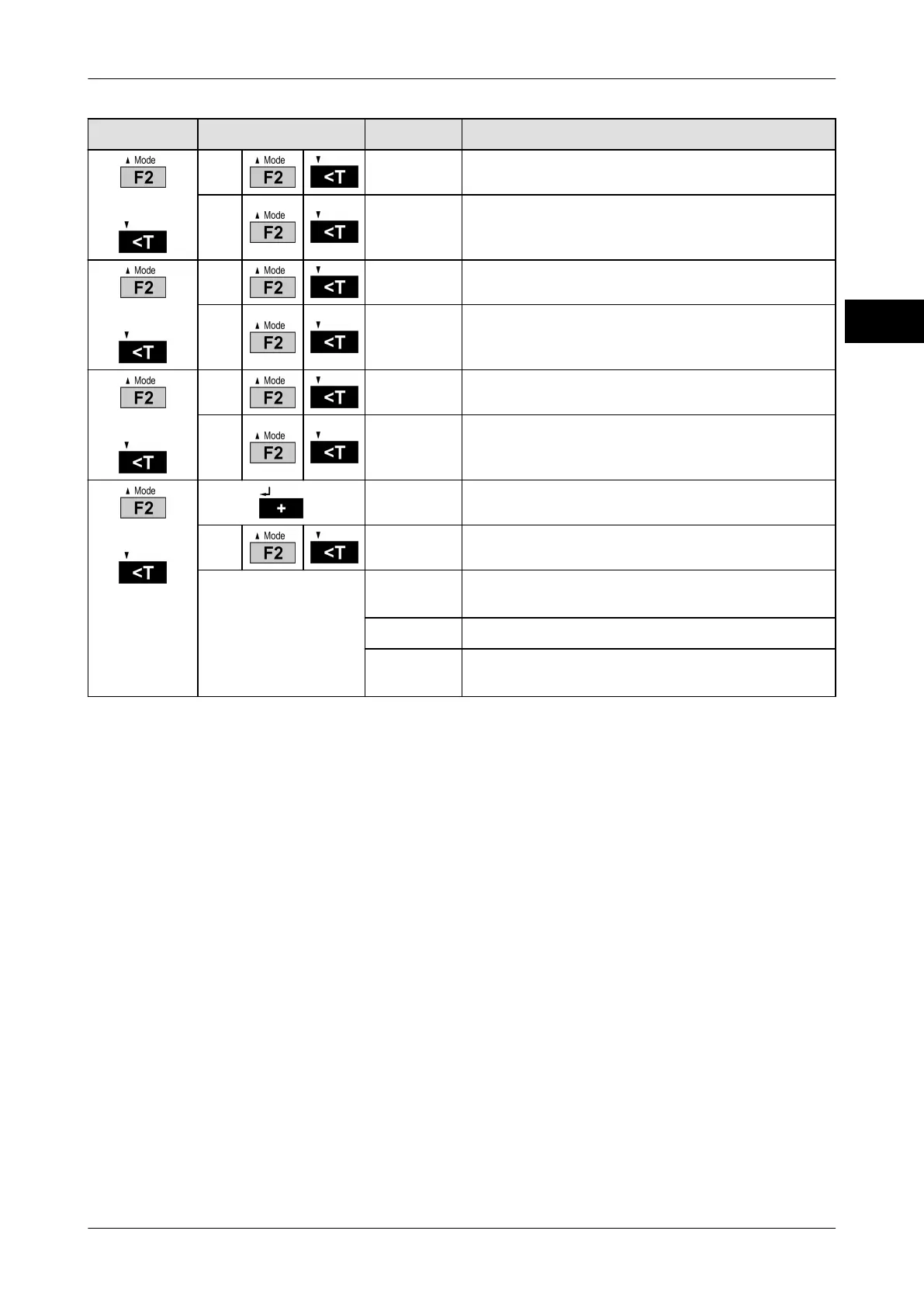

Operating instructions iS10 / iS20
PC/EDP and printer interface
38019417000 en
65
6
Selection
Subselection
Display
Explanation
or
58 0
Number of pieces off
58 1
Number of pieces on
or
01 0
Text block 1 off
01 1
Text block 1 on
or
02 0
Text block 2 off
02 1
Text block 2 on
or
66
Additional space
0
off
Setting changes with
each keystroke.
1
Number of additional blank lines after item re-
cording
to
9
Number of additional blank lines after item re-
cording
66
68
