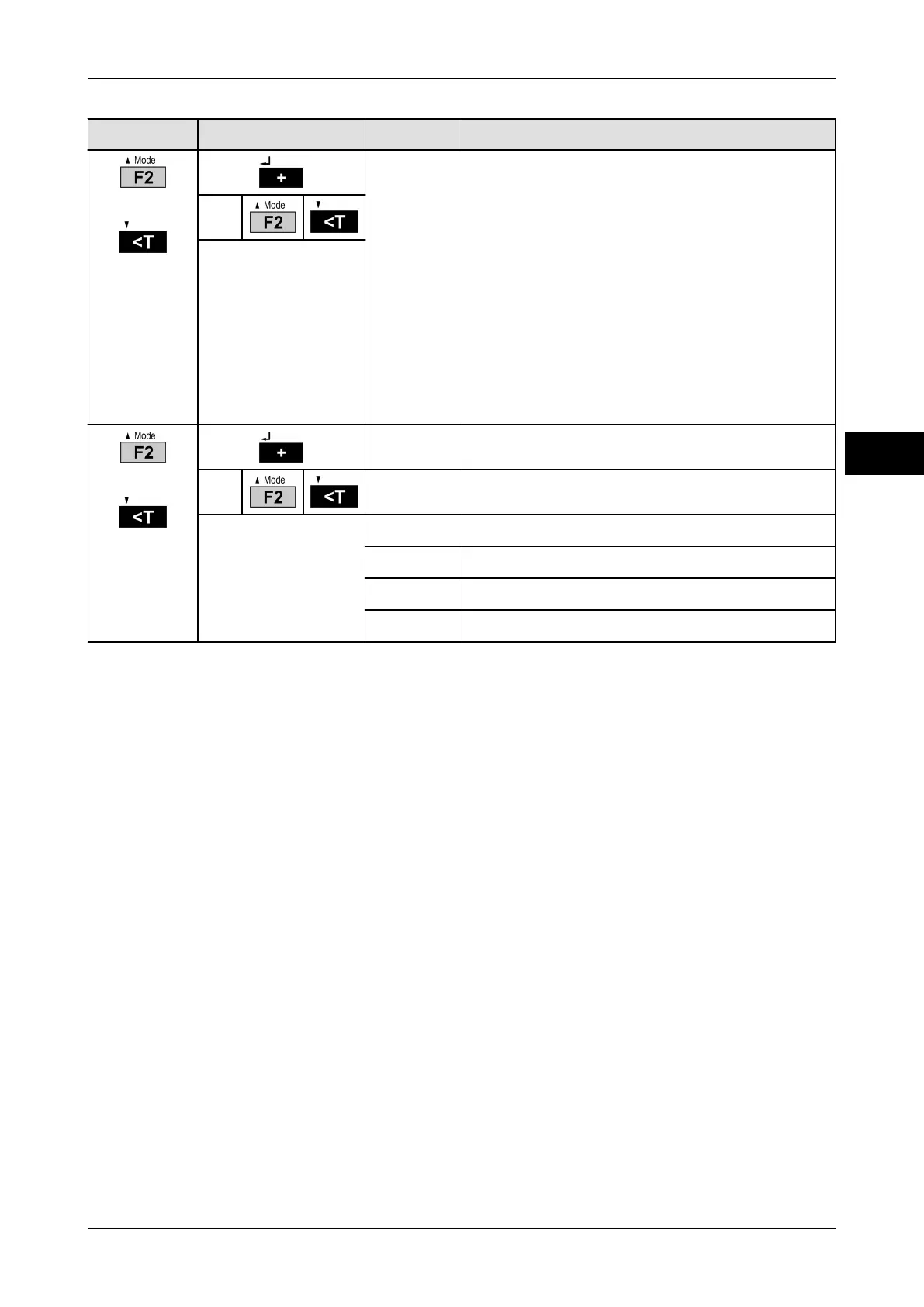

Operating instructions iS10 / iS20
Service menu
38019417000 en
85
9
Selection
Subselection
Display
Explanation
or
23 1
23 2
23 5
23 10
23 20
23 50
23 100
23 200
23 400
23 500
23 1000
23 2000
23 5000
2310000
Display interval in g, coarse interval
Setting changes with
each keystroke.
or
24 1
Selection multi-interval / multi-range scale
24 1
Single division scale
Setting changes with
each keystroke.
24 2
Dual division scale
24 3
Triple division scale
24 4
Dual-range scale
24 5
Triple-range scale
86
88
