Maintenance Operating instructions VS12D /C /-R /-V /-
V/R
8 - 6 6.083.98.5.10.10 en
8
Carriage

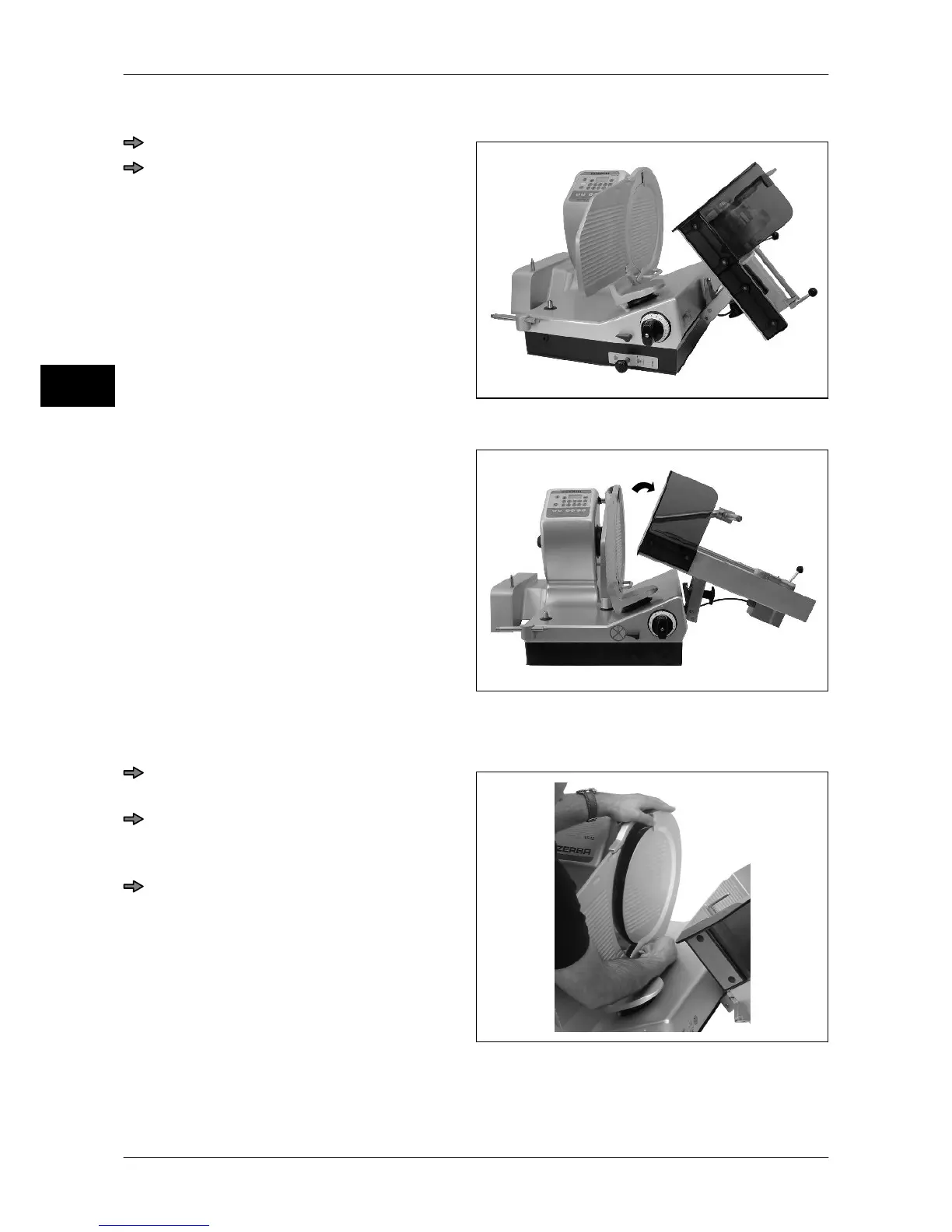

Fig. 37: Tilt the carriage to the outside,
VS12D
Fig. 38: Tilt the carriage to the outside,
VS12D-V
Turn out knob on carriage foot.
Tilt the carriage to the outside.
Blade cover
Fig. 39: Blade cover
Hold blade cover on handle with your
right hand.
Using your left hand loosen the fixing
bolt by means of three-square knob and
push the blade cover out of centering.
Use your left hand to keep the cover
held away from the blade and remove it.
