Operating instructions VS12D /C /-R /-V /-
V/R
Maintenance
6.083.98.5.10.10 en 8 - 15
8

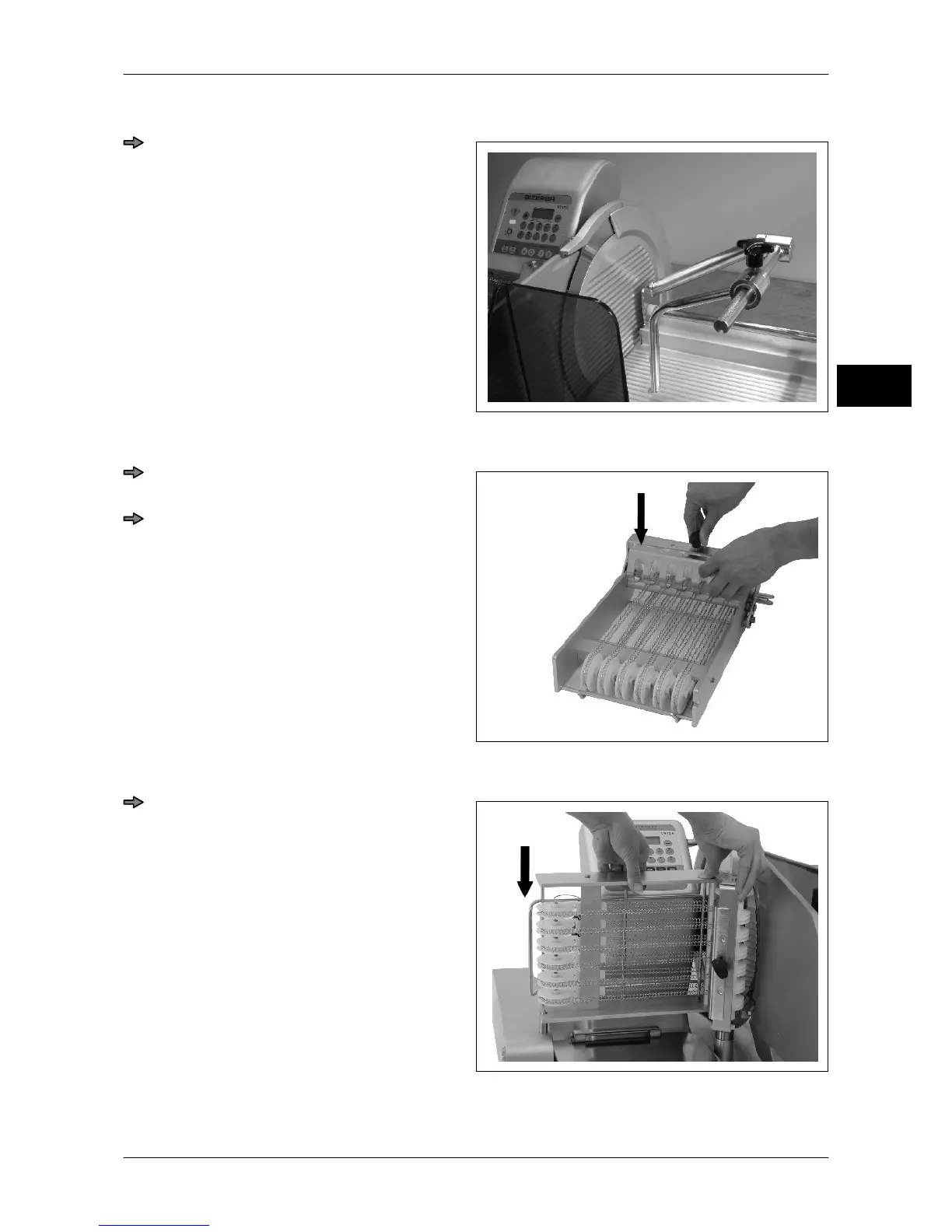

Product support VS12D-V
Fig. 56: Product support VS12D-V
Push product support onto guide piece,
tighten both star knob screws firmly.
Guide cam
Fig. 57: Guide cam
Install guide cam between the transport
chains and tighten with locking handle.
By turning the feed roller check if chains
are mounted correctly.
Chain frame
Fig. 58: Chain frame
Install chain frame with swiveled in feed
roller from the top in the holding fixtures
and drive shaft.
