Maintenance Operating instructions VS12D /C /-R /-V /-
V/R
8 - 16 6.083.98.5.10.10 en
8

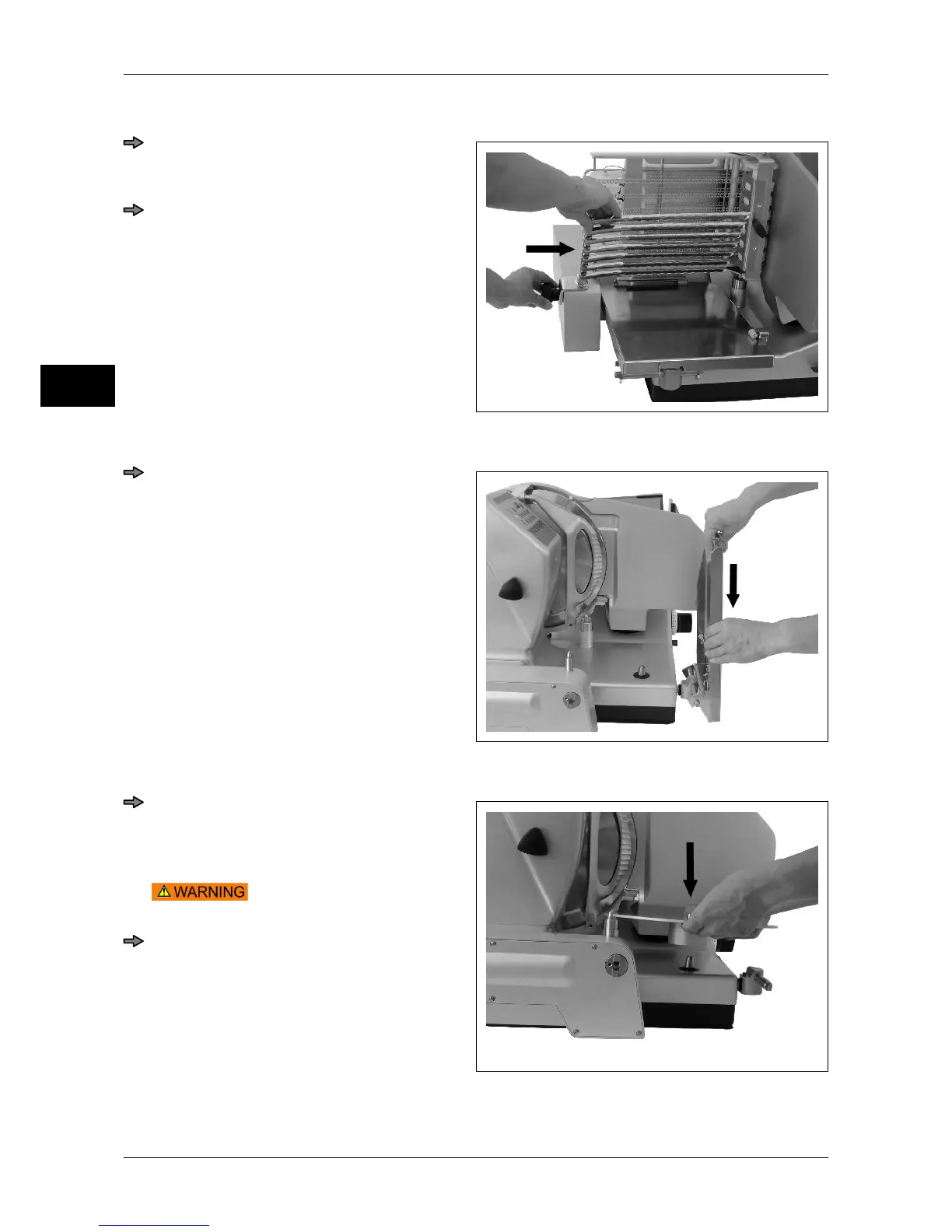

Depositing arm
Fig. 59: Depositing arm
Push depositing arm onto carriage shaft
and turn until the hub catches the
groove.
Fasten with three-square knob.
Depositing table
Fig. 60: Attaching the depositing table
Pull table guide towards you. From the
top place depositing table in vertical po-
sition on supporting pin and swivel back-
wards.
Round platter (optional)
Fig. 61: Round platter
Install round platter in guide shaft from
the top.
The round platter is equipped with mag-
nets to ensure fast and easy handling.
If the distance is less than
50 mm, pacemakers can be affected.
If necessary, turn until round platter is
engaged.
