Operating instructions VS12 /C /F /F-P /W Machine and operating elements
6.080.98.5.10.13 en 5 - 3
5
5.5 Product holder
VS12, VS12F, VS12W
When placing the product on the carriage,
the product holder can be lifted up to its un-
stable equilibrium.
For slicing purposes, the product holder is
set on top or behind the product.

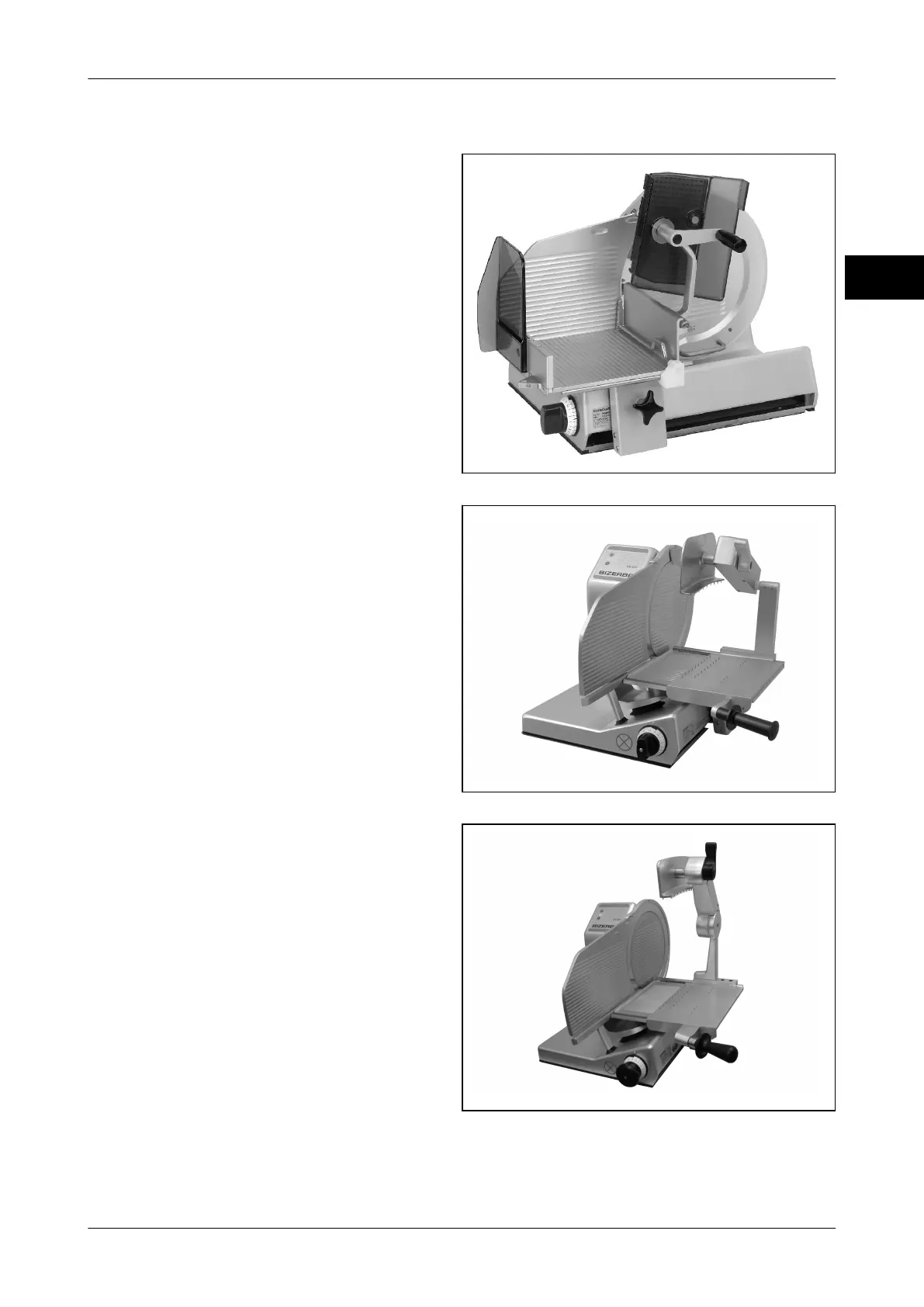

Fig. 15: VS12
VS12F-P, VS12F37-P
Pull product holder towards the operator to
insert product. The locking device is loose,
the product holder can be lifted up and re-
mains in this position.
For slicing purposes, the product holder is
set on top or behind the product. The spikes
are slightly pushed in, the product is clam-
ped.
Fig. 16: VS12F-P
Fig. 17: VS12F37-P
