Operating instructions VS12 /C /F /F-P /W Maintenance
6.080.98.5.10.13 en 8 - 5
8

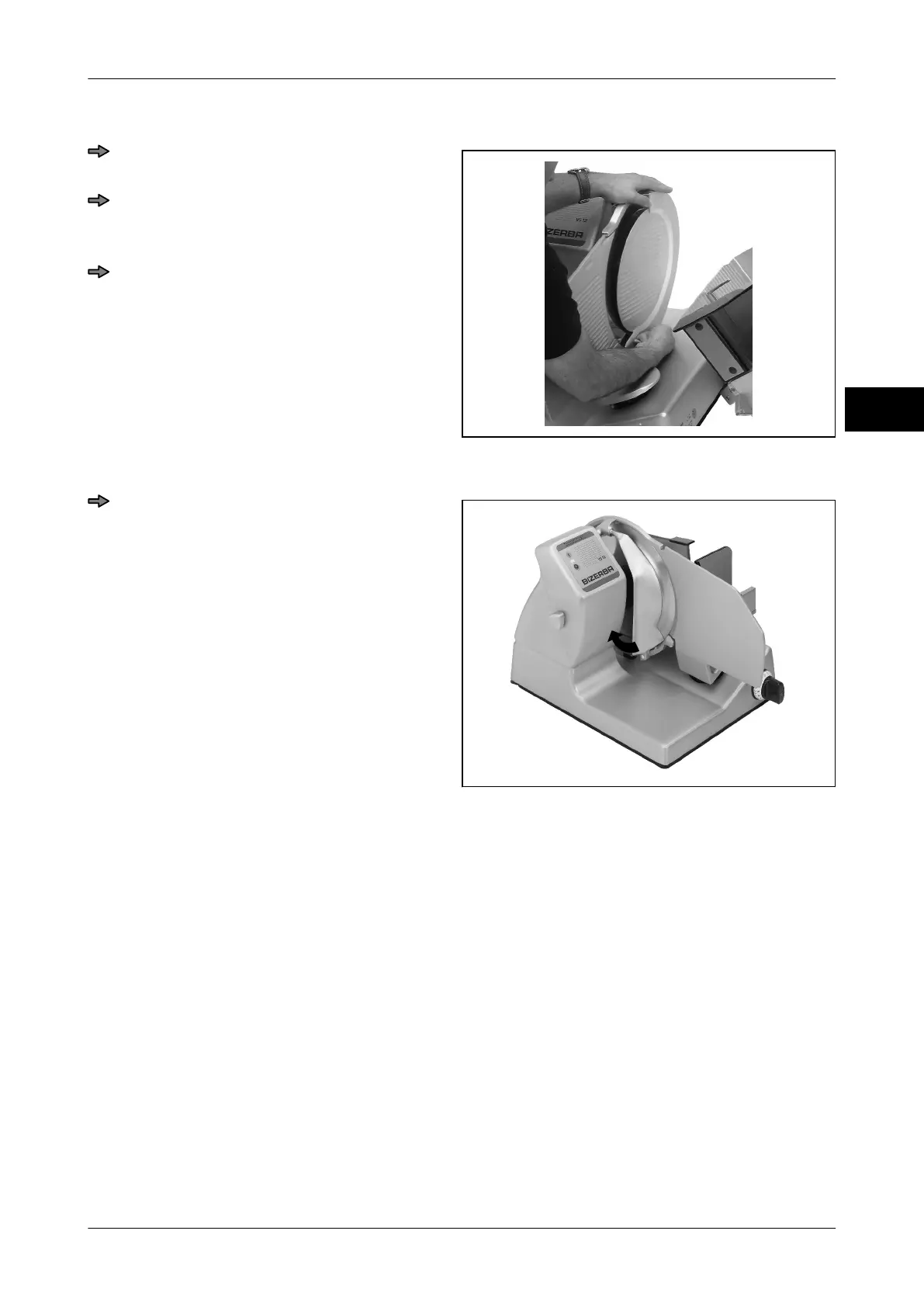

Blade cover
Fig. 41: Blade cover
Hold blade cover on handle with your
right hand.
Using your left hand loosen the fixing
bolt by means of three-square knob and
push the blade cover out of centering.
Use your left hand to keep the cover
held away from the blade and remove it.
Deflector
Fig. 42: Deflector
Remove deflector from magnet lock and
move away in arrow direction.
Now the machine is ready for cleaning.
