3
T
o rackmount a single in
strument, order
rackmoun
t kit IT
-E1
51

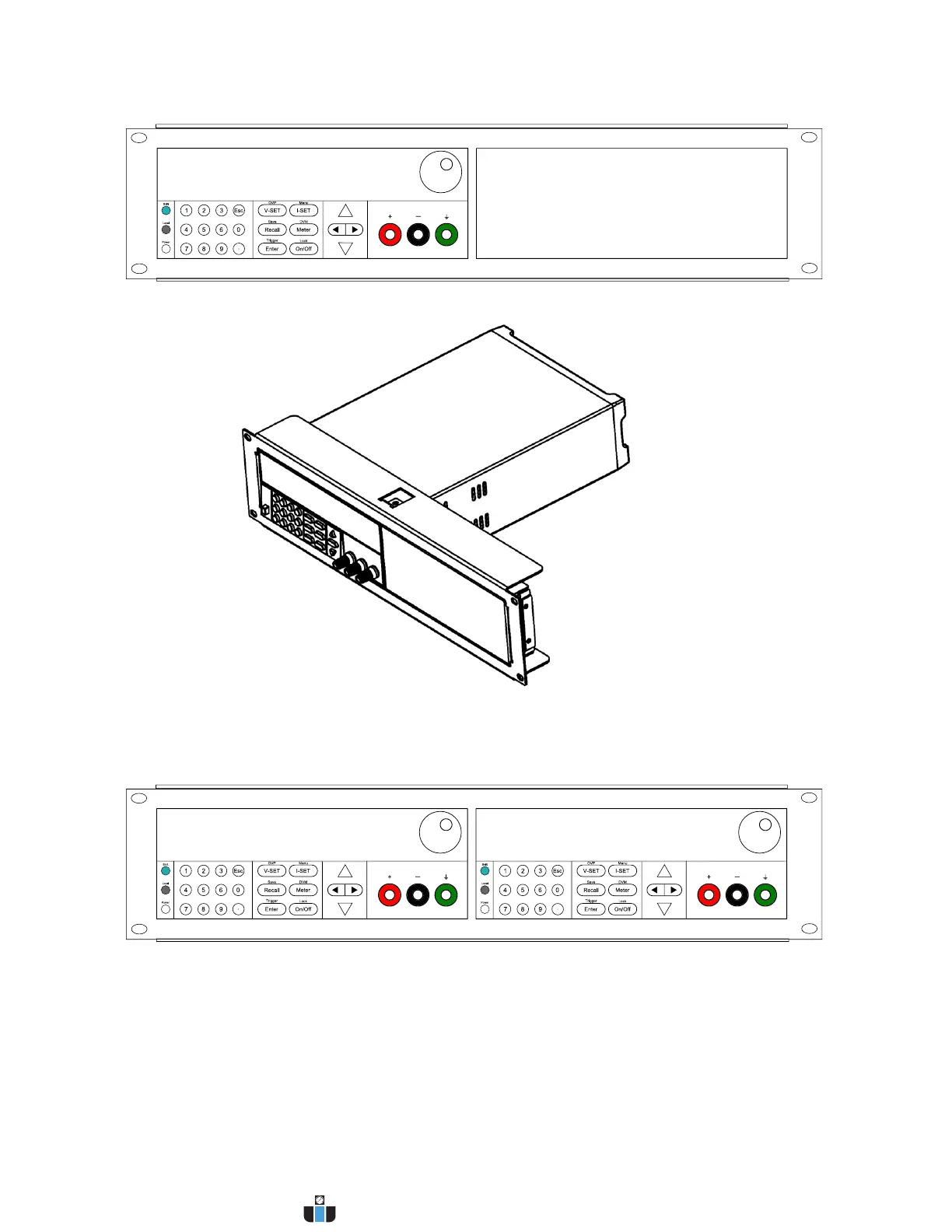

Side view of ra
ckmounting a single instrumen
t
T
o rackmount two
instrumen
ts side
-
by
-side, or
der rackmou
nt kit IT
-E151, the front cov
er
panel is not needed.
www
.calcert.
com
sales@calcert.com
1.888
.6
10.
7
664
0
5
10
15
20
25
30
14
16
Table of Contents
Safety Summary
2
Compliance Statements
7
Safety Symbols
9
Table of Contents
10
General Information
13
Product Overview
13
Package Contents
13
Product Dimensions
14
Rackmount Installation
14
Front Panel Overview
16
Front Panel Description
16
Keypad Overview
17
Keypad Description
17
Rear Panel Overview
18
Rear Panel Description
18
Display Overview
19
Display Description
19
Getting Started
20
Input Power and Fuse Requirements
20
Input Power
20
Fuse Requirements
21
Line Voltage Selection
21
Output Connections
23
Preliminary Check
24
Self-Test Errors
24
Output Check
24
Check Model and Firmware Version
25
Front Panel Operation
26
Menu Options
26
How to Access the Menu
26
Configure Voltage and Current Output
27
Setting Voltage
27
Setting Current
28
Remote Sense
28
Voltage/Current Measurement
30
SYSTEM Menu
30
Voltage Limit Setting
30
Configure Overcurrent Protection (OCP)
31
Configure Power-On State
31
Remote Communication Configuration
31
Enable/Disable Key Sound
32
Lock/Unlock Rotary Knob
32
Configure Trigger Source
32
Save/Recall Instrument Settings
33
Timer Function
34
Restore Factory Default Settings
34
LIST Menu
35
Enable/Disable List Mode
35
Load List File
36
Edit List File
36
Overvoltage Protection (OVP)
37
Key Lock
37
Digital Voltmeter (DVM)
38
Remote Operation
39
Interface Configuration
39
Usb
40
Remote Commands
41
Parameter Definition
41
SCPI Status Register
41
IEEE488.2 Common Commands
44
STATUS Subsystem
47
SYSTEM Subsystem
48
TRIGGER Subsystem
50
SOURCE Subsystem
50
MEASUREMENT Commands
54
LIST Commands
56
Troubleshooting Guide
58
General
58
Remote Control
58
Specifications
59
Calibration
60
