15

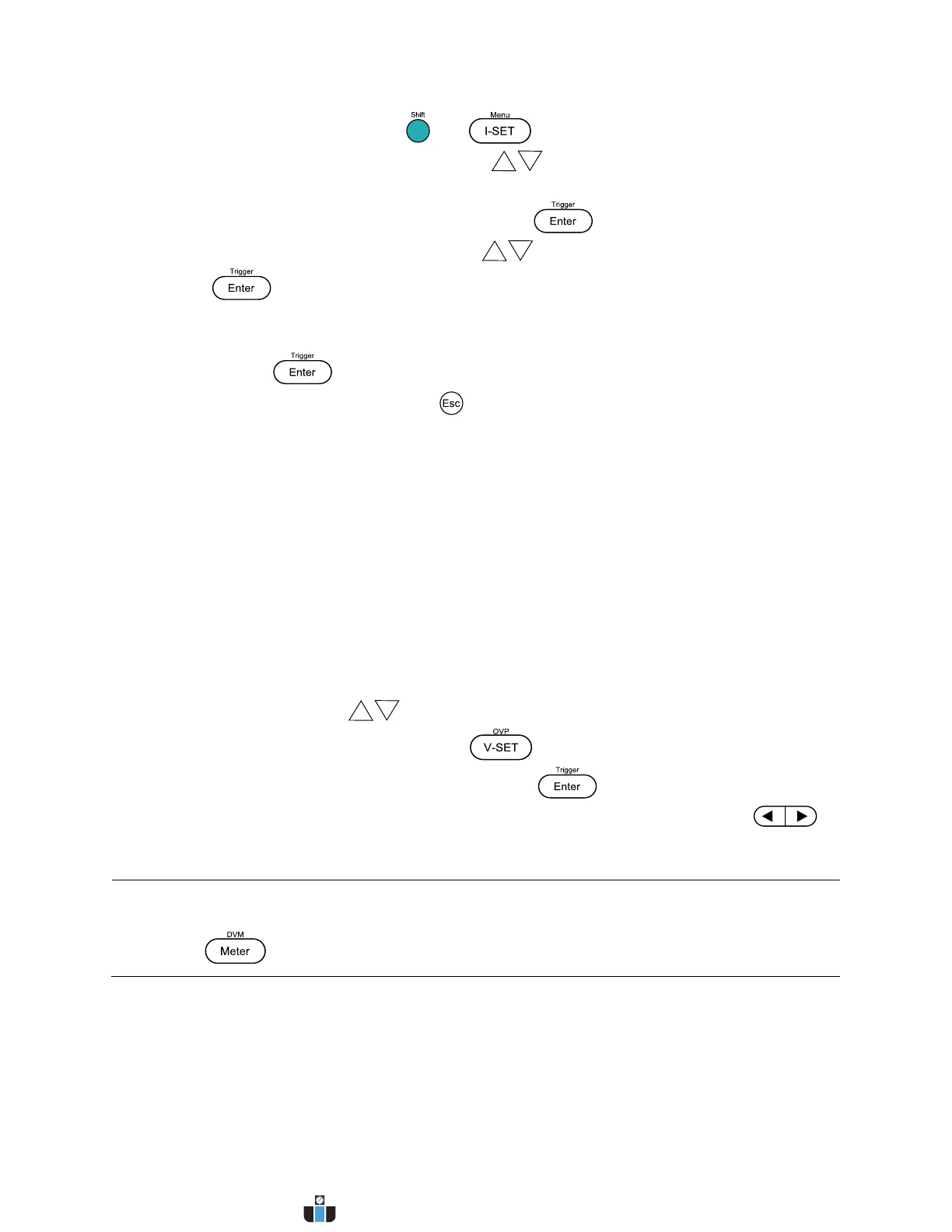

1. From the normal display, press and to enter the menu.
2. The selected item will be blinking. Use the keys to move through the menu
selections.
3. When the desired menu section is shown, press to access its menu settings.
4. The selected item will be shown. Use the keys to move through the menu items.
5. Press to access the selected menu item.
6. There may be parameters or options to select within each menu item. Follow the same
instructions as described in the previous steps to select them. To save changes to a
setting, press .
7. To exit the menu at any time, press twice.
3.2 Configure Voltage and Current Output
Voltage and current can be set from the front panel. Remote sense is also available on the rear
panel for voltage compensation at the output.
Setting Voltage
Follow the steps below to set the output voltage:
1. From the normal front panel display, users can use either the voltage adjust knob,
numeric keypad, or the keys to enter the setting voltage.
2. If entering using numeric keypad, press first so that the cursor selects the
voltage display. Then, enter the value and press to set the voltage.
3. To change the cursor position to adjust with the voltage adjust knob, use the
keys to move left or right.
Note: To see the changes to the setting voltage, be sure the display is not showing the
measured voltage. This can be checked by looking for the LED indicator of the
button. If it is not lit, the display is showing the setting voltage.
When output is ON, the user can use the rotary to adjust the voltage value when the output is
in constant voltage (CV) mode. The output value will change simultaneously with the adjusted
value. This allows the user to quickly change the output value if the test is needed.
