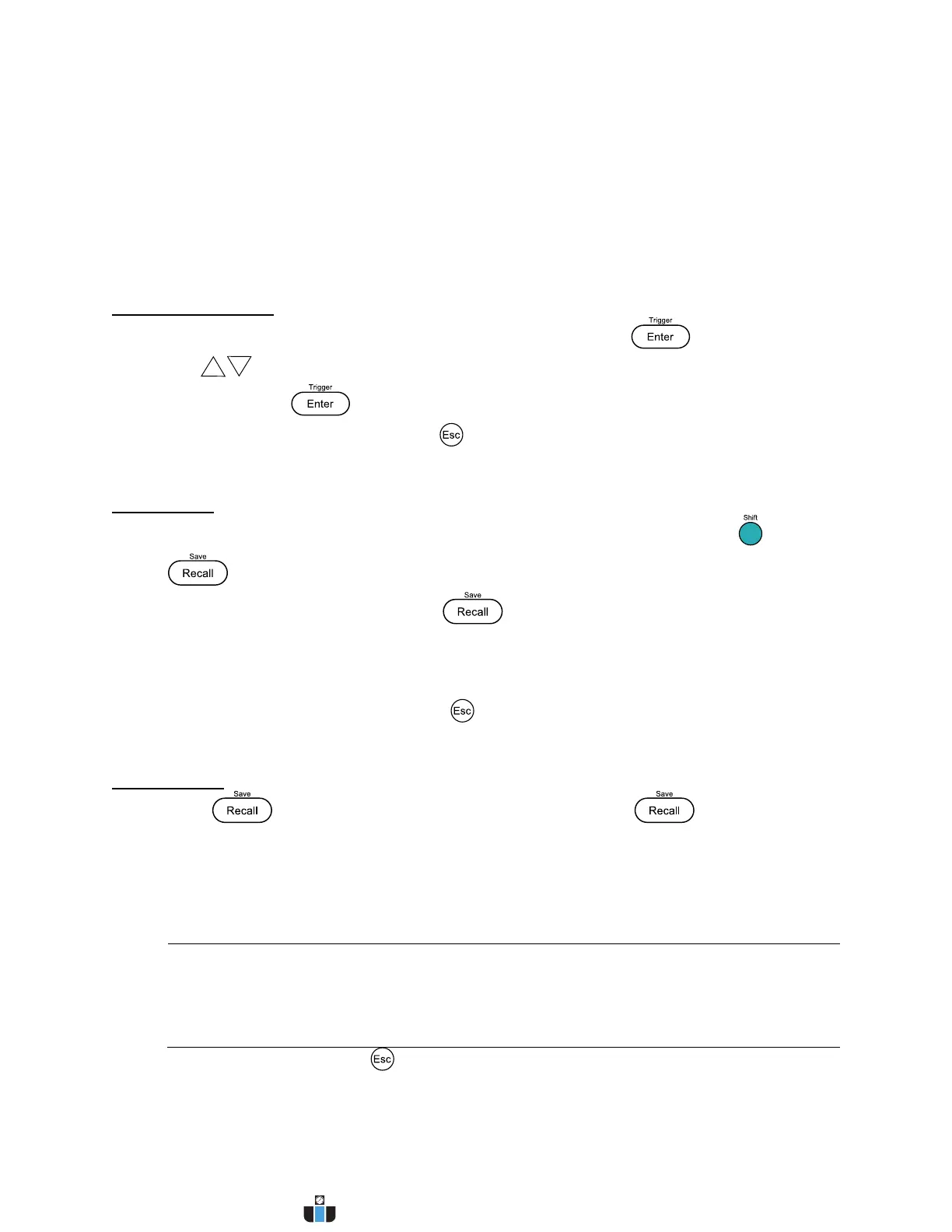

Save/Recall Instrument Settings
The instrument can save up to 72 sets of voltage/current values for quick recall access. Memory
is allocated in 8 different storage groups (group 1 to 8) and each group has 9 memory locations
to store settings (1 to 9). The memory group must first be selected from the menu before
settings can be saved within the group.
Select Storage Group
1. From the SYST SET menu, browse and select MEM and press .
2. Use keys or rotary knob to enter the storage group. Select between GRP1 –
GRP8 and press to save selection.
3. To exit the menu at any time, press twice.
Save Settings
1. Set up output voltage and current settings that you want to save and press and
to enter Save mode.
2. If entered properly, you will see the button flash on and off until a Save
location value is entered.
3. Use the numeric keypad to enter the memory location between 1 – 9 in which to store
current instrument settings.
4. To exit Save mode at any time, press .
Recall Settings
1. Press to enter Recall mode. If entered properly, the button will be lit.
2. Use the numeric keypad to enter the memory location between 1 – 9 to recall. The
voltage and current settings of that memory location will immediately be recalled and
displayed. If the selected memory location does not have any saved settings, the
message “DATA EMPTY” will be displayed.
Note: When in Recall mode, users can recall settings from different locations
without having to press additional keys each time. For example, you can
press 1 to recall settings in location 1, and then press 5 to immediately
recall settings in location 5.
