BK Precision 9205B User Manual

10

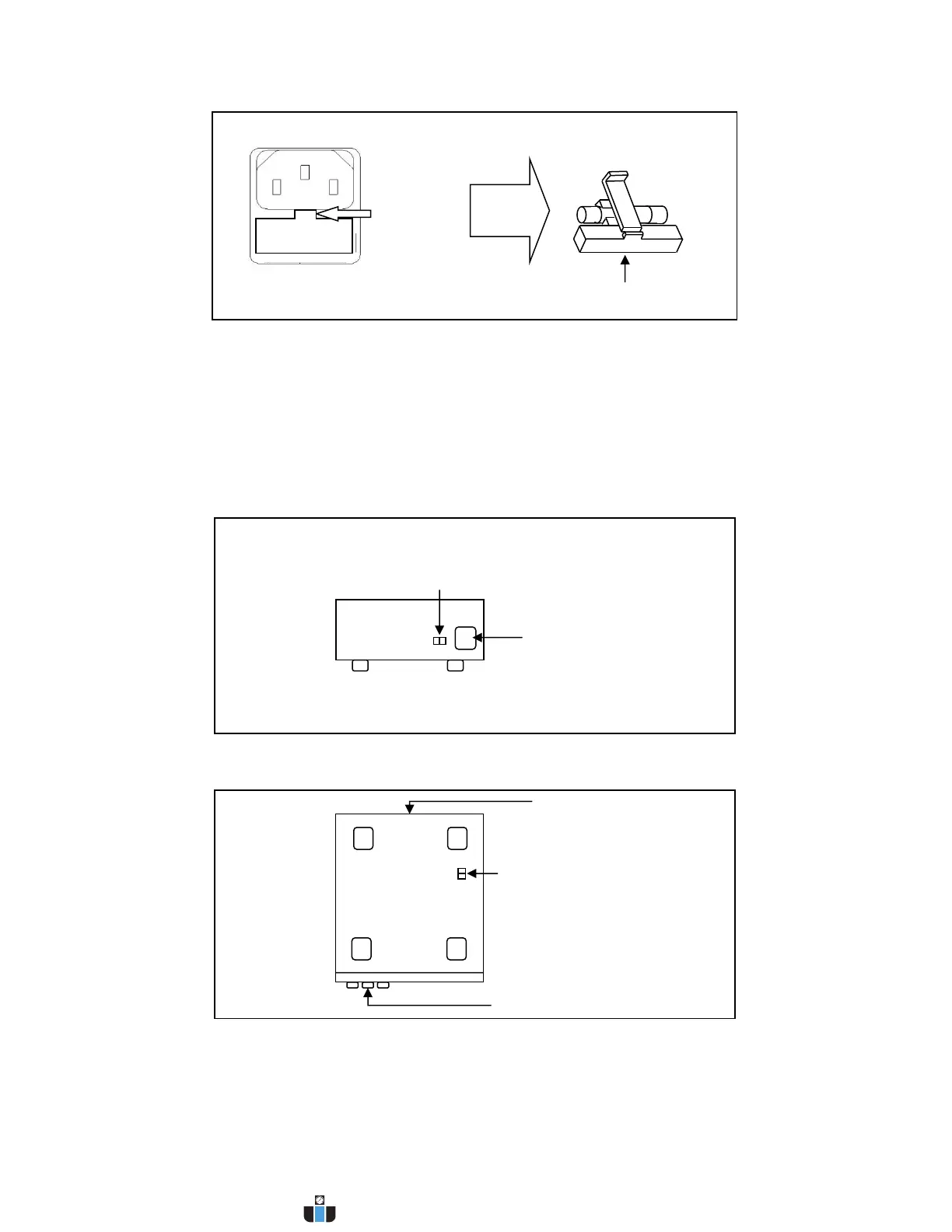

Figure 3 - Fuse replacement
Step 2 - Check and/or Change Line Voltage Switch
- Locate the Line Voltage Switch, which has markings that indicate “110” for 110V or “220”
for 220V line operation. Depending on the model, the Line Voltage Switch will be located
either on the rear or bottom of the instrument. Set the switch to the desired line voltage
operation.
Figure 4 - Models 9201B/9202B Line Voltage Switch Location
Figure 5 - Models 9205B/9206B Line Voltage Switch Location
Fuse box slit
Fuse box
Check/Remove Fuse
Line Voltage Switch
AC power input
receptacle
(Rear View)
Line Voltage Switch
Rear Panel
Front Panel
(Bottom View)
