Electronics Installation cont’d
Speed control and BEC
Flight battery
AR7200BX Arming
1. Lower the throttle.
2. Power on the transmitter.
3. Center the throttle trim.
4. Turn throttle hold ON.
5. Attach hook material to the helicopter frame and
loop material to the battery.
6. Install the fl ight battery on the helicopter frame.
Secure the fl ight battery with a hook and loop
strap.
7. Connect the battery cable to the ESC.
8. Do not move the helicopter until the AR7200BX
initializes. The swashplate will move up and down,
indicating that the unit is ready. The AR7200BX will
also emit a solid BLUE Status LED when it is ready
9. The helicopter motor will emit a series of tones,
indicating the ESC is armed.
CAUTION: Always disconnect the Li-Po battery
from the aircraft receiver when not in use to
avoid over-discharging the battery. Batteries dis-
charged to a voltage lower than the lowest approved
voltage may become damaged, resulting in loss of per-
formance and potential fi re when batteries are charged.

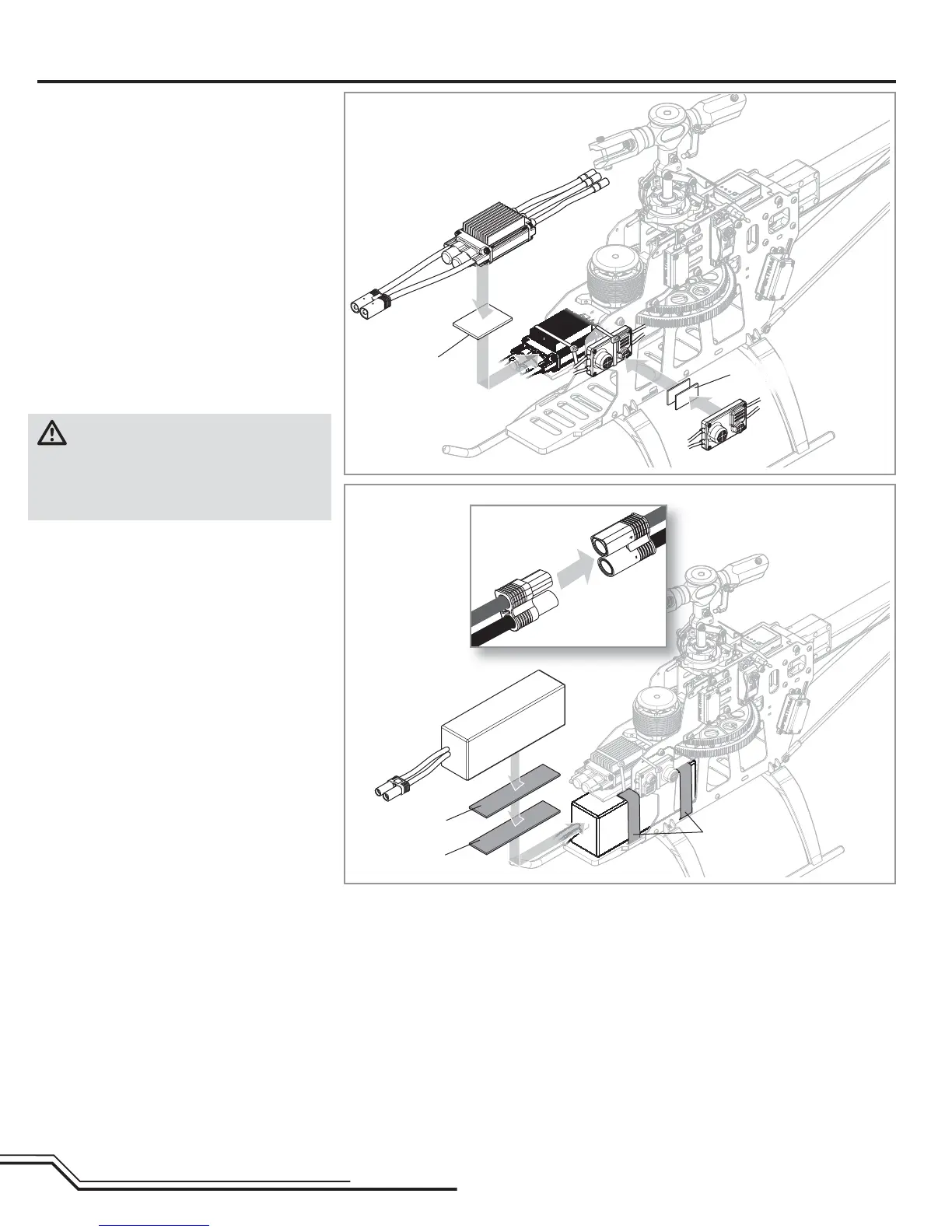

Double-sided foam tape
Loop material
Hook material
Hook and loop
strap
Hook and loop
material
