Blade 550X - Assembly Preparation and Components; Tools Required for Assembly; Essential Components and Optional Items; Assembly Guide Symbols Explained

4
EN

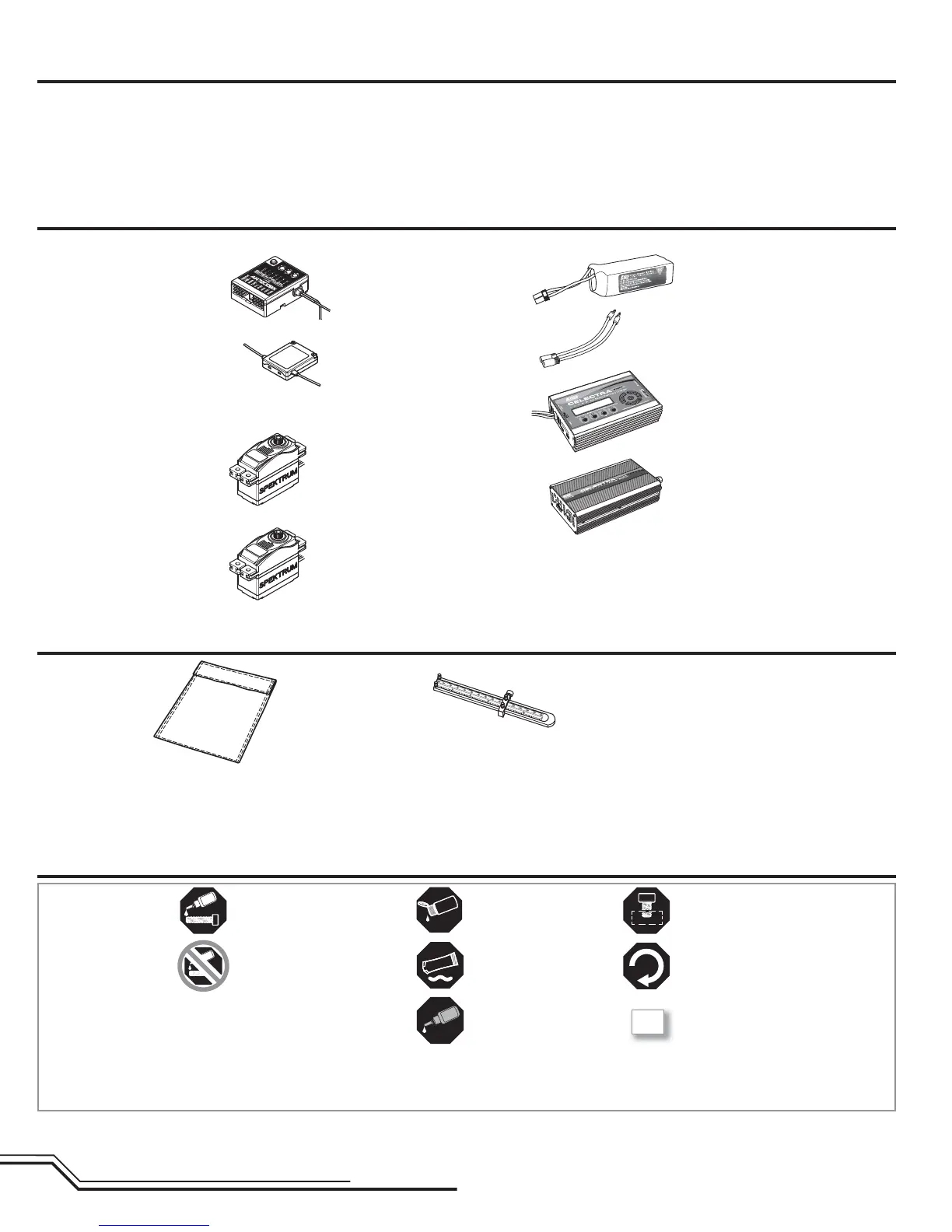

Assembly Guide Legend
Tools Needed To Complete
Required Items
Optional Items
OIL
2X
• 1.5mm, 2mm, 2.5mm, and 3mm hex drivers
• Ball link pliers
• Needle nose pliers
• Phillips screwdriver
• Wire cutter
• Pitch gauge
• Metric calipers
• Petroleum based, light viscosity lube
• Medium cyanoacrolate (CA)
• 3 Servos
(3) H6040 servos (SPMSH6040)
included with combo BLH5525C
• Receiver/Flybarless control unit
AR7200BX (SPMAR7200BX)
included with combo BLH5525C
• DSMX Remote Receiver (SPM9645)
included with combo BLH5525C
• 1 Tail servo
(1) H6080G servo (SPMSH6080G)
included with combo BLH5525C
• E-fl ite 200W charger (EFLC3020)
• Dynamite
®
Li-Po Charge
Protection Bag, Large
(DYN1405)
• Control Rod Set Up Tool
(RVO1004)
• Celectra™ 15VDC 250W
Power Supply (EFLC4010)
• DSM2
®
/DSMX
®
compatible DX6i 6 channel
transmitter or higher
• 5000mAh 6S 22.2V 30C LiPo,
10AWG with EC5™ connector
(EFLB50006S30)
• E-fl ite
®
EC5 Device Charge
Lead with 6” Wire & Jacks,
12 AWG and EC5 connector
(EFLAEC512)
Apply Petroleum based,
light viscosity lube
Apply Synthetic Grease
Apply MEDIUM CA
Apply NO Threadlock
Apply BLUE Threadlock
Loosely Tighten
Fully Tighten
Repeat Multiple Times
