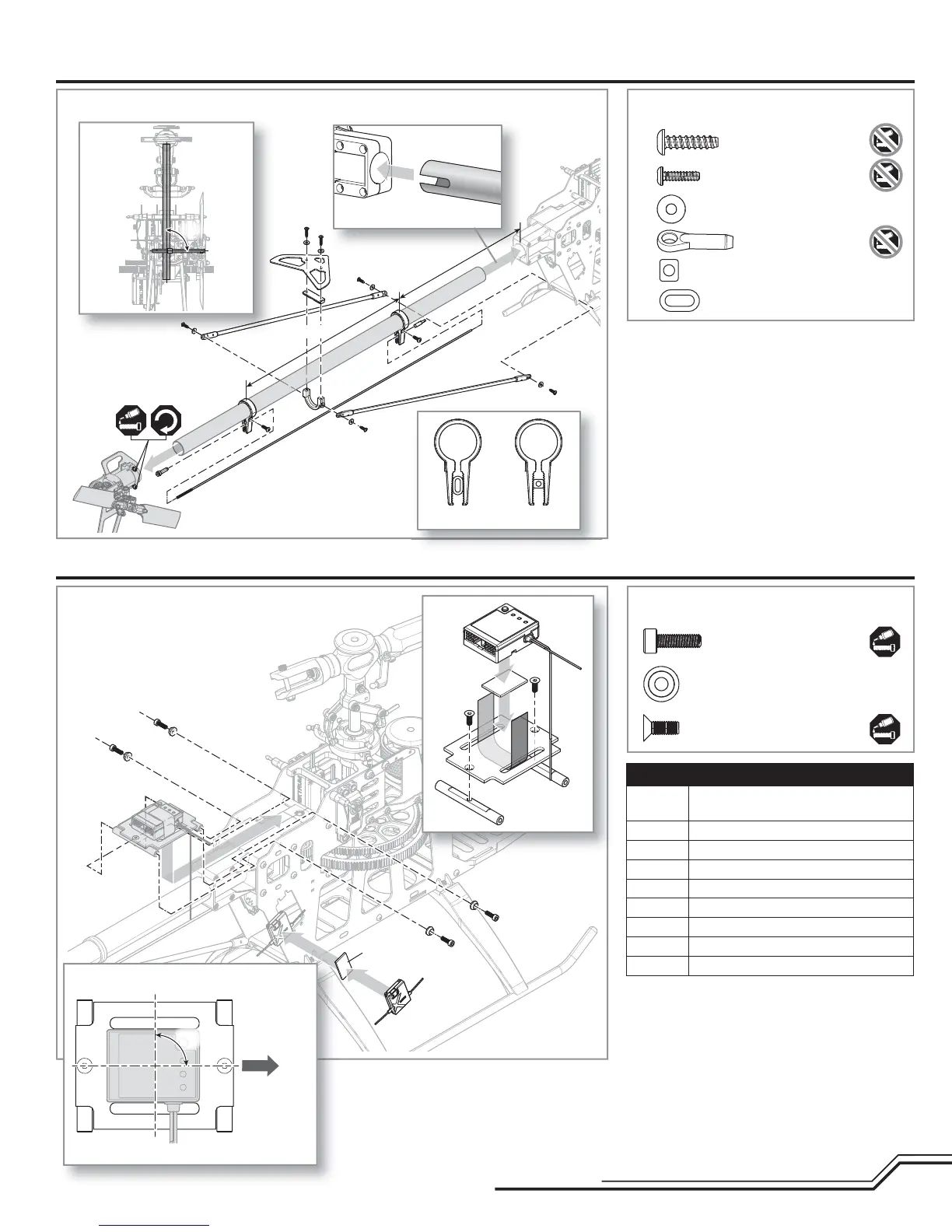

Blade 550X - Tail Assembly Continuation; Step T6 b: Tail Pushrod Guide Installation; Electronics Installation (E); Flybarless Control Unit and Receiver Mounting

13
EN
Step E1 parts (bag E1)
AR7200BX servo connections
BIND/DAT Bind plug, telemetry module or data
logger (optional)
AUX2 BEC
AUX3 BEC
THRO Speed control
Rx L Remote receiver
ELEV Center swashplate servo
AILE Left swashplate servo
AUX1 Right swashplate servo
RUDD Tail servo
TIP: Connect the remote receiver before plugging in the
servo leads.
Cap head
M3 X 10 (x4)
Recessed washer (x4)
Counter sunk screw
M3 X 8 (x2)
Tail Assembly cont’d
Step T6b Step T6b parts (bags T8 and T3)
Self tapping screw
M3 X 12 (x4)
Self tapping screw
M2.5 X 8 (x2)
M3 Recessed washer (x6)
Ball link (x2)
Rear pushrod guide insert
Front pushrod guide insert
A
A
A
A
B
B
A
B
B
A
230 mm
120 mm
Flybarless Control Unit and Remote Receiver
Double-sided
foam tape
Electronics Installation (E)
90°
AR7200BX Alignment
Front
viewed from top
A
90°
viewed
from back
Front Rear
viewed from left
