12
EN
OIL
OIL

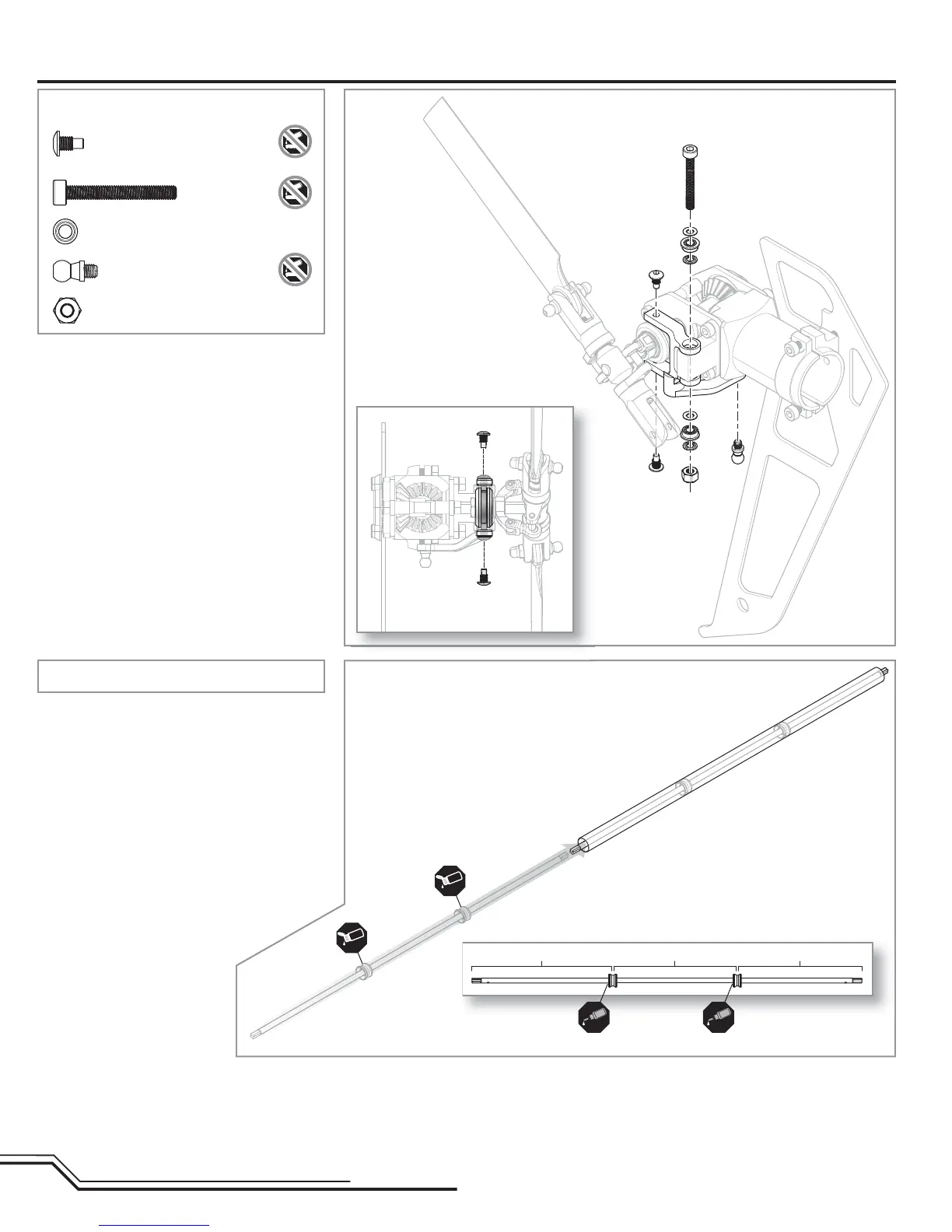

Step T6a
• Glue the torque tube bearings in place by placing a
thin bead of CA on the torque tube at the given loca-
tions (200mm, 200mm), then slide the bearings onto
the CA. Do not allow CA to get into the bearings.
• Use oil on the outside of the torque tube bearing
holders to ease installation into the boom.
• The stepped side of the washer faces the radial
bearing.
Tail rotor blade
removed for clarity
214 mm 200 mm 200 mm
Step T5Step T5 parts (bag T6)
Step T6a parts (bag T7)
Tail Assembly cont’d
Button head screw
M3 X 5 (x2)
Cap head bolt M3 X 25
M3 Step washer (x4)
Control ball
M3 Lock nut
viewed from back
To Next Page
