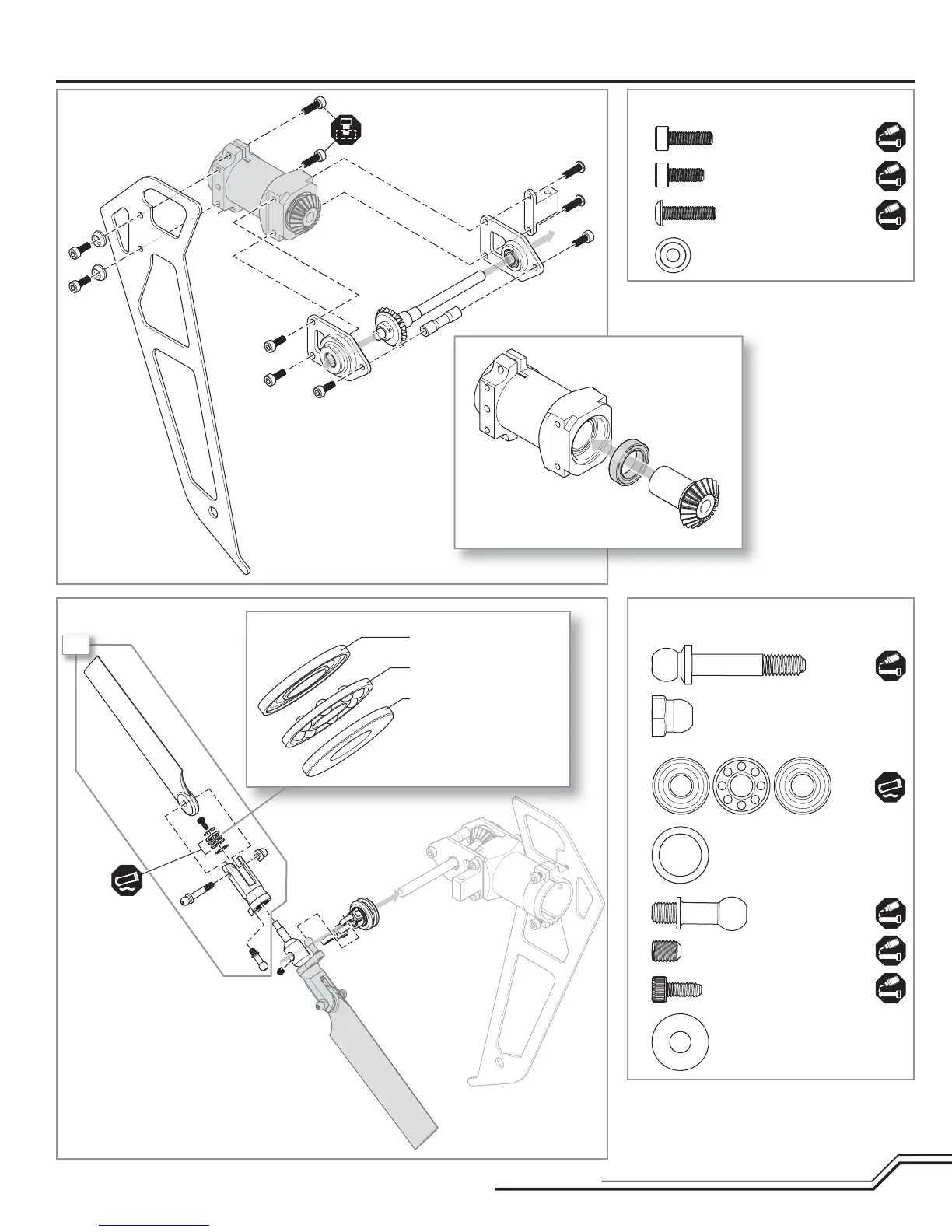

Blade 550X - Tail Assembly Continuation; Step T3: Tail Rotor Drive Gear Installation; Step T4: Tail Rotor Pitch Linkage Assembly

11
EN
2X
Tail Assembly cont’d
Step T3
Step T4
Step T3 parts (bags T2 and T3)
Step T4 parts (bags T4 and T5)
Cap head bolt M3 X 10 (x2)
Cap head bolt M3 X 8 (x4)
Button head screw
M3 x 10 (x2 )
M3 Recessed washer (x2)
Tail blade bolt (x2)
Tail blade nut (x2)
Thrust bearing (x2)
Thrust washer (x2)
Control ball (x2)
M4 x 3 Set screw
M3 X 8 Cap head
bolt (x2)
M3 Washer (x2)
A
B
A
B
A
A
B
C
B
C
B
B
B
Small inner diameter race
Bearing cage
Large inner diameter race
