7.7 Wear parts

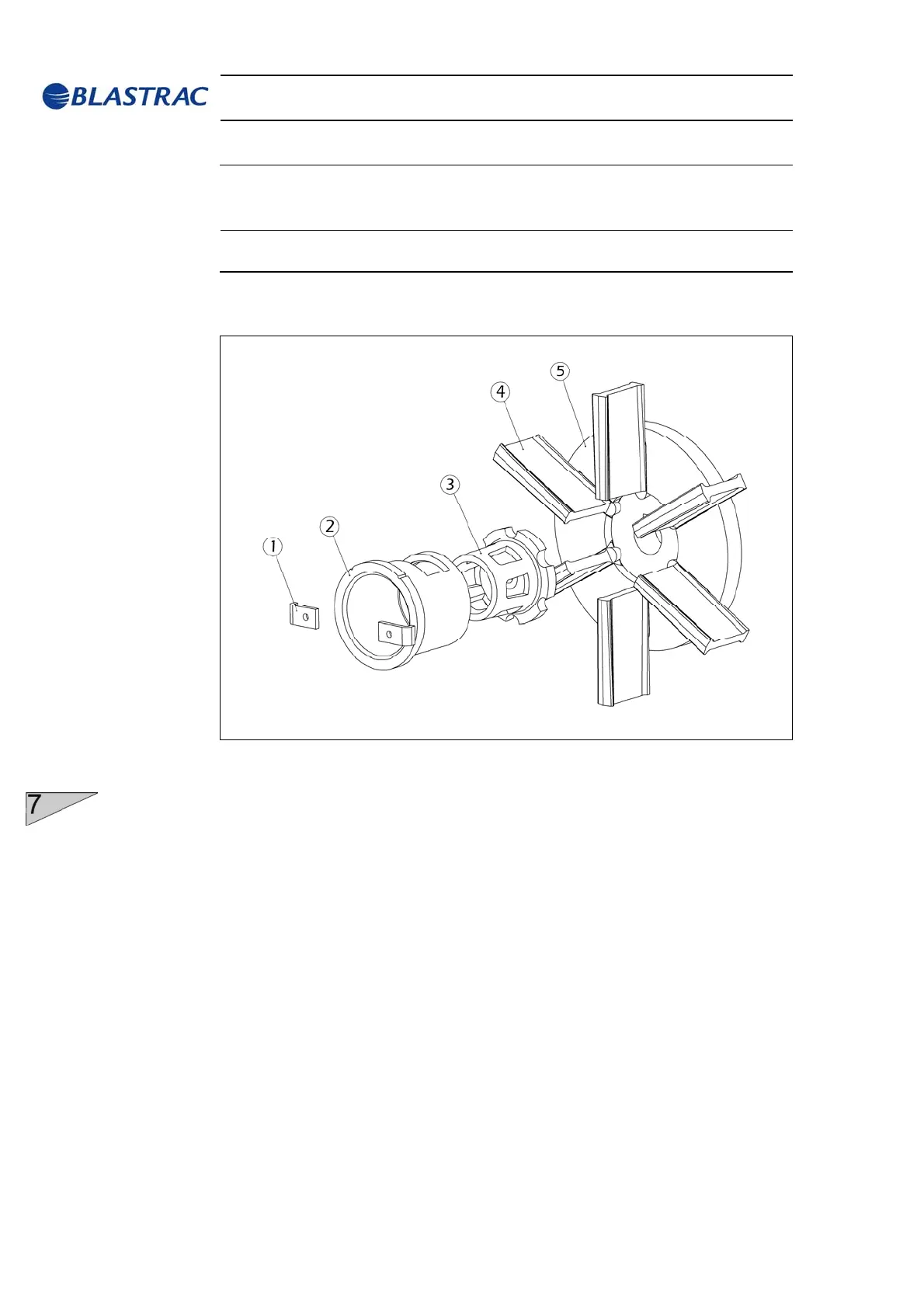

The blast wheel parts

Fig. 7.3

1 Cage clamp

2 Control cage

3 Impeller

4 Blades (set of 6)

5 Blast wheel
