Blastrac 500 E Global - 7.9 Changing the liners

500 E Global Operating Instructions
Maintenance
13

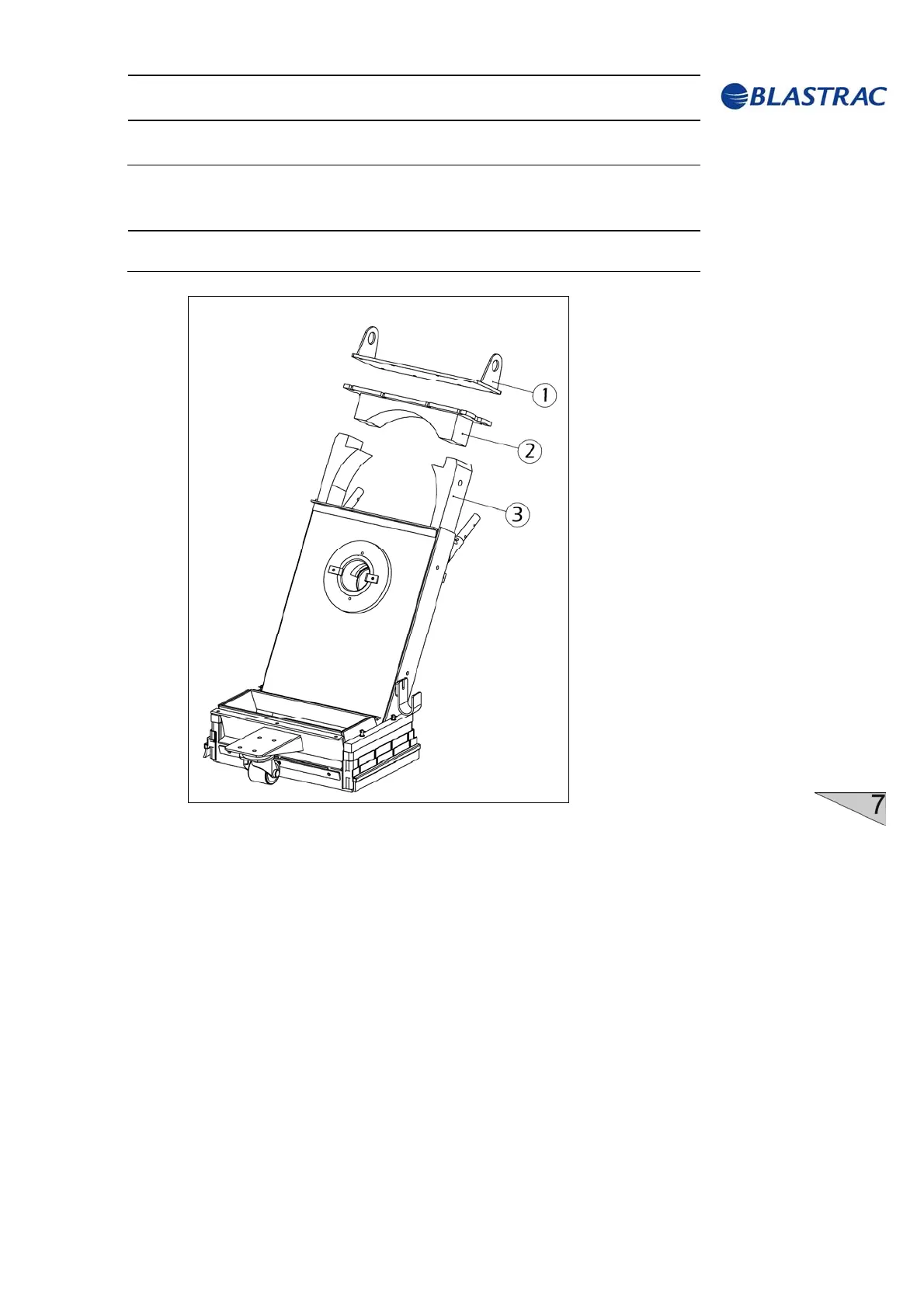

Fig. 7.5
1 Top liner cover
2 Top liner
3 Side liner
 Unscrew the top liner cover and remove it.
 Take out the top liner.
 Loosen the fastening screws securing the left and the right-hand
liners and take the side liners out of the blast housing.
 Replace all worn items. Clean the liners and the inside of the
blast housing thoroughly. Re-assemble the machine in reverse
order, using kit between the top liner and the side liners, and
between the top liner and the front and rear plates of the blast
housing. Make sure that the top liner sits close at the edges of
the side liners.
7.9 Changing the liners
