BOC Smootharc Multi 180 - Control Panel Overview

15BOC Smootharc Multi 180/200 Operating manual
4 Menu selection and
adjustment knob (centre)

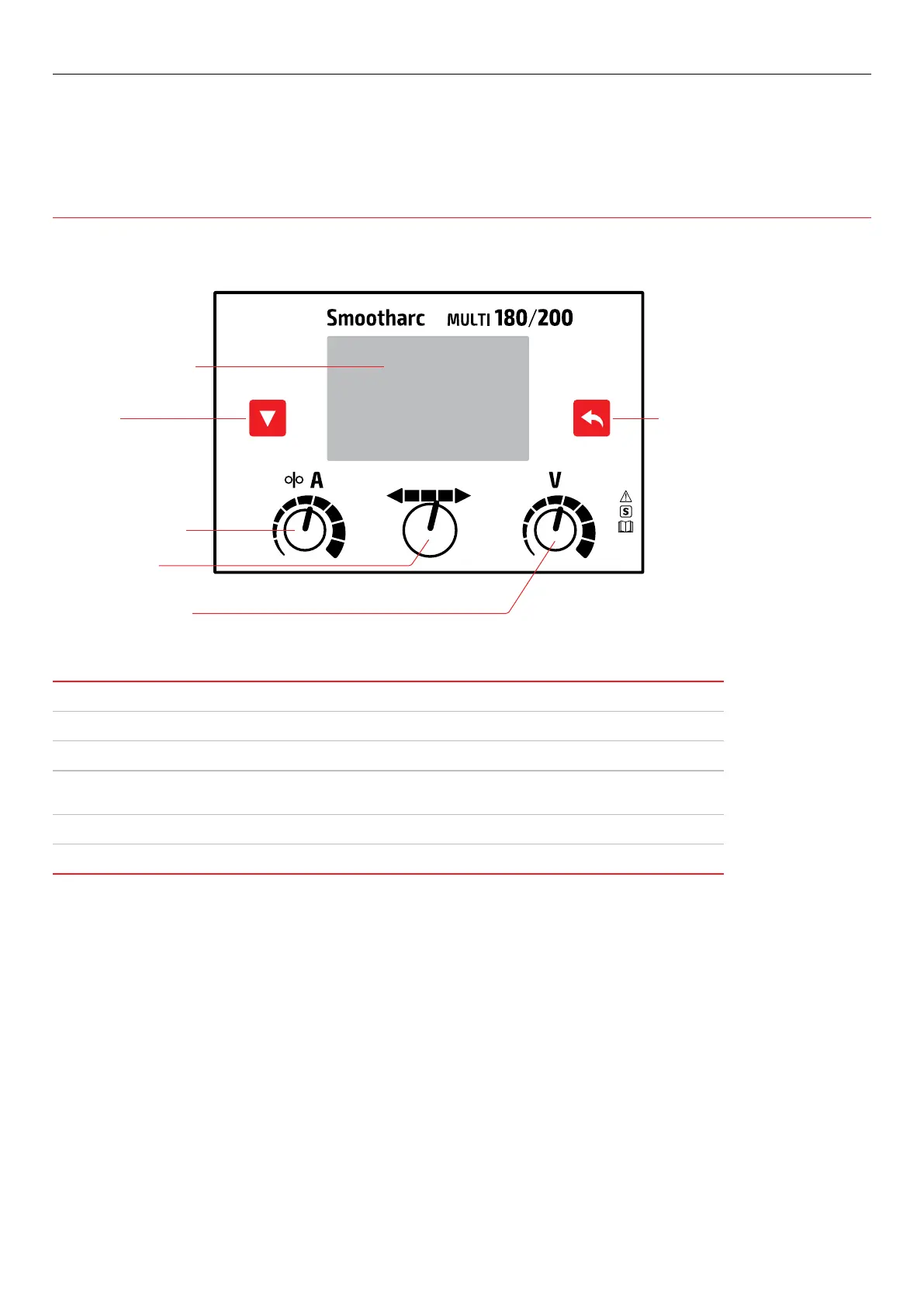

Front panel of Multi 180/200 machines
Control panel
2 Main menu
6 Previous window
5 Data adjusting knob (right)
1 Multifunctional data display
3 Data adjusting knob (left)
Description Function
1
Multifunctional data display. Displays process, welding parameters, settings.
2
Main menu. Toggle selection for process and settings menu.
3
Data adjusting knob (left). Adjusts wire feed speed and amperage.
4
Menu selection and
adjustment knob (centre).
Select process and parameters. Run-In WFS, Inductance, Spot timer,
Conrm/Recall/Save settings.
5
Data adjusting knob (right). Adjust plate thickness and voltage parameters.
6
Previous window. Jump back to previous window.
