Boca Systems Lemur - Standard Interface Pinouts

9

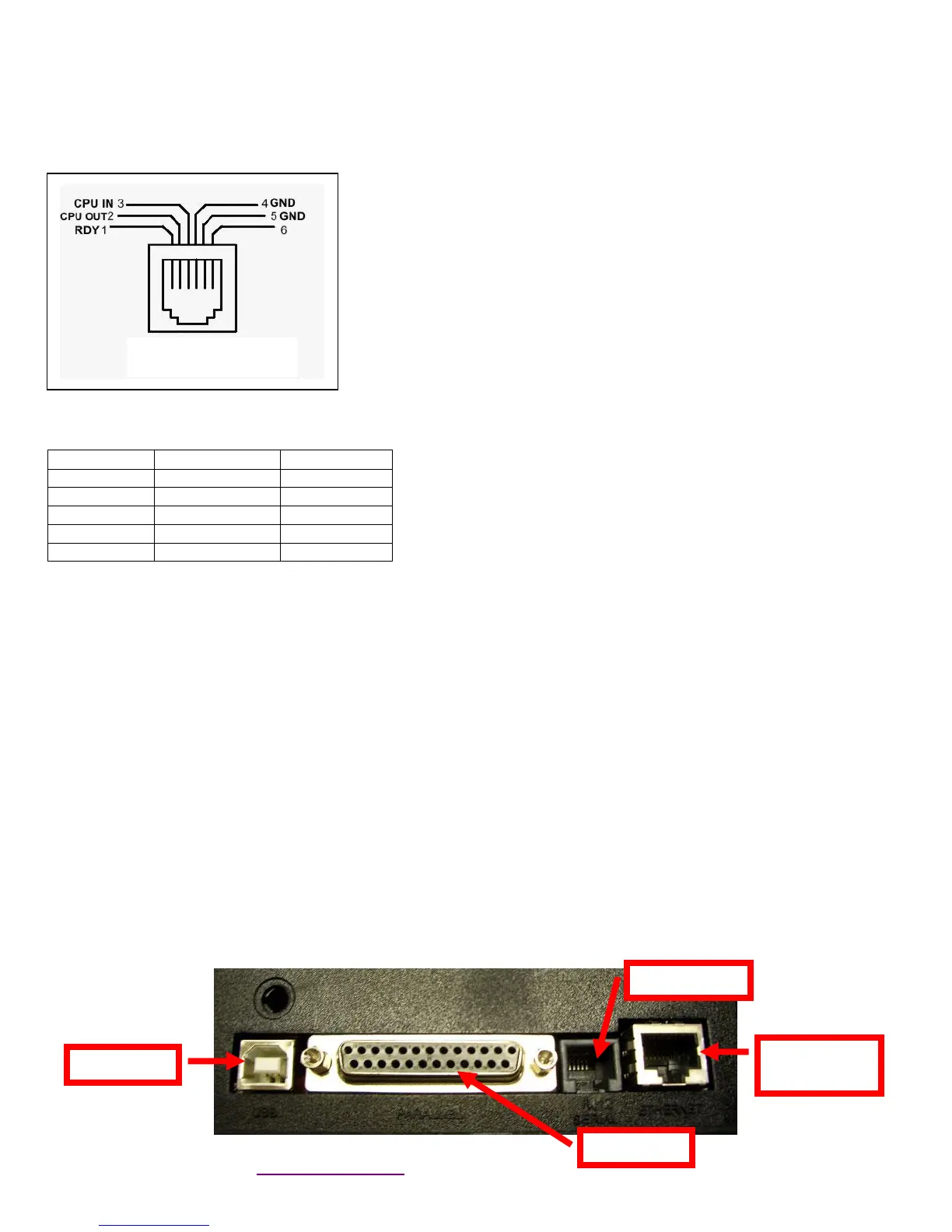

7.0 Standard Interface Pinouts
RJ12 Serial Connection
TYPICAL DB9 to RJ12 PIN CONNECTIONS
9 pin host
BOCA RJ12
2
2
Transmit
3
3
Receive
5
4
GND
6
1
RDY
8
6
CTS
PARALLEL
PIN FUNCTION
1 Strobe (negative)
2-9 Data (DB0 - DB7)
10 ACK (negative)
11 BUSY
12 PAPER OUT
13 SELECT (negative)
15 ERROR (negative)
18 Ground
USB is considered a full speed device (version 1.1) not a high speed device (version 2.0).
ETHERNET (Optional) is a standard RJ45 Ethernet cable connection.
WI-FI (Optional) is compatible with 802.11 b/g networks and supports security settings WEP/WPA/WPA-2.
BLUETOOTH (Optional) may be ordered as Classic or Low Energy (LE).
NOTE: The above pinouts may vary on certain printers due to special customer request.
Click here to return to > Table of Contents
+5VDC
RJ12 Connector
USB
Parallel
RJ12 serial
Ethernet
(Optional)
