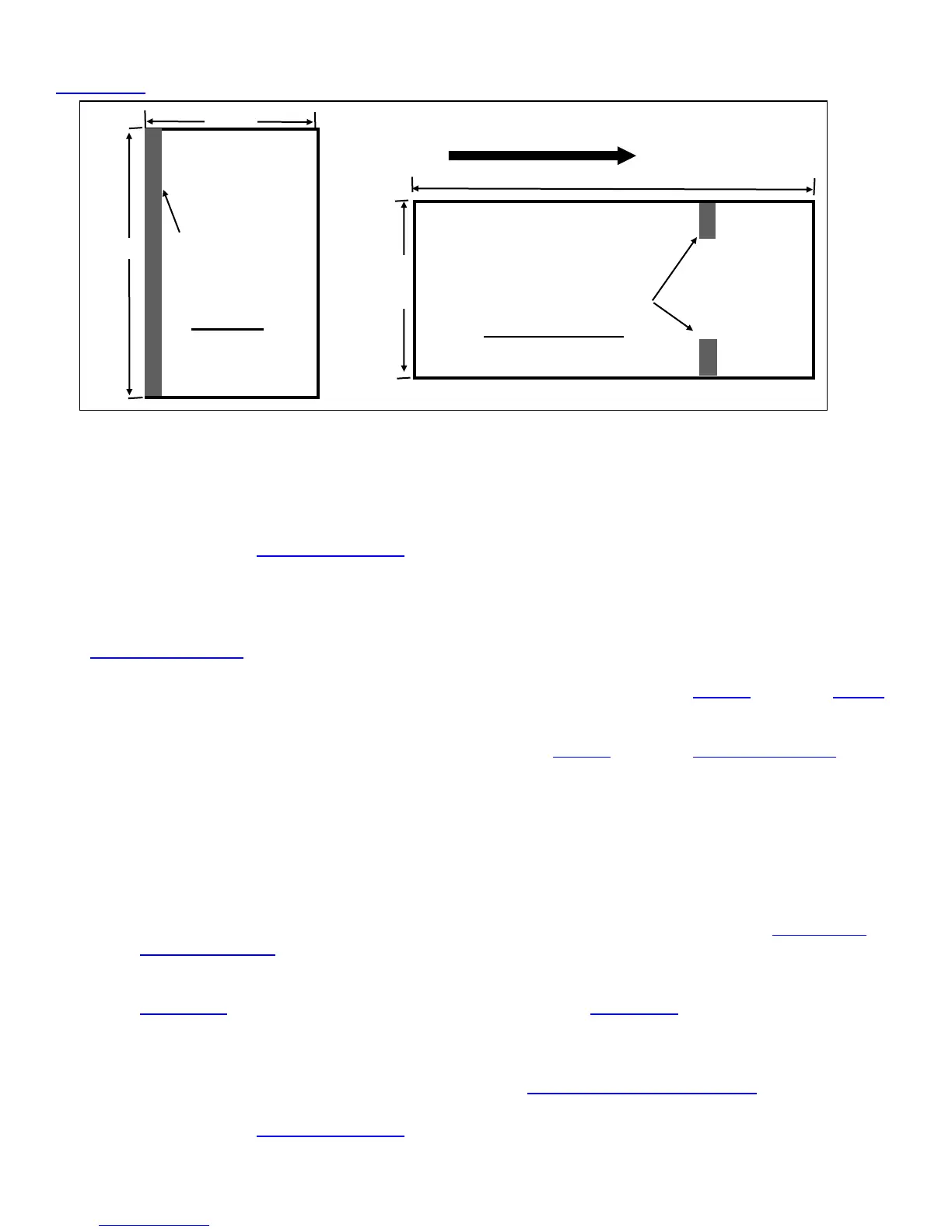

Two typical ticket formats and feed directions are shown below. The black timing mark must be facing the
opto sensor.
When loading 5.50” long ticket stock the black timing mark should be closest to the leading edge of
the ticket (the first part that goes into the printer).When loading 2.0”” long cinema ticket stock the
black timing mark should be furthest away from to the leading edge of the ticket (the first part that
goes into the printer).
Click here to return to > Table of Contents
6.0 Configuration
The Lemur series printer is factory configured for a variety of customer requirements.
For a comparison of the different electronics packages, refer to the BOCA Systems website under the BASIC
section.
For a listing of configuration choices, refer to the BOCA Systems website under the SPECIFICATIONS
section.
Printers are configured with a reverse adjustable paper guide (RADJW) set to the customer’s specified width
or optional adjustable paper guide (ADJ4, ADJW, ADJ2 & RADJ4).
Reverse adjustable (RADJW & RADJ4) path printer is set to the customer’s specified width. If this setting
requires changing then the following will need to be done to ensure proper operation.
1. The paper path slider bar needs to be adjusted for the width stock being used (see 9.1.4 Ticket
Width Adjustment).
2. The SPECIAL HEAD setting needs to be changed to match the width stock being used (see section
Appendix A). For those printers without a LCD display see Appendix H.
Adjustable (ADJ4, ADJW & ADJ2) paper path printer may leave the factory with the slider bar set to its widest
setting (ADJ4 = 4”, ADJW = 3.25” & ADJ2 = 2”). Please check to make sure the paper path slider bar is
properly adjusted for the width stock being used. (see section 9.1.4 Ticket Width Adjustment)
Click here to return to > Table of Contents
2.0”
3.25”
2.0”
or
3.25”
5.50”
Black Mark
Underside
of Ticket
Cinema
Ticket
Black Mark Underside
of Ticket
Standard Ticket
Feed Direction
