14.2 Relay option board
This option board does not require any software programming.

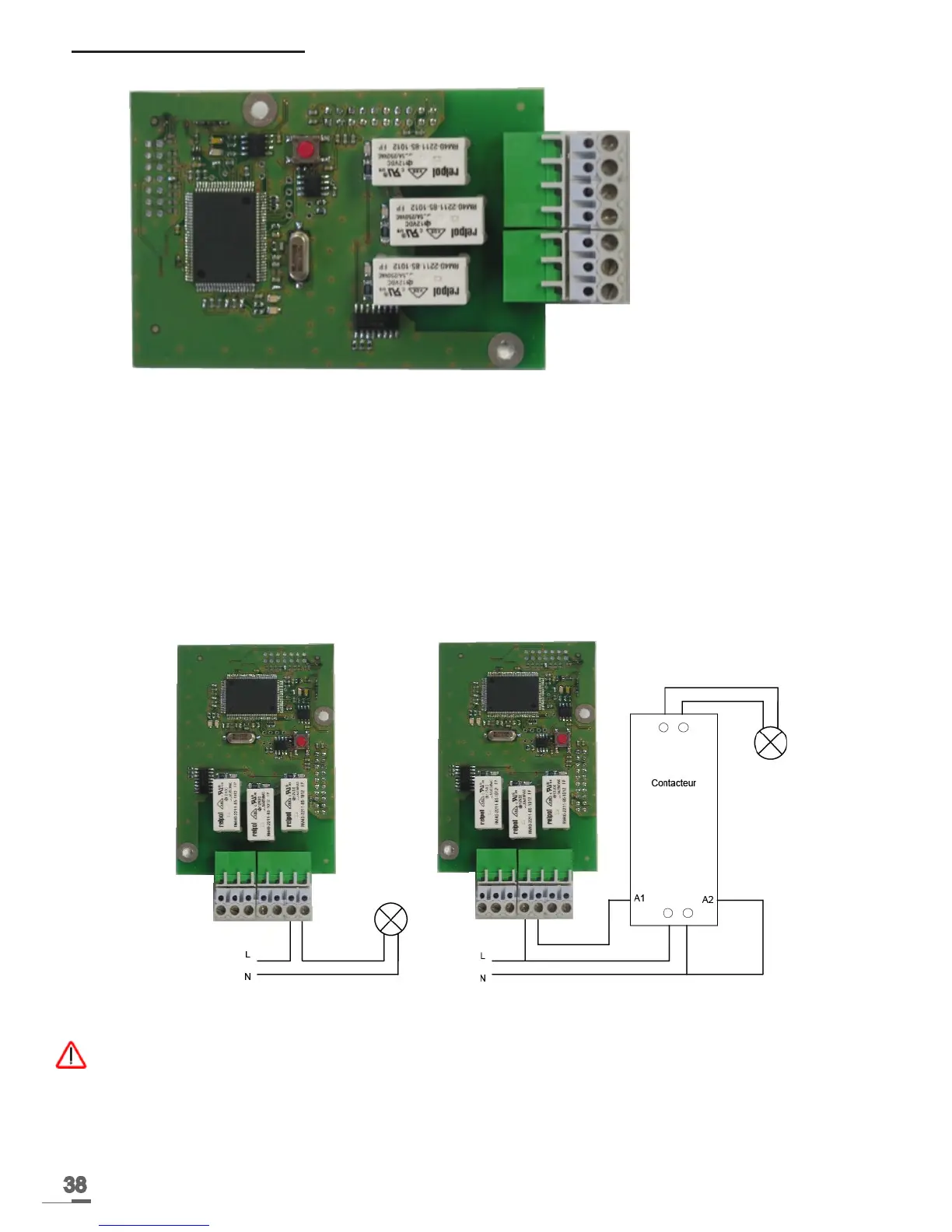

It allows 3 relays to be added.
See the technician menu (circuit setting programming) on page 26.
Please note: in the time output management menu of the technician menu, “DEL” mode is used
only to uninstall the option board from the master clock.
Examples of wiring
For relay circuits provide protection by disconnecting the fuse or circuit breaker maximum 4A.
Please indicate on the terminal label the location of these protections.
C
T Circuit C1
C
T Circuit C2
C
R Circuit C3
T
