3.3 POSITIONING AND INSTALLATION
The UPS must be installed in a clean and dry room, preferably not dusty. The User
must ensure that there is enough air exchange in the room so that the equipment can
be adequately cooled; if this is not guaranteed, the room must be adequately aired.
If the UPS contains the batteries internally (B8000 10-15-20kVA) the air exchange
with the external ambient will have to be according to EN 62040 -1, annex N.
3.3.1 Base plan, static load and weights

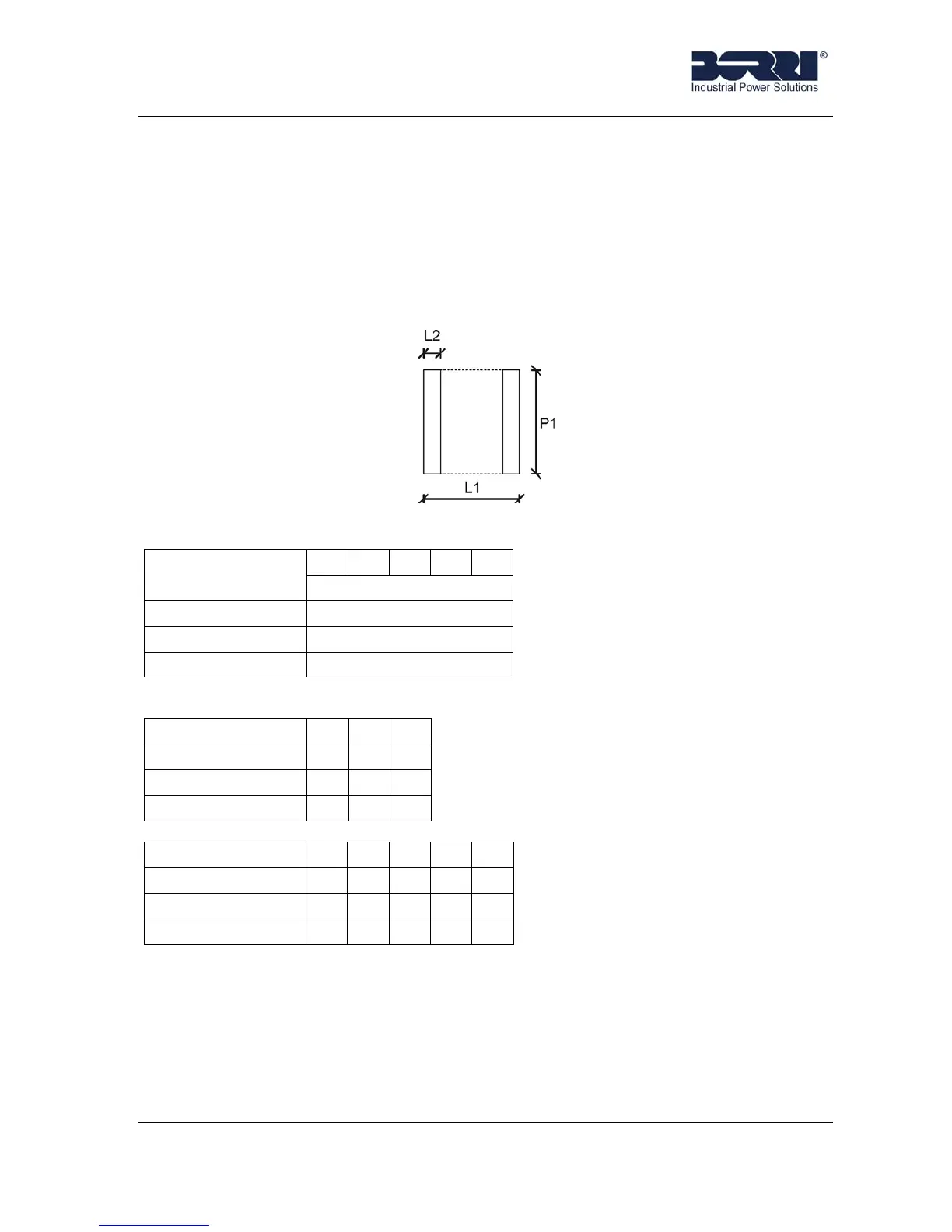

Picture 7 – Base plan
10 15 20 30 40
UPS (kVA)
B8000
B8031/B8033
L1 – mm 450
P1 – mm 650
L2 – mm -
B8031 ( kVA) 10 15 20
Weight w/o battery – kg 90 100 100
Weight with battery – kg 250 260 260
Static load – kg/m
2
840 890 890
B8033 ( kVA) 10 15 20 30 40
Weight w/o battery – kg 90 100 100 141 141
Weight with battery – kg 250 260 260 - -
Static load – kg/m
2
840 890 890 483 483
