3.7.3 Connections
The following picture shows the electrical connection between the UPS and the
external battery cabinet.

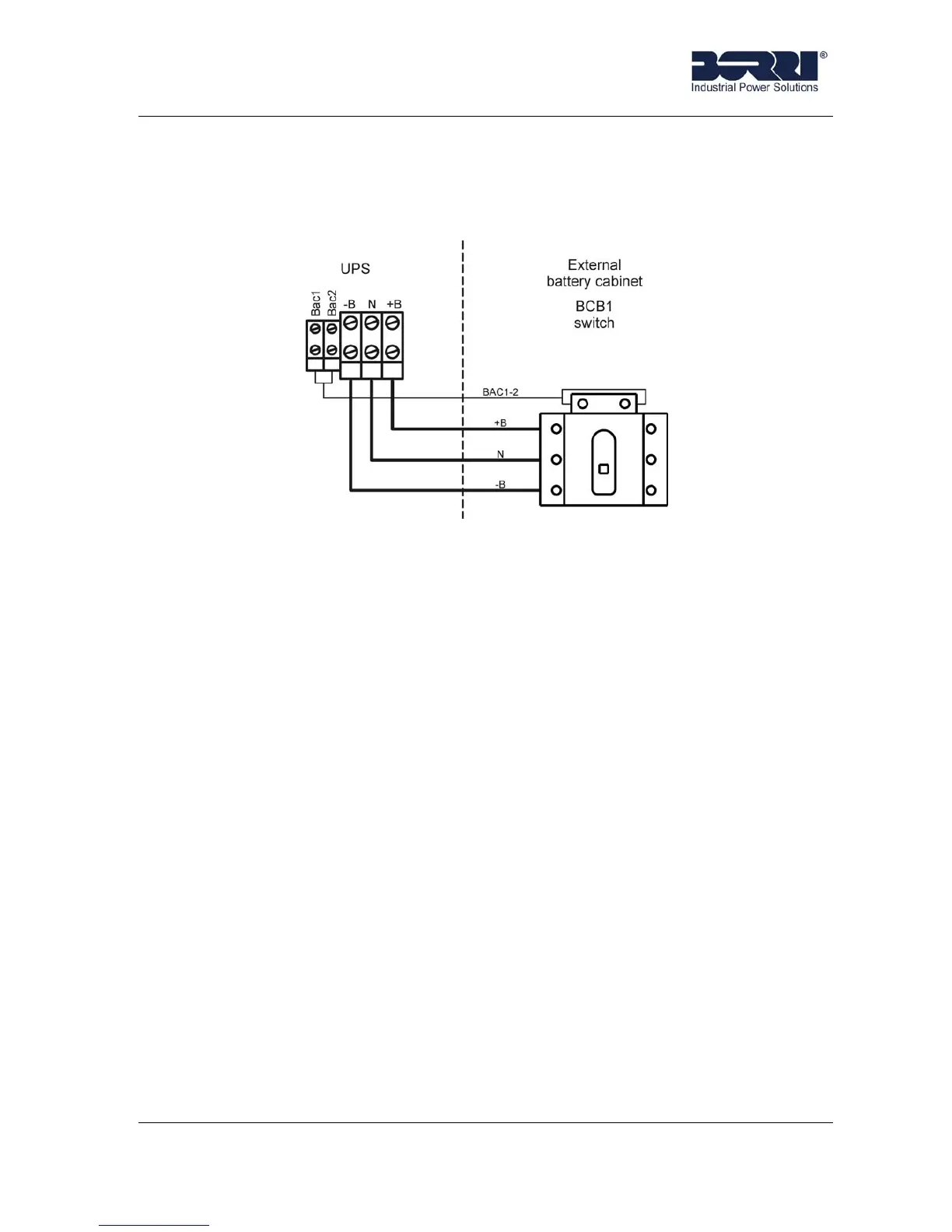

Picture 26 – Battery cabinet and UPS connections
For the connection above mentioned you can use the cables supplied in the battery
cabinet.
