3.7.1 Dimensions and weights
The dimensions and weights of the external battery cabinet are indicates here under.

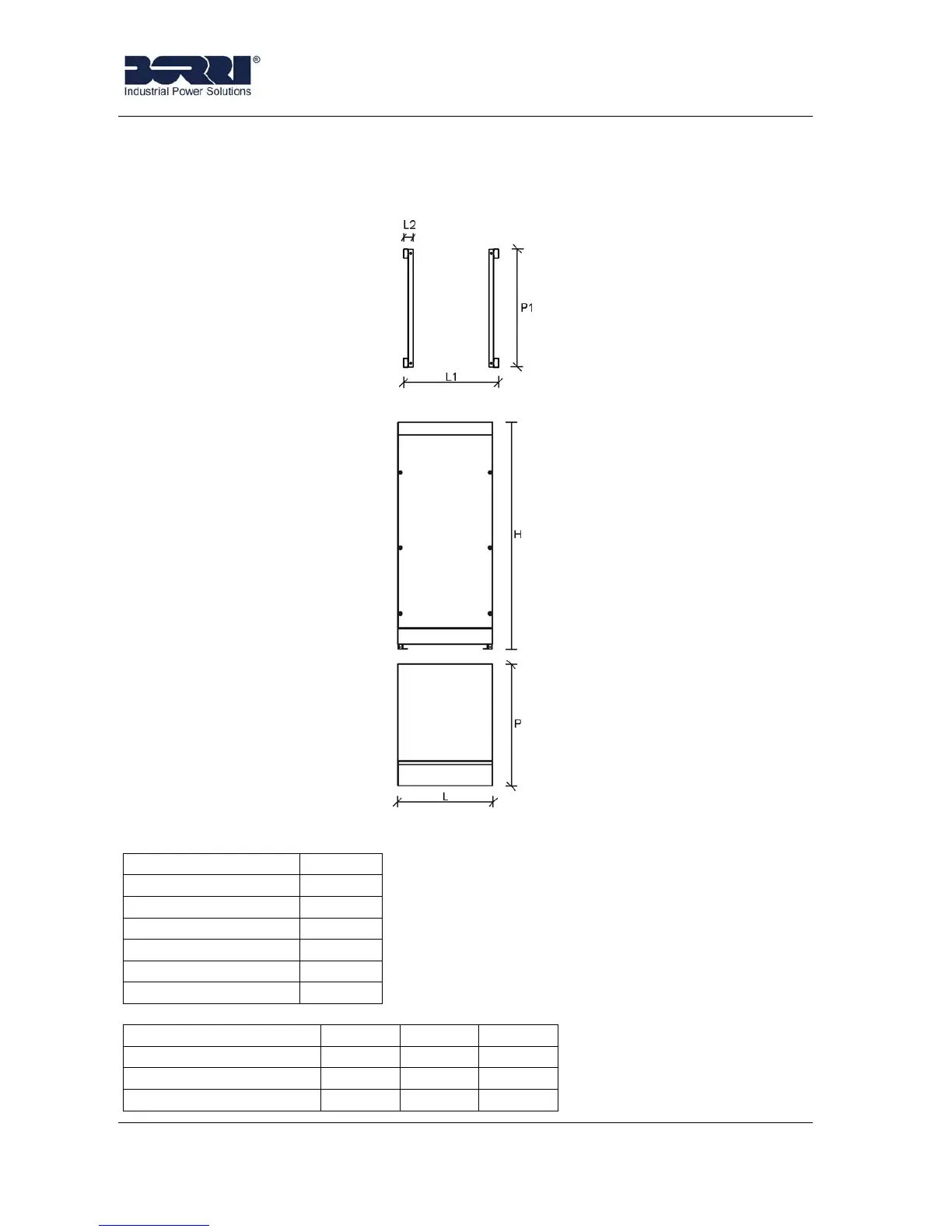

Picture 20 – Base plan of the external battery cabinet
Picture 21 – Dimensions of the external battery cabinet
CABINET AS553
L – mm 500
P – mm 650
H – mm 1200
L1 – mm 500
P1 – mm 625
L2 – mm 50
CABINET 7Ah 9Ah 12Ah
Weight w/o battery – kg 86 86 86
Weight with battery – kg 395 413 580
Static load with battery – kg/m
2
1264 1321 1856
