Borri B8031 - External Battery Cabinet Connections; Connecting Battery Cabinet to UPS

Ups general description & installation
Rev.D JSE410920 22/07/08 JUD408311
25 of 31
WARNING
After the battery installation, before closing BCB, check the voltage polarity in the top
and bottom of the BCB circuit breaker.

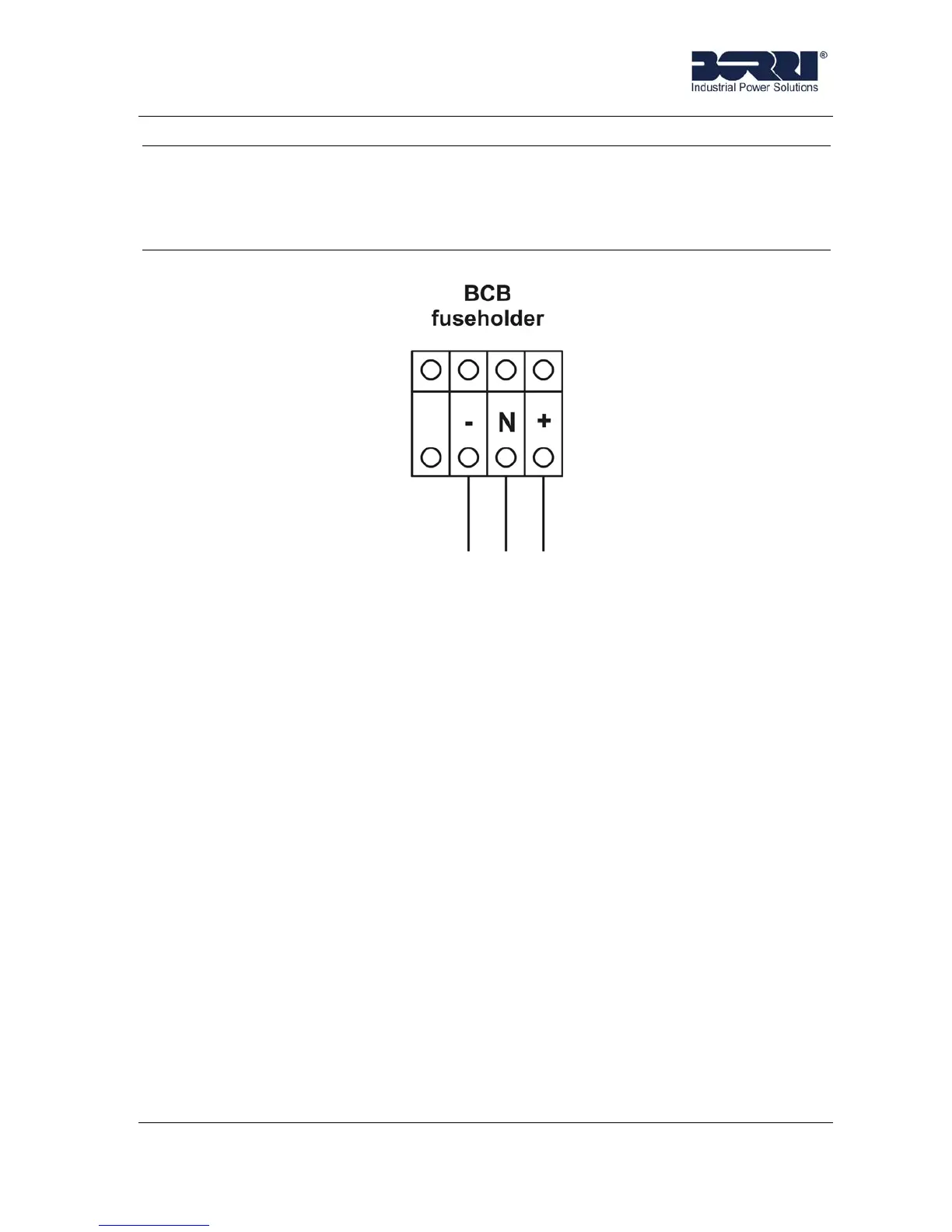

In case of not directly supplied cabling, please connect the cables to the battery
breaker as shown in the below picture.
Picture 18 – Cabling of BCB fuse holder
