3.3.2 Dimensions and distances

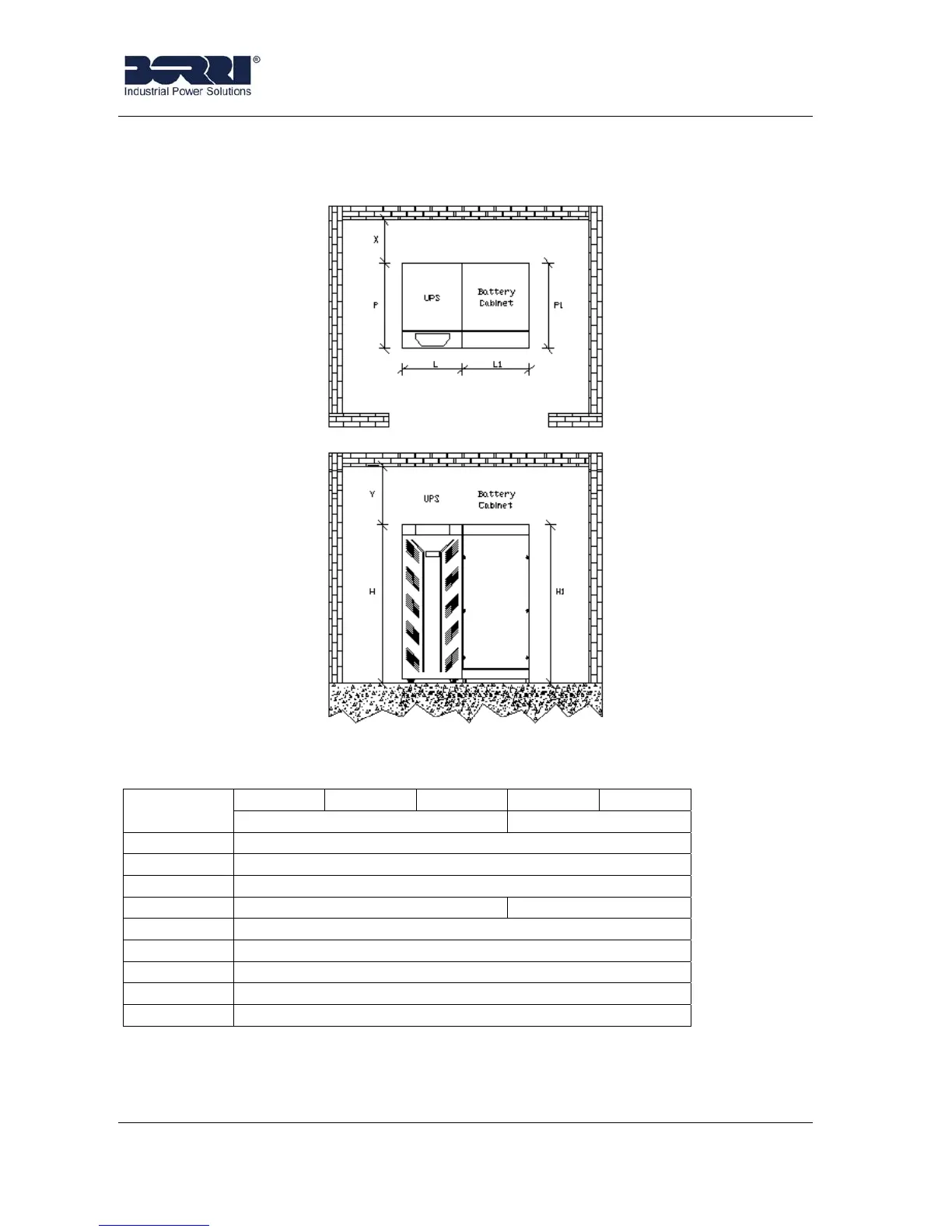

Picture 8 – Dimensions and distances from the walls
10 15 20 30 40
UPS (kVA)
B8031/B8033 B8033
L – mm 450
P – mm 650
H – mm 1200
X (min.) – mm 50 100
Y (min.) – mm 500
ADD. CABINET AS553
L1 – mm 500
P1 – mm 650
H1 – mm 1200
