Borri B8031 - Fuses Positioning Bcb - B8000 10-15-20 Kva; Picture 19 - Fuses Positioning on the Fuseholder BCB

Ups general description & installation
26 of 31
JUD408311 Rev.D JSE410920 22/07
/
08
3.6 FUSES POSITIONING BCB – B8000 10-15-20KVA
After that the battery is correctly connected, insert the fuses and the neutral tube on
the fuseholder (BCB), as shown in the picture 19.

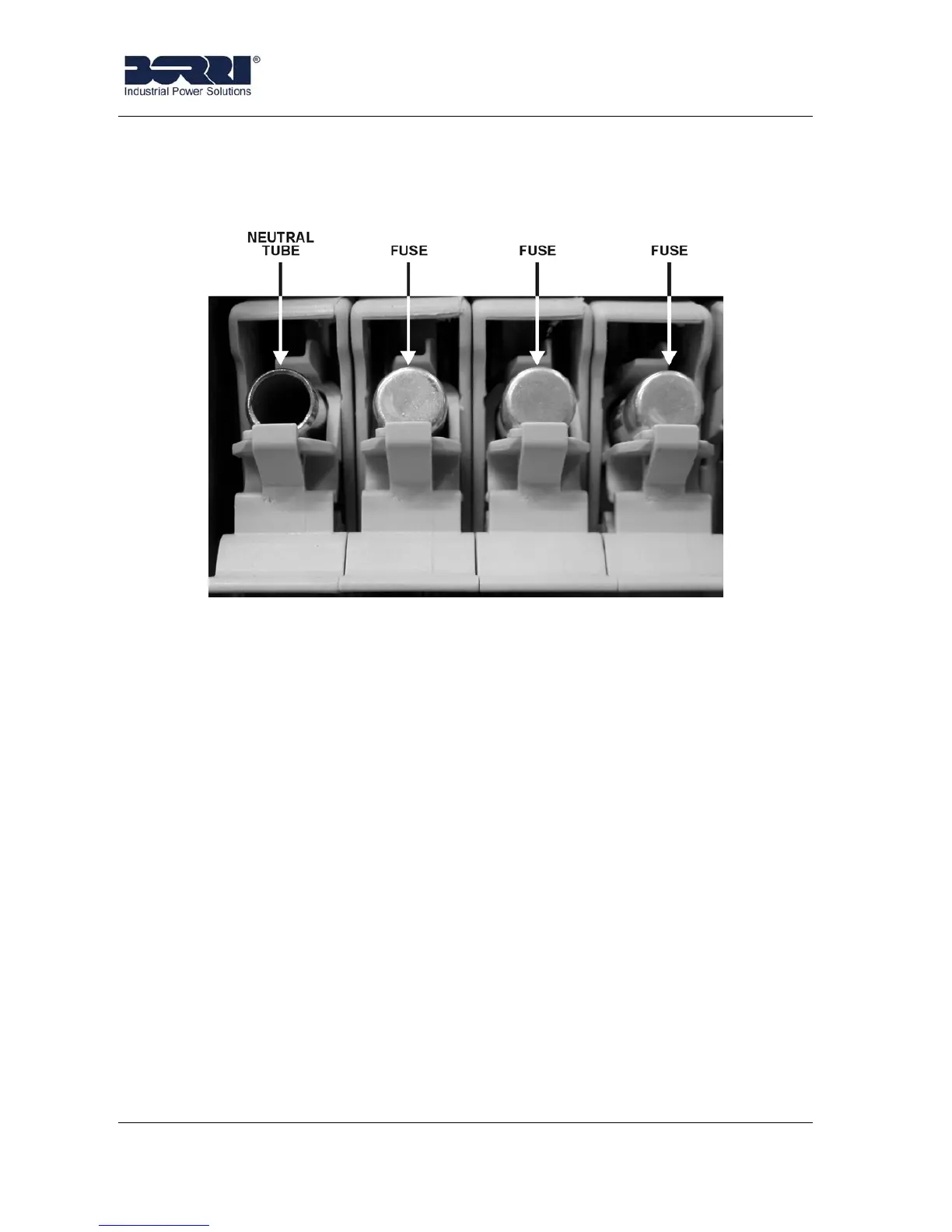

Picture 19 – Fuses positioning on the fuseholder BCB
