Ups general description & installation

30 of 31

JUD408311 Rev.D JSE410920 22/07

4) After the connection re-insert the battery trays as shown in picture 24.

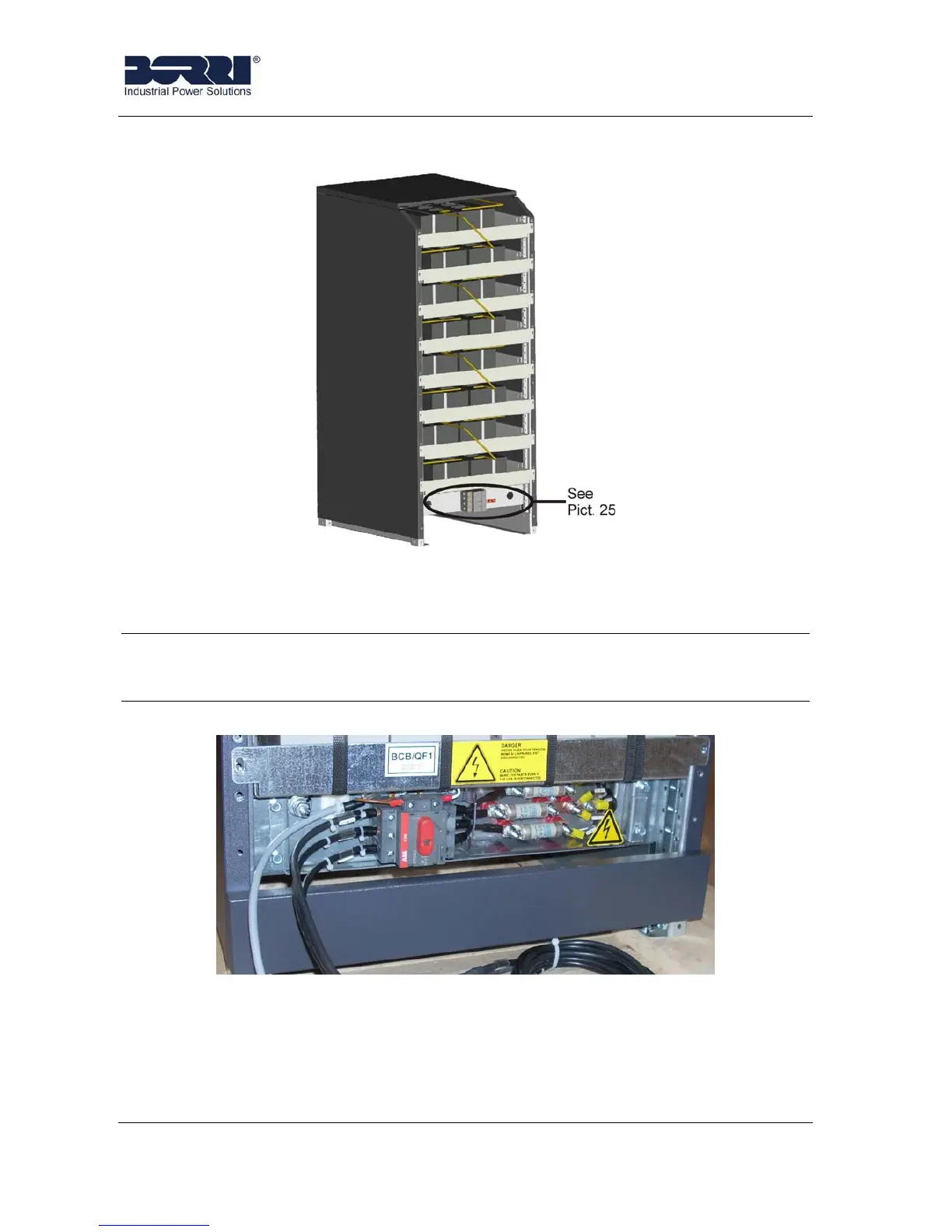

Picture 24 – 7Ah/9Ah/12Ah battery connected

Put back and fix the front cover with the six screws.

WARNING

After the connection of the batteries, connect battery cabinet to the UPS as

indicated on 3.7.3 paragraph before to close BCB.

Picture 25 – Battery circuit breaker and fuses
