Borri B8031 - Terminal Board

Ups general description & installation
16 of 31
JUD408311 Rev.D JSE410920 22/07
/
08
B8033 UPS (kVA) 10 15 20 30 40
Rectifier 3x25 3x32 3x32 3x70 3x70
Input fuses (A)
Bypass - - - - -
Rectifier 4x6 4x6 4x10 4x25 4x25
Input cables (mm
2
)
Bypass - - - - -
Output cables (mm
2
)
4x6 4x6 4x10 4x25 4x25
Battery cables (mm
2
)
3x6 3x6 3x6 3x16 3x16
3.4.1 Terminal board

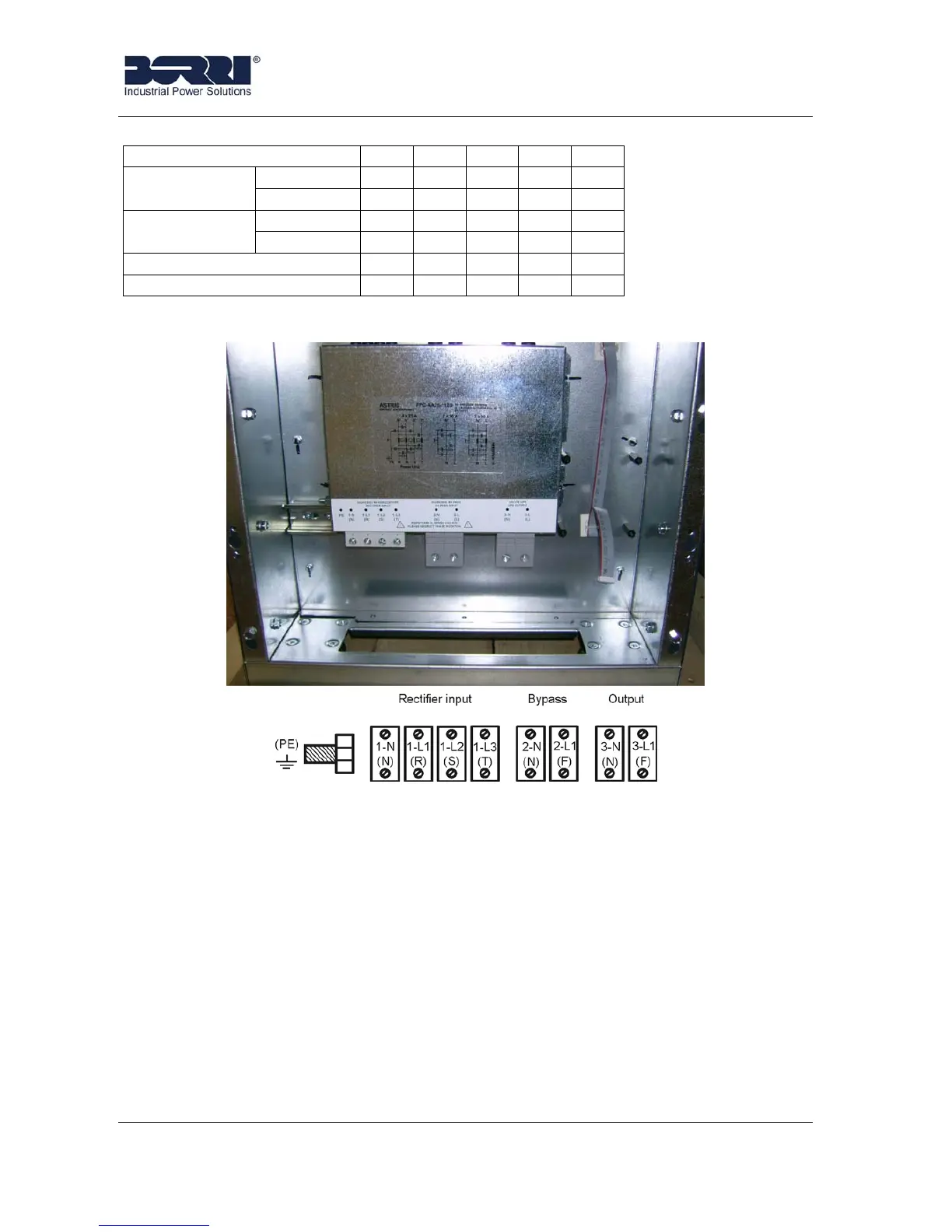

Picture 9 – Terminal board B8031 10-15-20kVA
