Ups general description & installation
Rev.D JSE410920 22/07/08 JUD408311
19 of 31
3.5.1 Battery connection and positioning
3.5.1.1 3,3Ah 12V battery connection and positioning – B8000 10kVA
1) Remove the four screws to open the front cover and access the battery trays.
2) Remove the cardboard cover protection from the batteries, see picture 12.

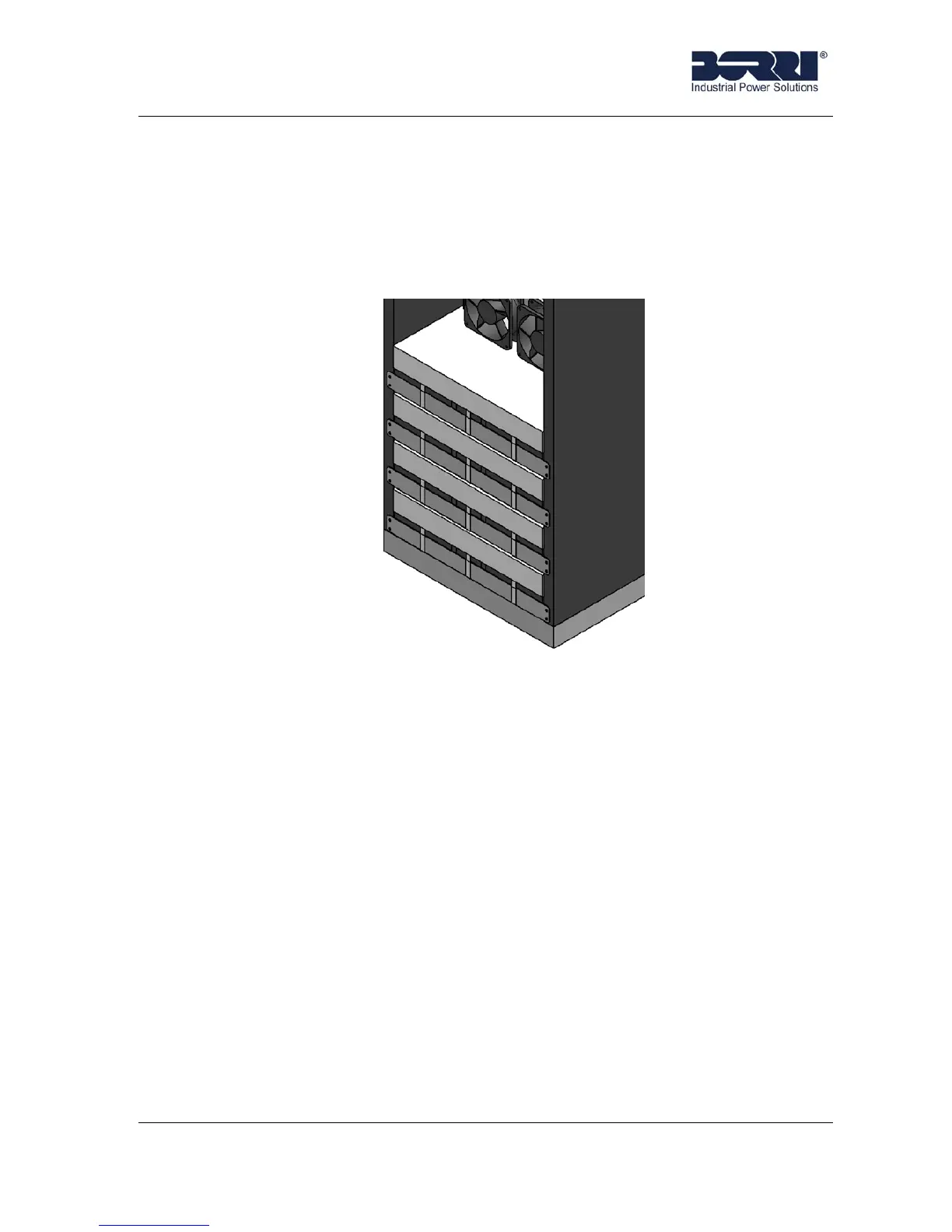

Picture 12 – Cardboard 3,3Ah battery protection
